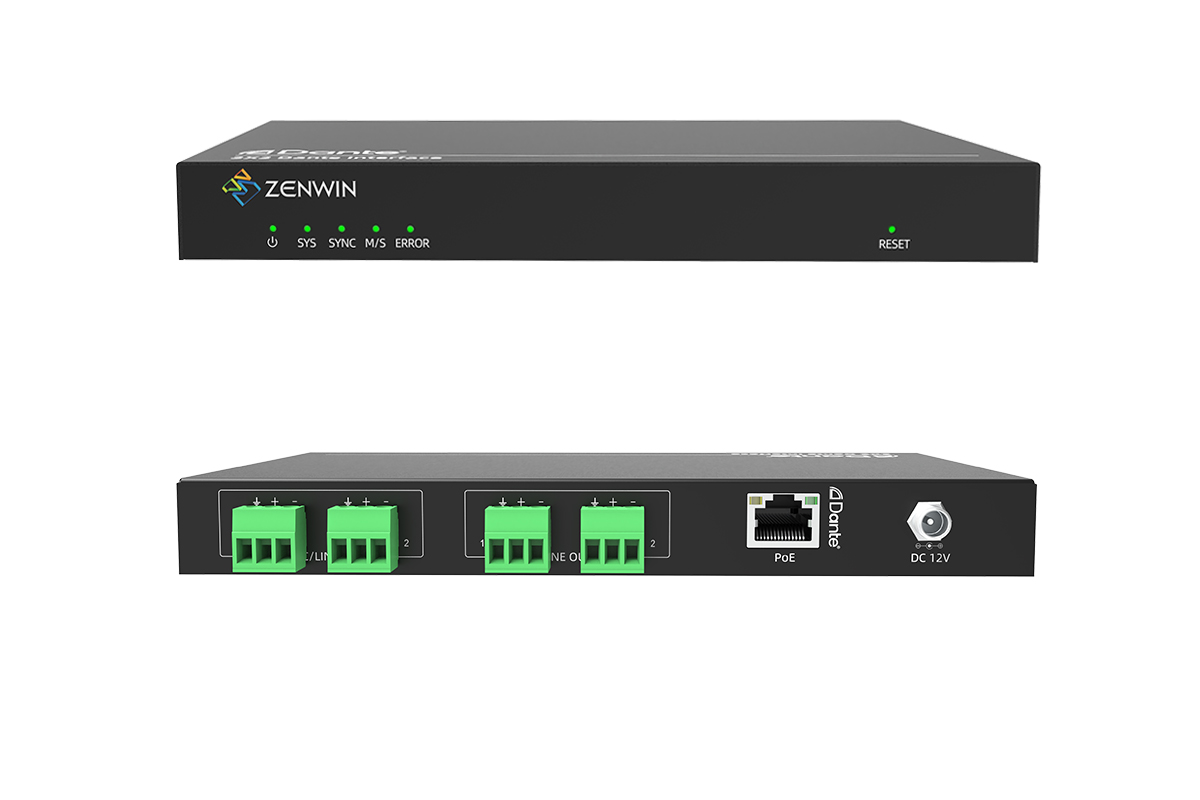

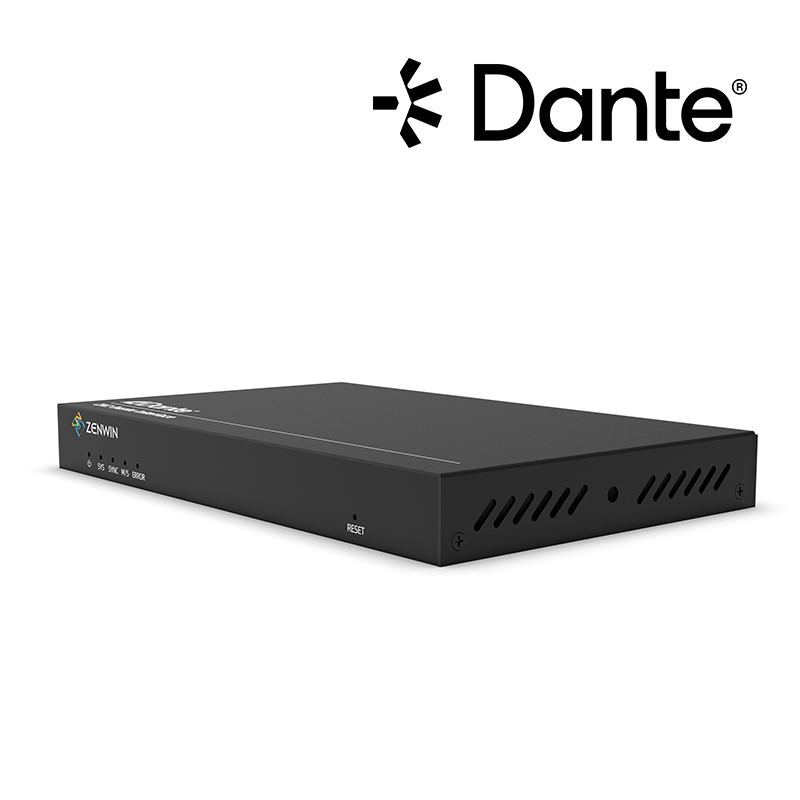

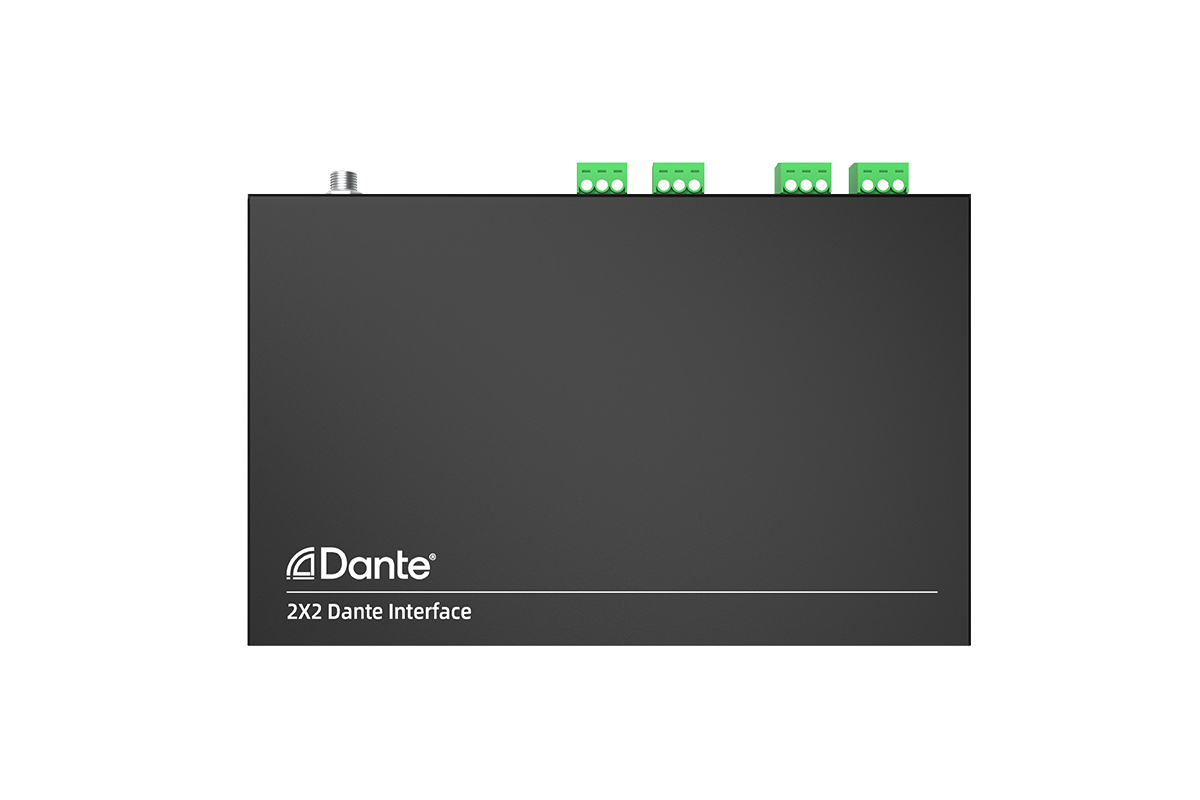

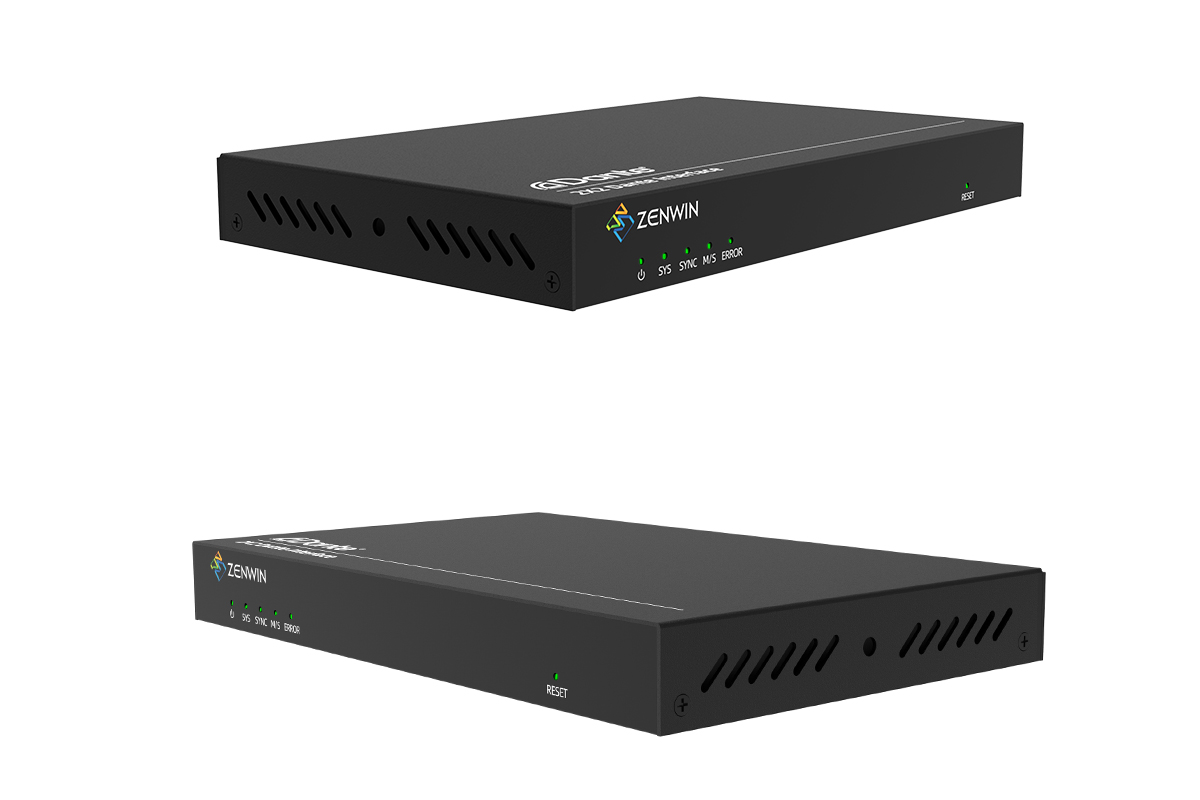

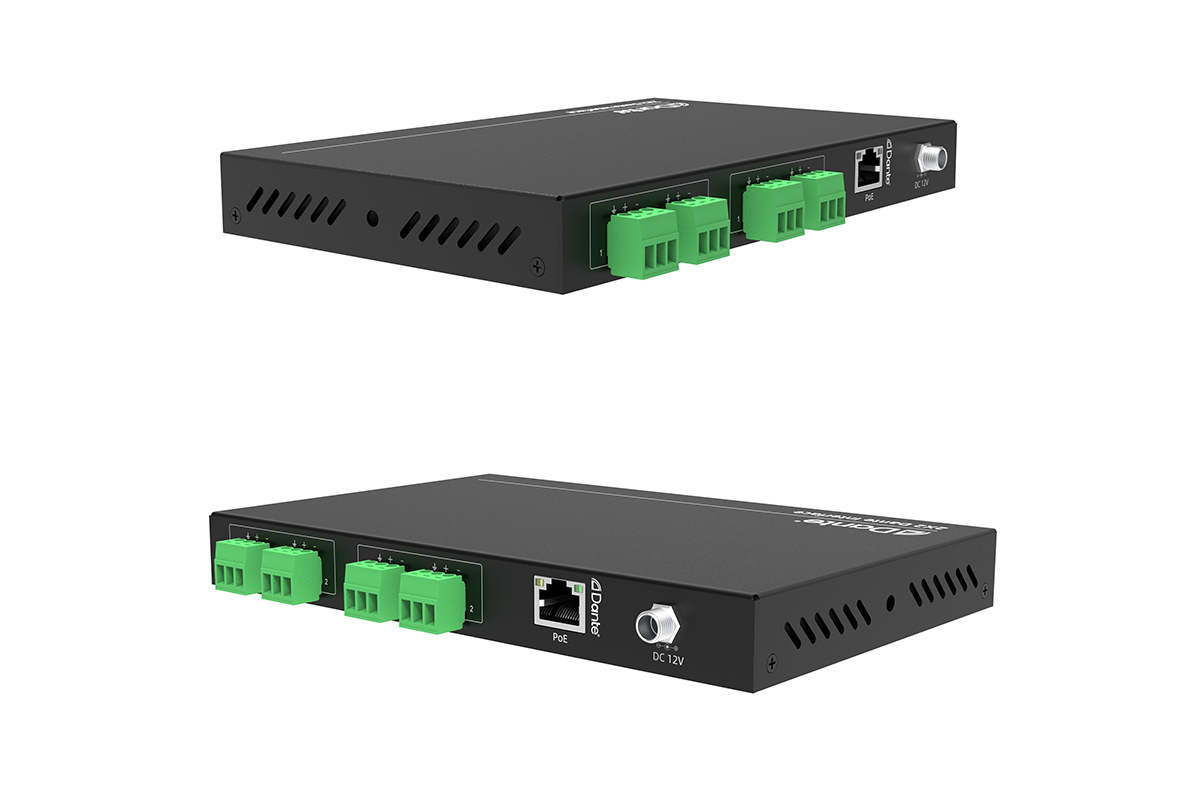

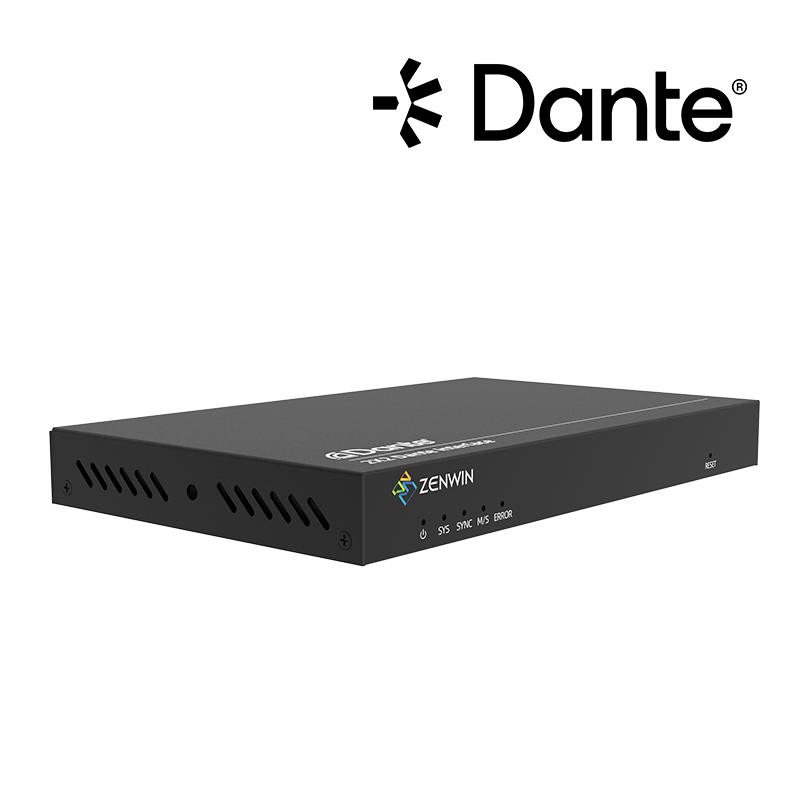

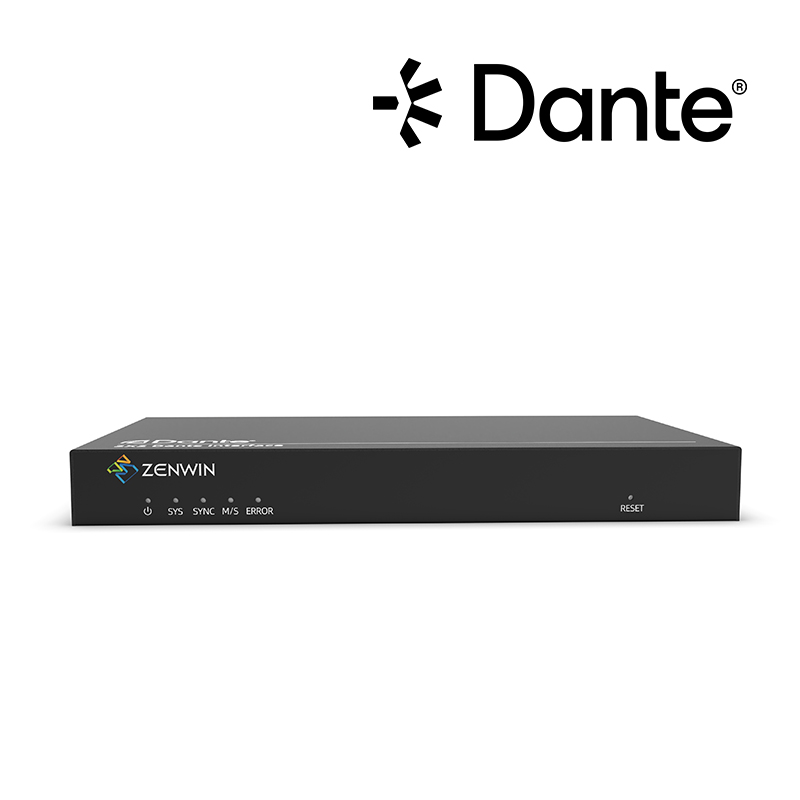

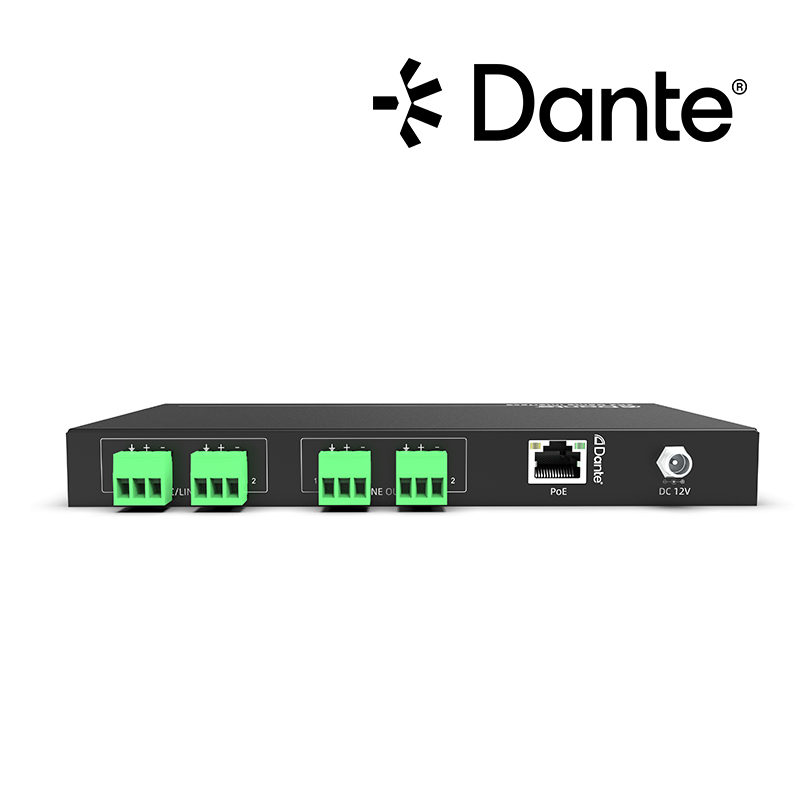

2×2 Dante Interface ZW-B202

sketch：

The 2×2 Dante Interface ZW-B202 is a Dante network audio interface enabling users to integrate up to 2×2 Dante audio channels into networked audiovisual systems, with each input featuring a 48V phantom power option. It also supports PoE (IEEE 802.3af) power functionality and features a compact form factor, enabling effortless placement of Dante connections wherever required. This allows positioning close to audio sources or receivers, thereby eliminating the need for costly and interference-prone analogue cabling.

overview Function and characteristic Technical Parameter

The 2×2 Dante Interface ZW-B202 is a Dante network audio interface enabling users to integrate up to 2×2 Dante audio channels into networked audiovisual systems, with each input featuring a 48V phantom power option. It also supports PoE (IEEE 802.3af) power functionality and features a compact form factor, enabling effortless placement of Dante connections wherever required. This allows positioning close to audio sources or receivers, thereby eliminating the need for costly and interference-prone analogue cabling.

Function and characteristic

Features：

1. 2 Analogue Inputs/Outputs with 3PIN terminal blocks for line/microphone levels.

2. Supports gain adjustment for each input within the range of 0 to +48dB.

3. Output volume control range: -60dB to 0dB.

4. Supports dual Ethernet ports for network data exchange.

5. 48V Phantom Power per input channel could be preset.

6. Dual Power (DC12V or PoE).

7. Supports 44.1k or 48k audio sampling rates.

8. Controllable via Dante Controller and Web UI.

9. Compatible with AES67.

Technical Parameter

Input
2 Mic Input/ Audio Input with 3PIN Terminal Blocks;

Phantom Power
48V, each input could be preset via software;

Output
2 Line Output with 3PIN Terminal Blocks;

Output Mode
Balanced circuit level, automatically mute when lost Dante signal;

Gain
Input

Output
-60~0dB, 1dB per step;

Max Level
Input

Output
+18dBu @ 0dB output gain;

Effective Input Noise
-119dB@ 48dB Gain;

Effective Output Noise
＜-79dBu@ 0dB Gain;

THD
＜0.05%;

Sample Rate
44.1kHz or 48kHz;

Control Port
1 Dante Network;

Control Connector
1 RJ45;

Power Supply
DC12V 1A or PoE(IEEE802.3af);

Working Temperature
-10°C~+55°C;

Storage Temperature
-25°C~+70°C;

Relative Humility
10%-90%;

Dimensions(W×H×D)
185×115×22mm;

Net Weight
500g;
