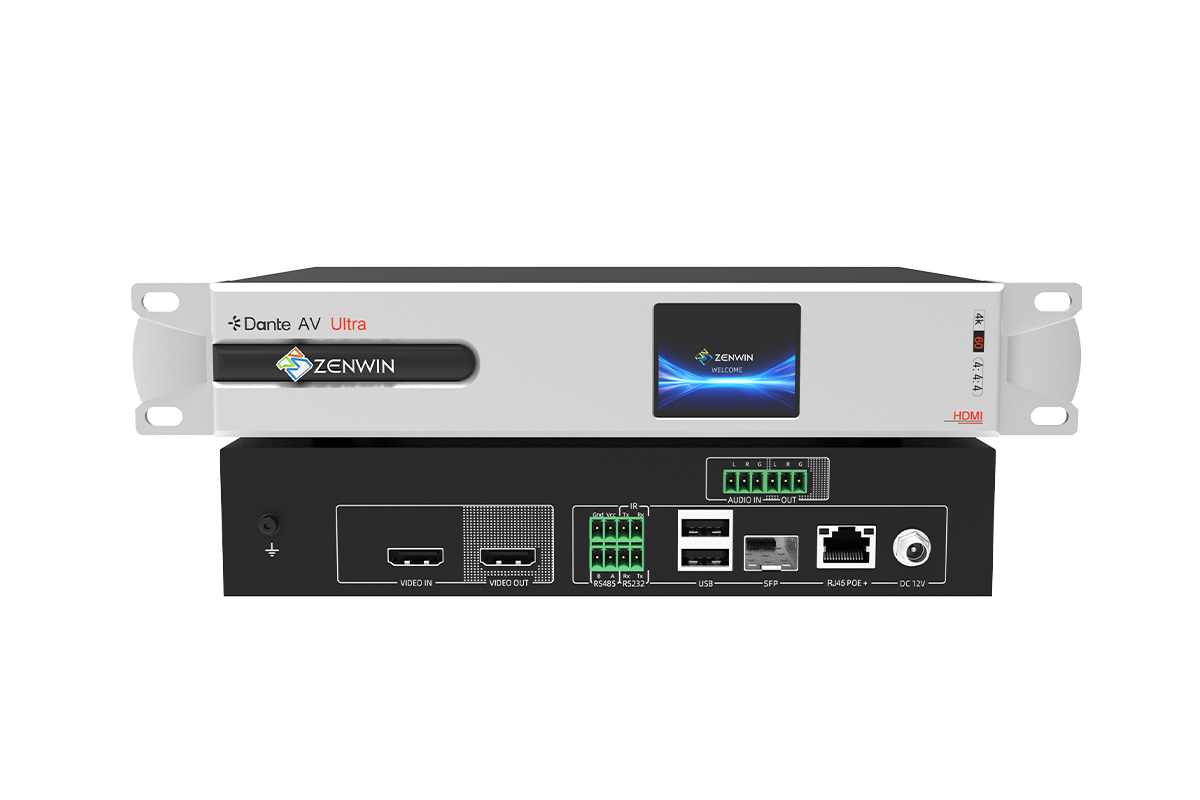

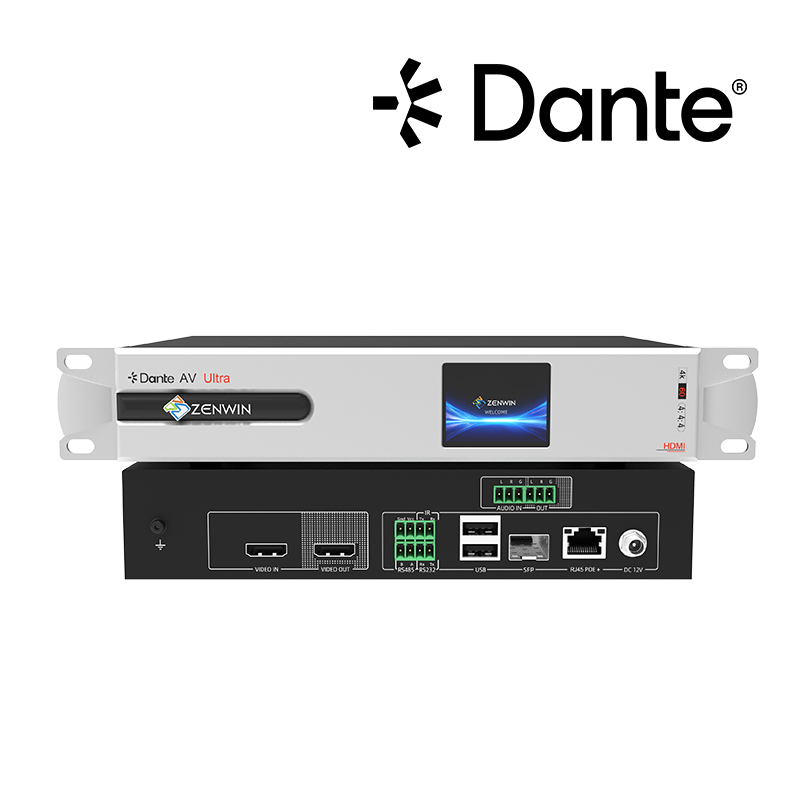

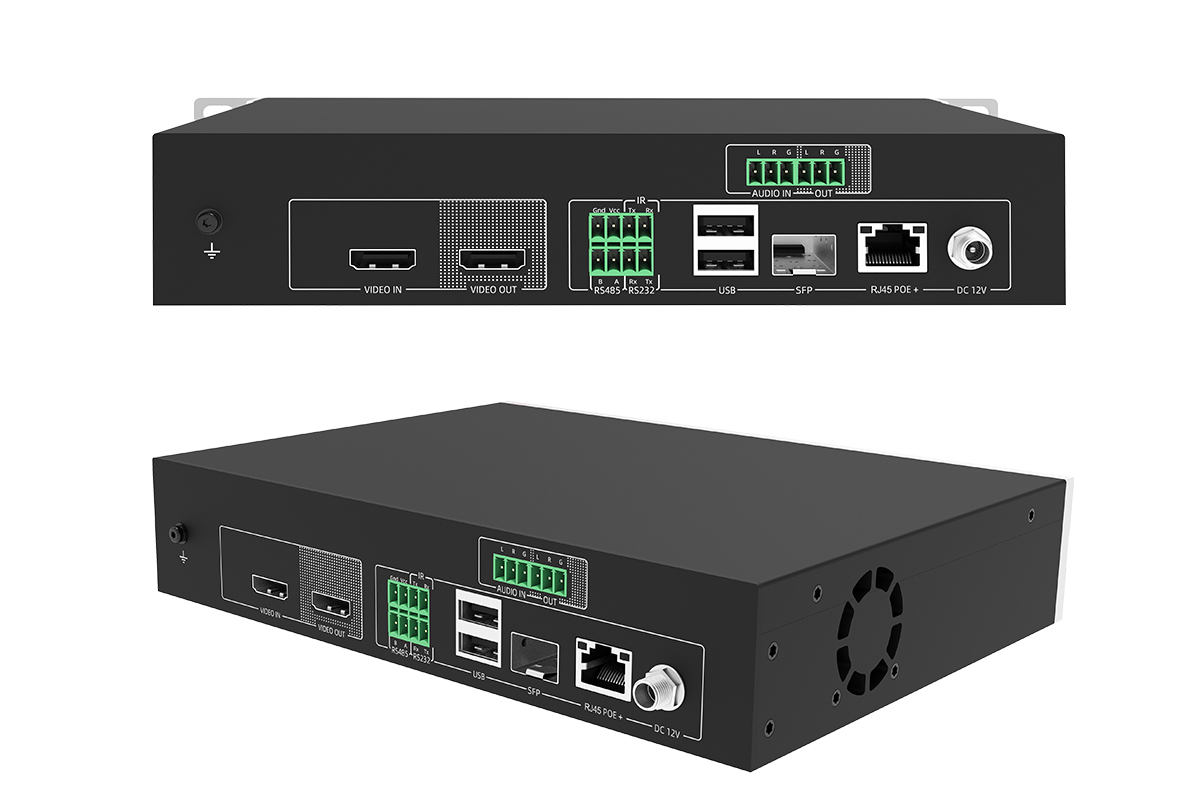

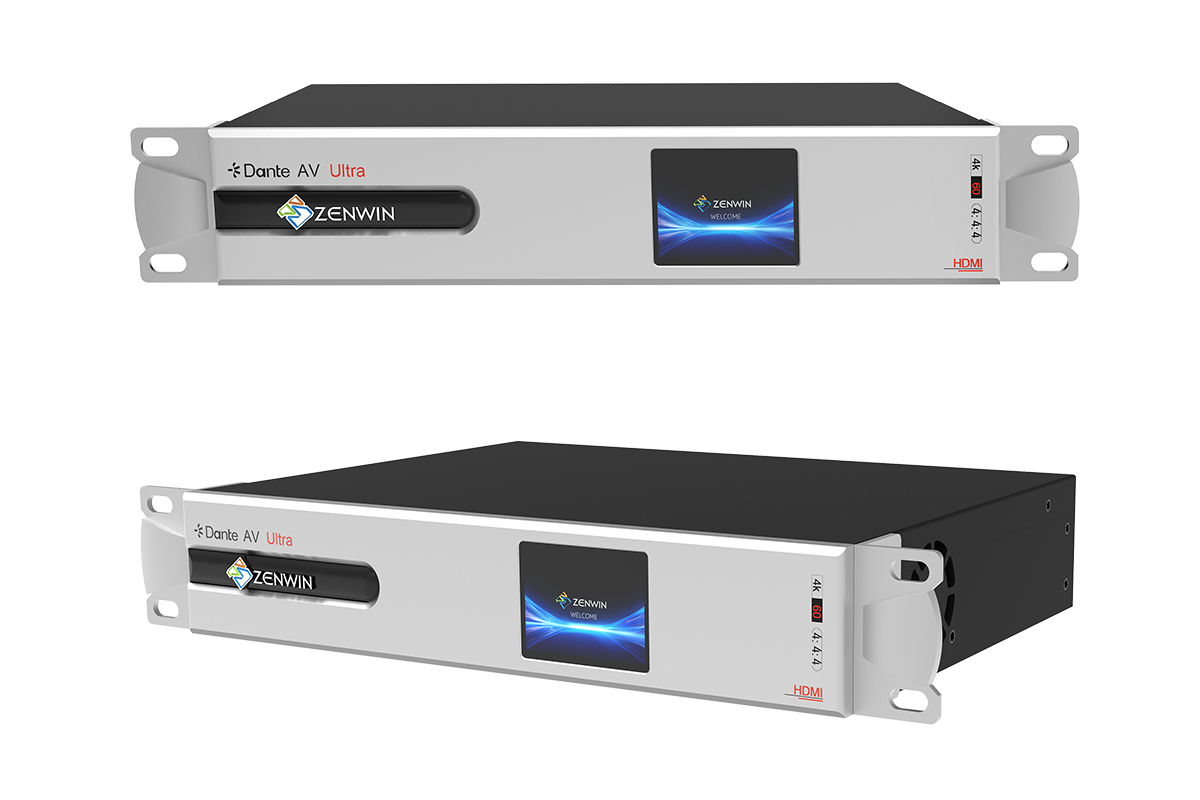

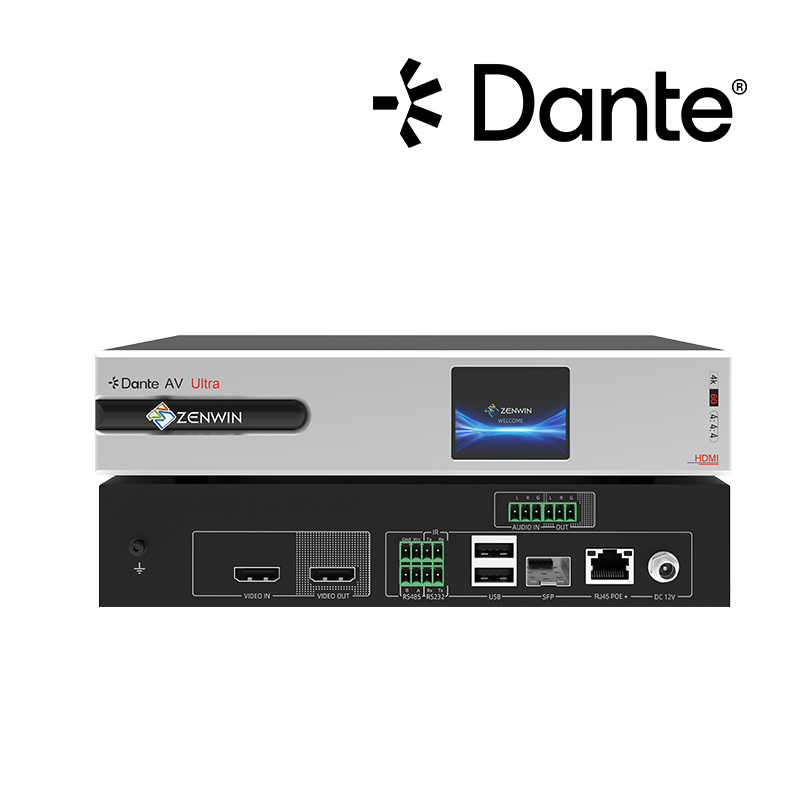

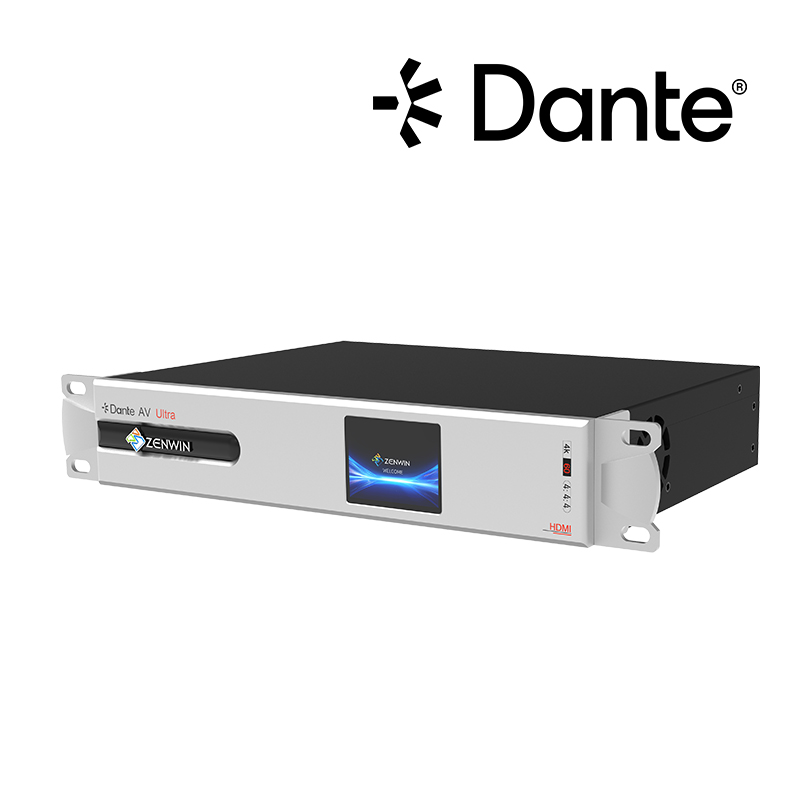

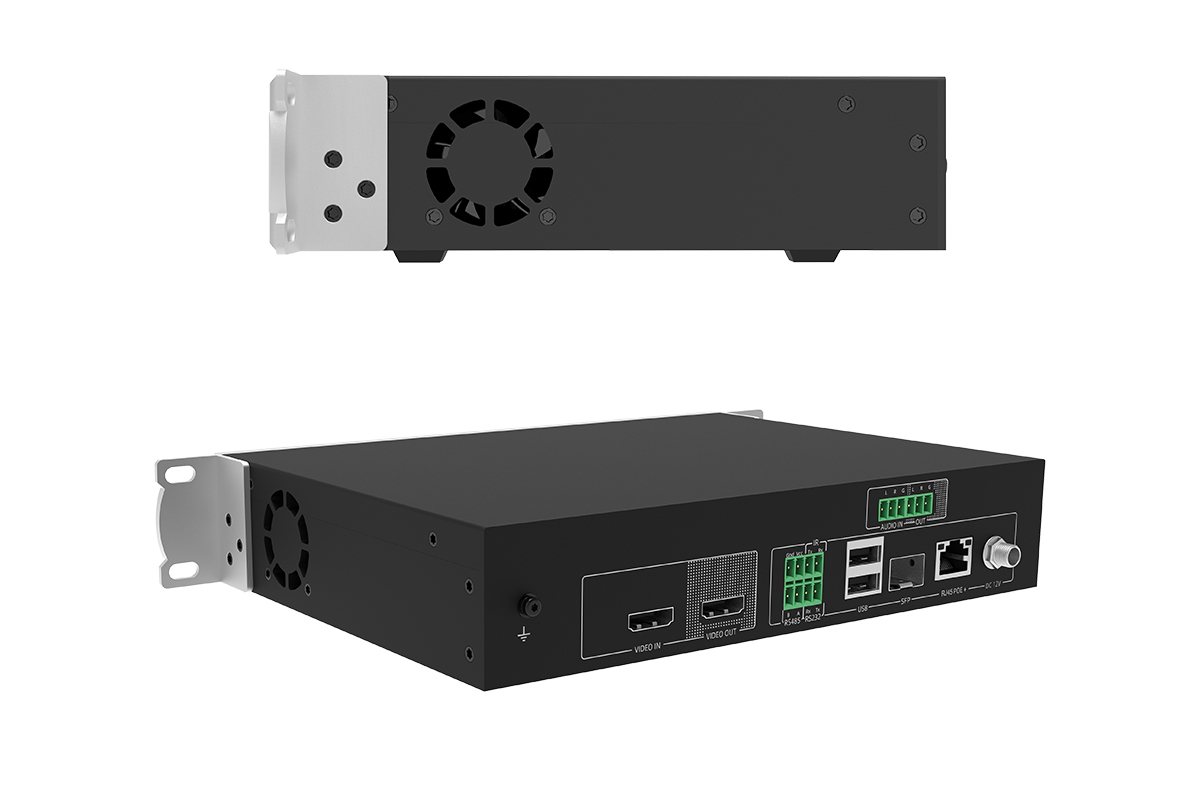

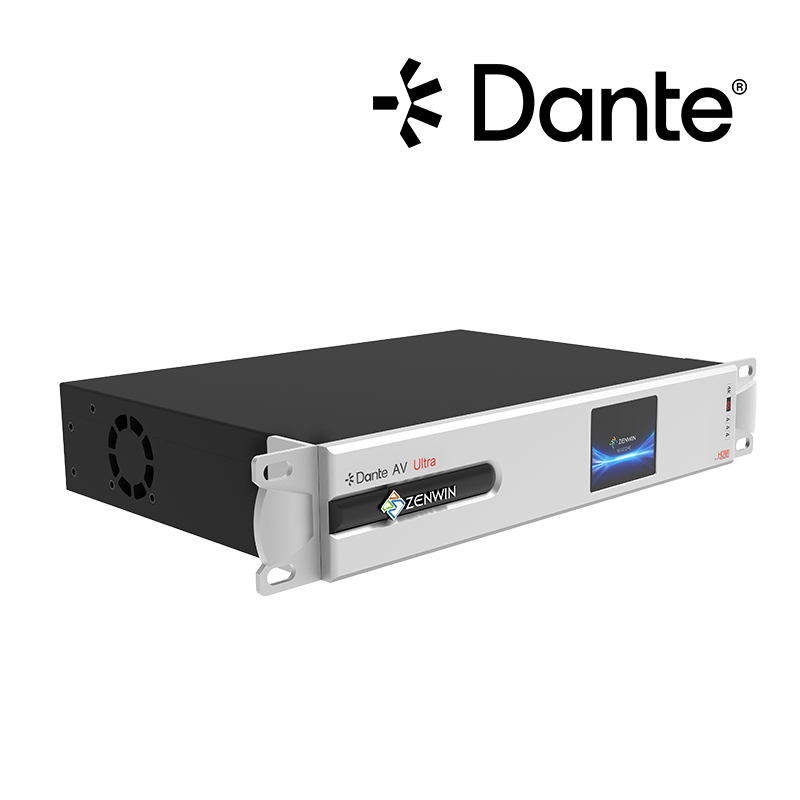

DANTE AV Series VPX-TH1/VPX-RH1

sketch：

Dante AV Ultra is a hardware based solution that provides 4K60 4:4:4 video encoding and decoding. It is a high-quality, low latency, visually lossless video and embedded software based solution.
AV-TH can convert 4K/UHD/2K/HD/VESA and HDMI to Dante AV Ultra signals, while AV-RH supports converting Dante AV Ultra signals to 4K/UHD/2K/HD/VESA and HDMI. This device provides unprecedented low latency and clock synchronization, ensuring perfect synchronization between on-site large screens (video) and external broadcasts (audio), and can route audio and video streams separately.
Transmitting Dante AV Ultra signals on a standard 1Gbps network can utilize existing network infrastructure and offers high cost-effectiveness;
The Dante AV solution is compatible with thousands of Dante supported audio products currently available;
Our advantage of using Audinate Dante Controller on Windows and macOS is the ability to put audio and video on the same platform and manage them uniformly through Dante Controller;
Easily control remote devices through USB HID, serial interface, infrared transmission, and IP control (IR);
Use Power over Ethernet POE+(25W 802.3at POE+) or DC power supply (12V 4A).

overview Function and characteristic Technical Parameter

Function and characteristic

Dante AV Ultra is a hardware based solution that provides 4K60 4:4:4 video encoding and decoding. It is a high-quality, low latency, visually lossless video and embedded software based solution.

AV-TH can convert 4K/UHD/2K/HD/VESA and HDMI to Dante AV Ultra signals, while AV-RH supports converting Dante AV Ultra signals to 4K/UHD/2K/HD/VESA and HDMI. This device provides unprecedented low latency and clock synchronization, ensuring perfect synchronization between on-site large screens (video) and external broadcasts (audio), and can route audio and video streams separately.

Transmitting Dante AV Ultra signals on a standard 1Gbps network can utilize existing network infrastructure and offers high cost-effectiveness;

The Dante AV solution is compatible with thousands of Dante supported audio products currently available;

Our advantage of using Audinate Dante Controller on Windows and macOS is the ability to put audio and video on the same platform and manage them uniformly through Dante Controller;

Easily control remote devices through USB HID, serial interface, infrared transmission, and IP control (IR);

Use Power over Ethernet POE+(25W 802.3at POE+) or DC power supply (12V 4A).

Simultaneously configure 1G Ethernet electrical port and 1G Ethernet optical port

※ Supports HDMI 2.0, supports 4K@60Hz 4:4:4

※ Supports 8-channel digital audio, up to 192KHz, 32-bit sampling

※ Supports 2-channel analog audio, up to 192KHz, 24bit sampling

※ Supports HDR10

※ Supports audio and video RS232、 Infrared and USB signals are individually or collectively routed and paired

※ Supports analog audio input and output

※ Supports bidirectional infrared transmission between TX and RX

※ Supports KVM function

※ Supports POE+power supply
