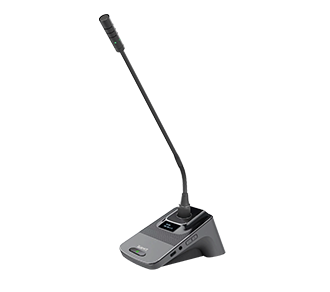

Wired conference microphone ZW-130
sketch:
Product specifications: 1. Equipped with a standard 3-pin XLR male connector port.
2. Equipped with a circular green indicator light for environmental protection.
3. The appearance of the microphone is slim and designed with a double goose neck shape, which can be flexibly adjusted.
4. Equipped with a built-in windproof sponge cover, it can reduce jet and other wind sounds during speech.
5. Simple mute function switch, allowing users to freely control their speech.
6. Super heart-shaped directional characteristics, excellent pickup effect.
7. Transformer coupled ultra-low impedance output, balanced audio output, smooth and clear sound quality.
8. The microphone rod is made of pure copper casting and combined with radio frequency interference (0RF) shielding technology, providing outstanding ability to prevent radio frequency interference
9. Frequency response: 80Hz-18KHz
10. Directionality: Super heart-shaped pointing
11. Sensitivity: -28dB at 1V to 1Pa
12. Impedance: 245 ohms
13. Maximum input sound pressure level: 125dB, 1KHz at 1% T H.D.
14. Dynamic range: 105dB, 1KHz at maximum sound pressure
15. Signal to noise ratio:>65dB, 1KHz to 1Pa
16. Power supply: DC11-52V phantom power supply, consumes 5mA (typical)
17. Output connection port: Built in 4-pin Canon male head
18. Switch: On/Off
overview Function and characteristic Technical Parameter
Product specifications: 1. Equipped with a standard 3-pin XLR male connector port.
2. Equipped with a circular green indicator light for environmental protection.
3. The appearance of the microphone is slim and designed with a double goose neck shape, which can be flexibly adjusted.
4. Equipped with a built-in windproof sponge cover, it can reduce jet and other wind sounds during speech.
5. Simple mute function switch, allowing users to freely control their speech.
6. Super heart-shaped directional characteristics, excellent pickup effect.
7. Transformer coupled ultra-low impedance output, balanced audio output, smooth and clear sound quality.
8. The microphone rod is made of pure copper casting and combined with radio frequency interference (0RF) shielding technology, providing outstanding ability to prevent radio frequency interference
9. Frequency response: 80Hz-18KHz
10. Directionality: Super heart-shaped pointing
11. Sensitivity: -28dB at 1V to 1Pa
12. Impedance: 245 ohms
13. Maximum input sound pressure level: 125dB, 1KHz at 1% T H.D.
14. Dynamic range: 105dB, 1KHz at maximum sound pressure
15. Signal to noise ratio:>65dB, 1KHz to 1Pa
16. Power supply: DC11-52V phantom power supply, consumes 5mA (typical)
17. Output connection port: Built in 4-pin Canon male head
18. Switch: On/Off
Function and characteristic

Product specifications: 1. Equipped with a standard 3-pin XLR male connector port.

2. Equipped with a circular green indicator light for environmental protection.

3. The appearance of the microphone is slim and designed with a double goose neck shape, which can be flexibly adjusted.

4. Equipped with a built-in windproof sponge cover, it can reduce jet and other wind sounds during speech.

5. Simple mute function switch, allowing users to freely control their speech.

6. Super heart-shaped directional characteristics, excellent pickup effect.

7. Transformer coupled ultra-low impedance output, balanced audio output, smooth and clear sound quality.

8. The microphone rod is made of pure copper casting and combined with radio frequency interference (0RF) shielding technology, providing outstanding ability to prevent radio frequency interference

9. Frequency response: 80Hz-18KHz

10. Directionality: Super heart-shaped pointing

11. Sensitivity: -28dB at 1V to 1Pa

12. Impedance: 245 ohms

13. Maximum input sound pressure level: 125dB, 1KHz at 1% T H.D.

14. Dynamic range: 105dB, 1KHz at maximum sound pressure

15. Signal to noise ratio:>65dB, 1KHz to 1Pa

16. Power supply: DC11-52V phantom power supply, consumes 5mA (typical)

17. Output connection port: Built in 4-pin Canon male head

18. Switch: On/Off


Technical Parameter
