Dante Dongle USB l/O

overview Function and characteristic Technical Parameter

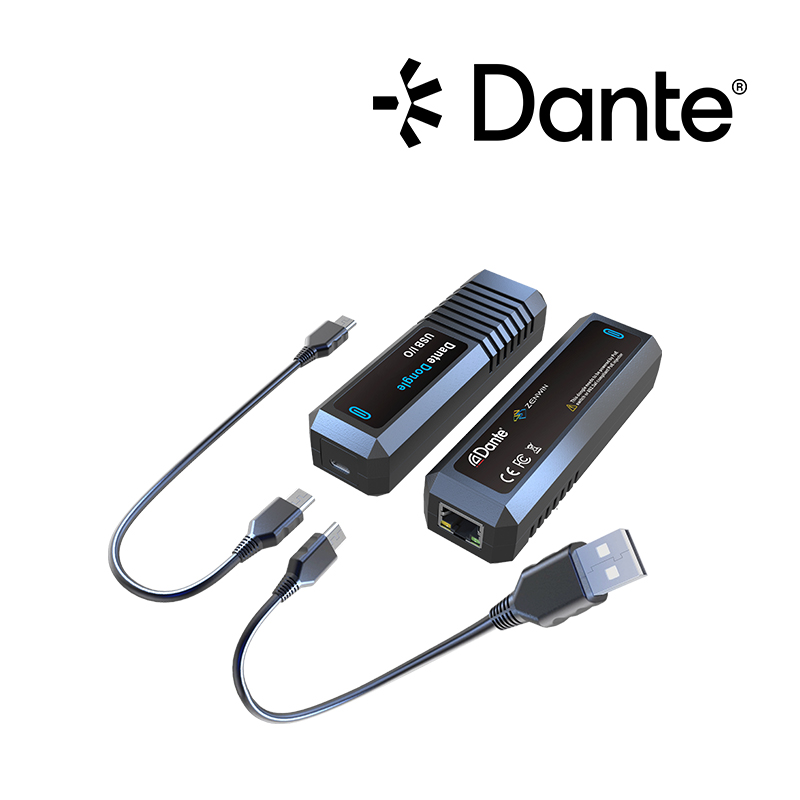

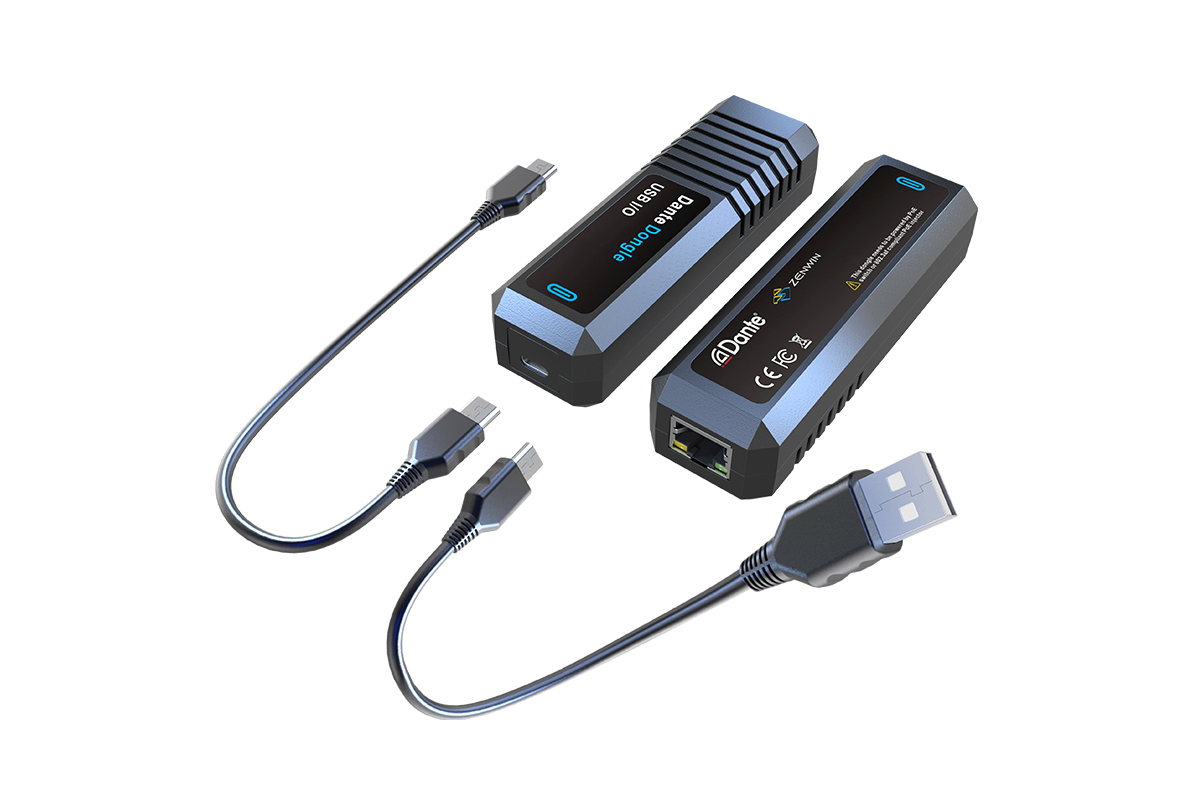

The Dante Dongle USB l/O ZW-D1, it connects to your Dante network and supports 2X2 channels of bidirectional audio, allowing PC and mobile device to play out and receive audio with your Dante devices using a USB-A/C connection.

Function and characteristic

Features:

1. Bidirectional audio transmission.

2. Plug-and-play operation .

3. 24-bit audio support.

4. 2×2 audio channels.

5. Powered via Power-over-Ethernet (IEEE802.3af) or USB

6. Controllable via Dante Controller

7. 1 Type-C to Type-C cable.

Technical Parameter

Power
802.3af POE;

Sample Rate
48kHZ;

Bit Depth
24;

Operation Temperature
-5 to +55℃;

Storage Temperature
-25 to +70 ℃;

Power Consumption
9W(Max);

Dimension(W*H*D)
115×34×28mm;

Cable Length
20cm;

Net Weight 70g
