Dante Bluetooth Input Dongle

overview Function and characteristic Technical Parameter

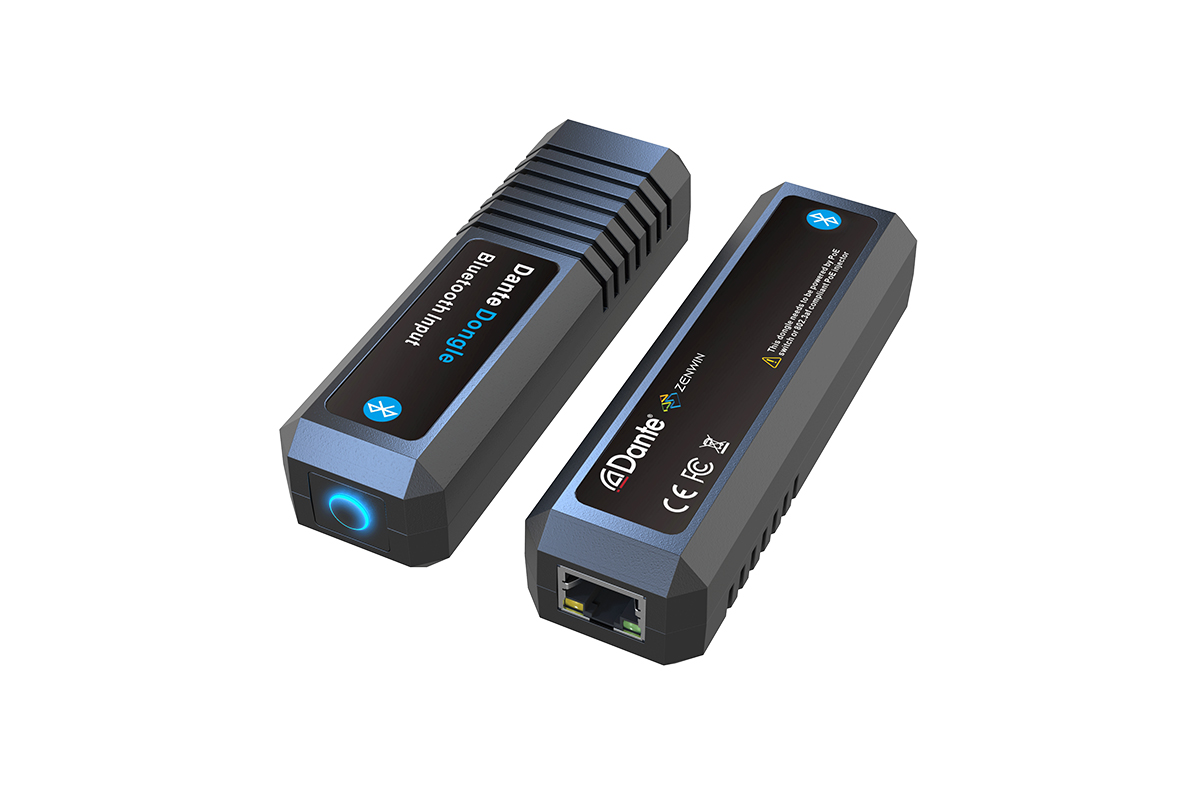

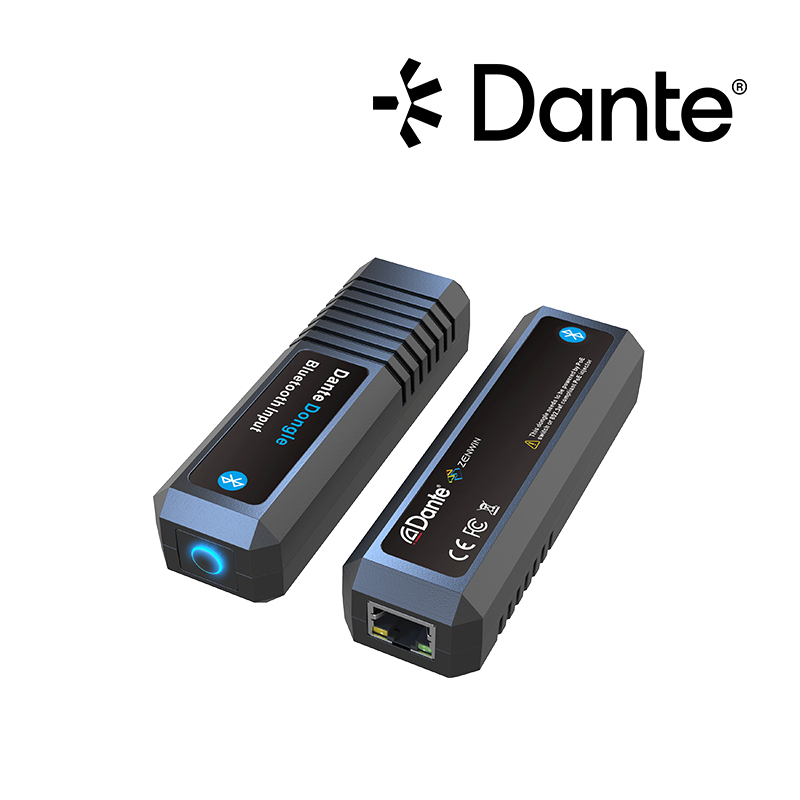

The Dante Bluetooth Input Dongle ZW-D2 wirelessly connects to any PC or mobile device to your Dante audio network. It transmit Bluetooth signal input to Dante digital signal output.

Function and characteristic

Features:

1. Plug-and-play operation.

2. Dante audio sampling rate supports 48KHz@24bit

3. Controllable via Dante Controller.

4. Powered via Power-over-Ethernet (IEEE802.3af).

5. Bluetooth Version 5.0.

6. Dante audio delay supports 1/2/5ms (configurable).

7. Dante outputs equipped with RJ45 port.

Technical Parameter

Control
Bluetooth;

Sample Rate
48kHz;

Bit Depth
24bit;

Dante Device latency
1,2 or 5ms (configurable using Dante Controller);

Operation Temperature
-5 to +55℃(+23° to +131°F);

Storage Temperature
-25 to +70℃(-13° to +158°F);

Power
802.3af PoE;

Power Consumption
1.9W(Max);

Dimension(W×H×D)
34 × 28 × 114 mm;

Net Weight
70g;
