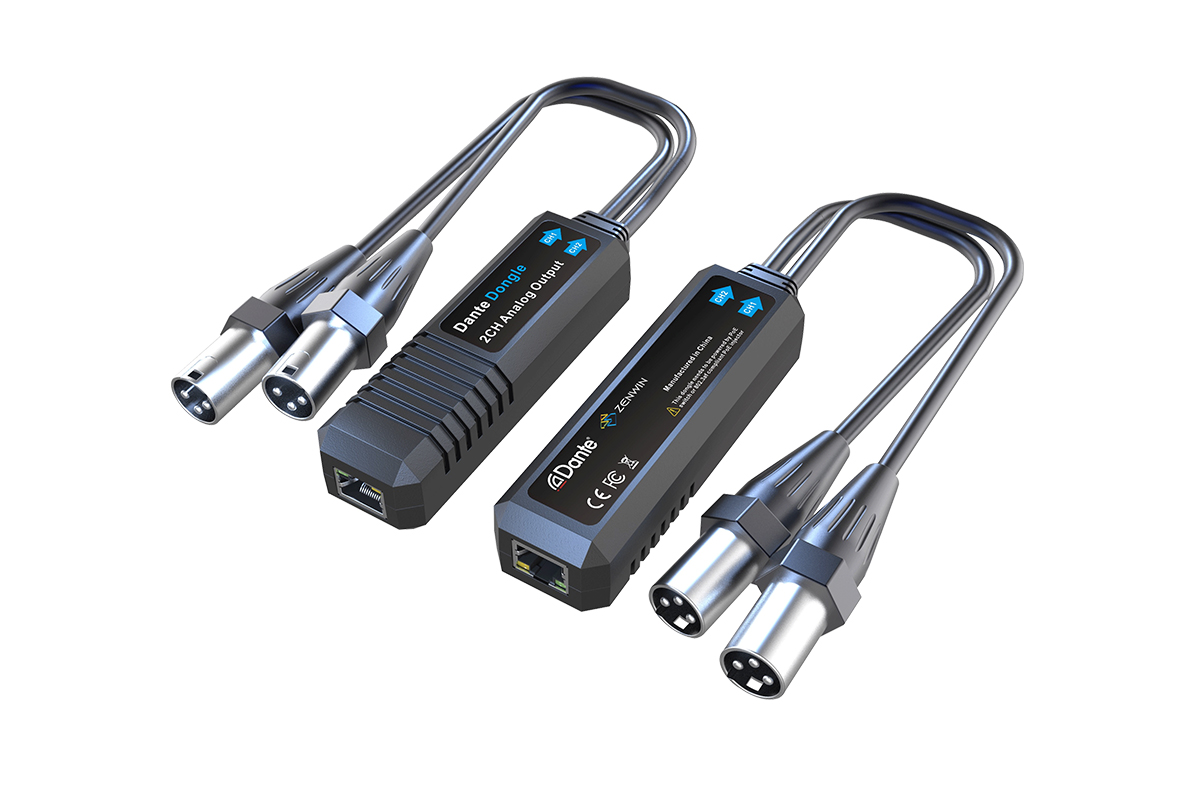

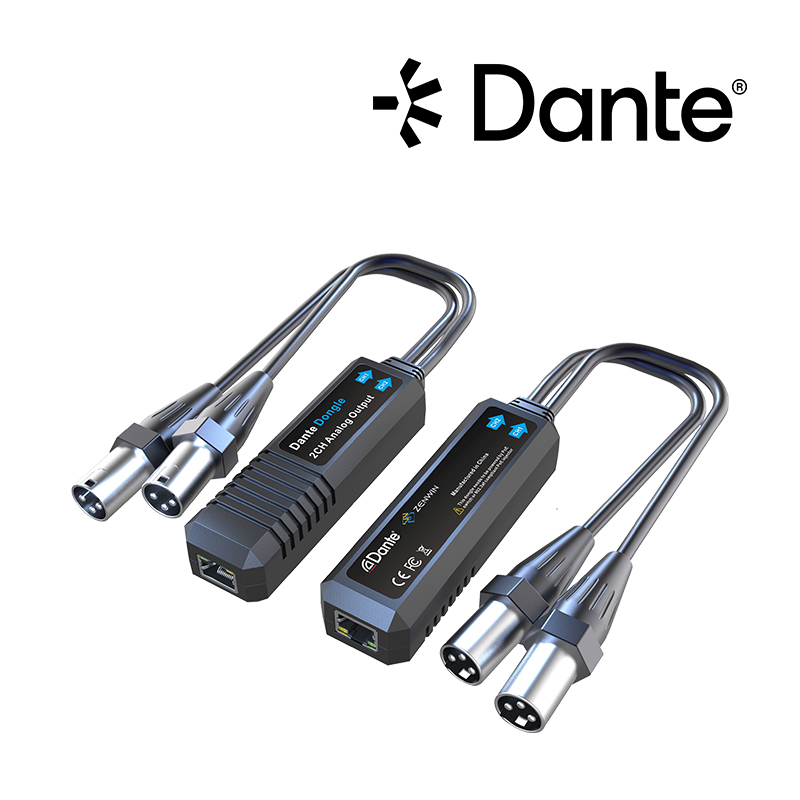

Dante 2CH Analog Output Dongle

The Dante 2CH Analog Output Dongle ZW-D4 is applied to the audio system to transmitDante digital signal to 2 channels of Analog signal outputs.

Function and characteristic

Features:

1. Plug-and-play operation.

2. Sampling rates of 44.1, 48, 96kHz /24bit optional.

3. Controllable via Dante Controller.

4. Powered via Power-over-Ethernet (IEEE802.3af).

5. 2CH analog outputs equipped with XLR-Male connectors.

6. Dante inputs equipped with RJ45 port.

7. Dante Audio over IP and Compatible with AES67.

Technical Parameter

Analog outputs
2 Channels;

Max signal level
+18 dBu;

Output Gain
-6 dBu;

Frequency Response
20Hz to 20kHz(±0.5dB)；

Impedance
150 Ω balanced, 75 Ω unbalanced；

Dynamic Range
＞100dB；

SNR
＞100dB；

THD
＜0.01% @+4dB；

Dante

Sample Rate
44.1kHz,48kHz,96kHz；

Bit Depth
24bit；

Dante Device latency
1,2 or 5ms (configurable using Dante Controller)General；

Operation Temperature
-5 to +55℃(+23° to +131°F)；

Storage Temperature
-25 to +70℃(-13° to +158°F)；

Power
802.3af PoE；

Power Consumption
2.6W(Max)；

Dimension(W×H×D)
30 × 28 × 114 mm；

Cable Length
300mm；

Net Weight 145g
