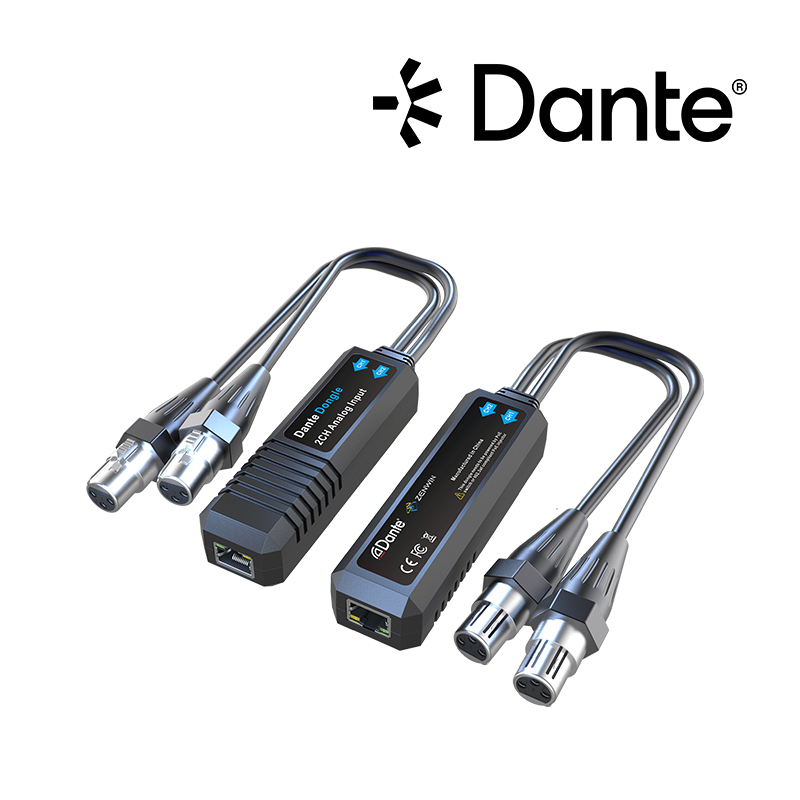

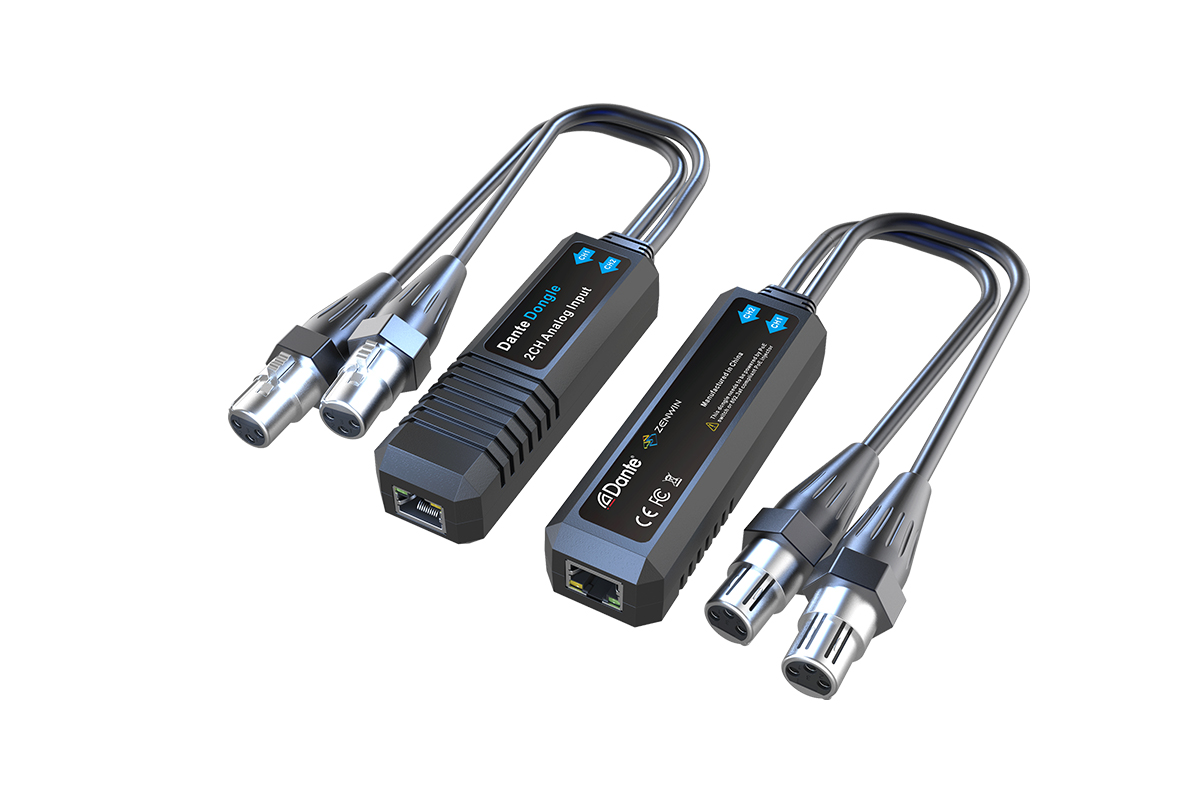

Dante 2CH Analog Input Dongle

The Dante 2CH Analog Input Dongle ZW-D5 is applied to the audio system to transmit 2channels of Analog signal input to Dante digital signal output.

Function and characteristic

Features:

1. Plug-and-play operation.

2. Sampling rates of 44.1, 48, 96khz /24bit optional.

3. Controllable via Dante Controller.

4. Powered via Power-over-Ethernet (IEEE802.3af).

5. 2CH Analog inputs equipped with XLR-Female connectors.

6. Dante outputs equipped with RJ45 port.

7. Dante Audio over IP and Compatible with AES67.

Technical Parameter

Analog Inputs
2 Channels;

Max signal level
+18 dBu;

Frequency Response
20Hz to 20kHz(±0.5dB);

Impedance
150 Ohm balanced, 75 Ohm unbalanced;

Dynamic Range
＞100dB;

SNR
＞100dB;

THD
＜0.01% @+4dB;

Dante

Sample Rate
44.1kHz,48kHz,96kHz;

Bit Depth
24bit;

Dante Device latency
1,2 or 5ms (configurable using Dante Controller)General;

Operation Temperature
-5 to +55℃(+23° to +131°F);

Storage Temperature
-25 to +70℃(-13° to +158°F);

Power
802.3af PoE;

Power Consumption
2.6W(Max);

Dimension(W×H×D)
30 × 28 × 114 mm;

Cable Length
300mm;

Net Weight
145g;
