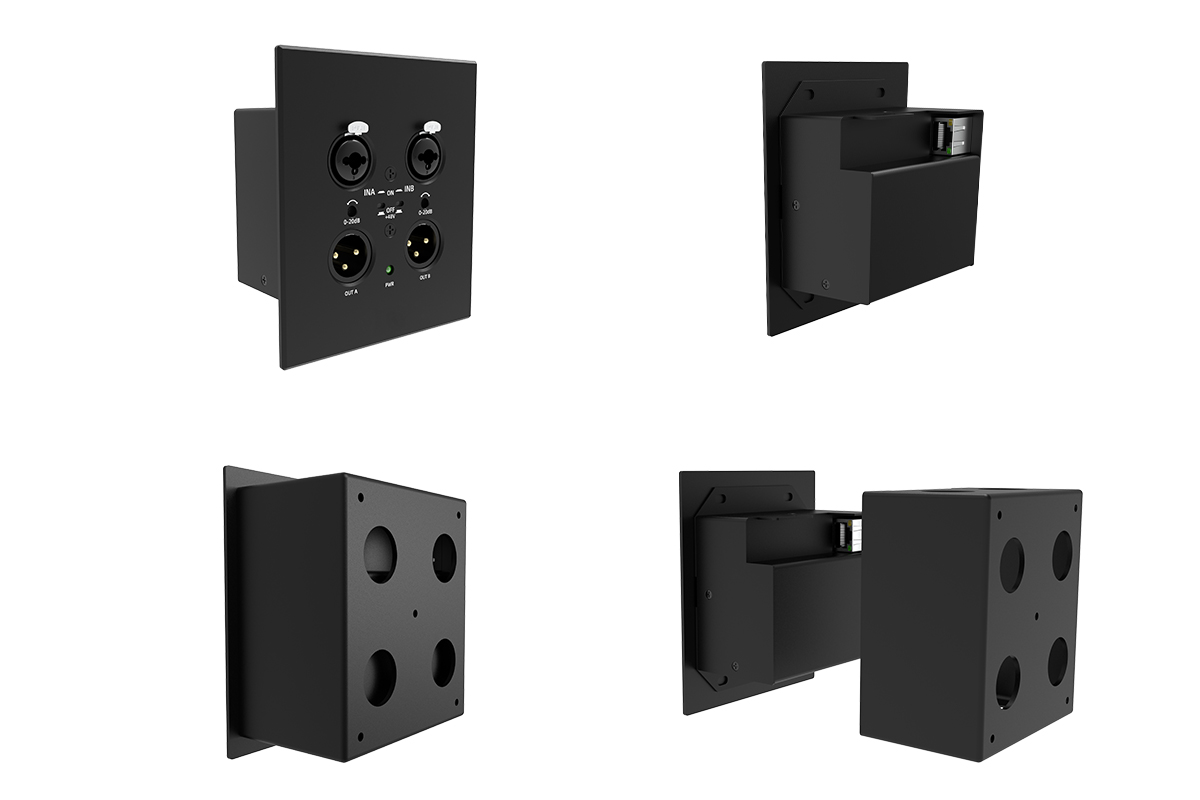

Dante 2-Channel XLR Wall-Plate BOX 2X2IO
sketch：

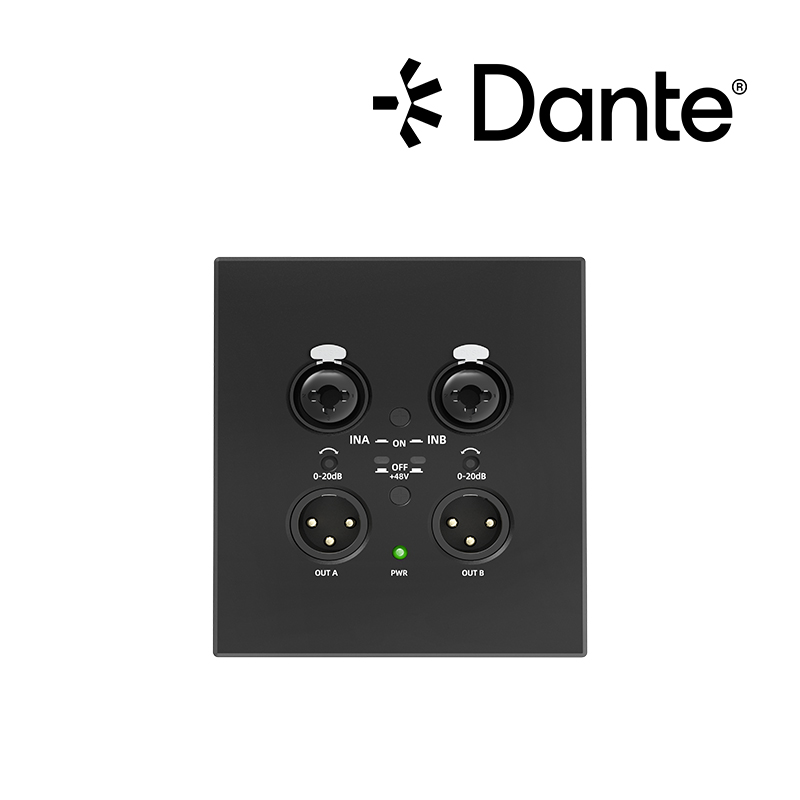

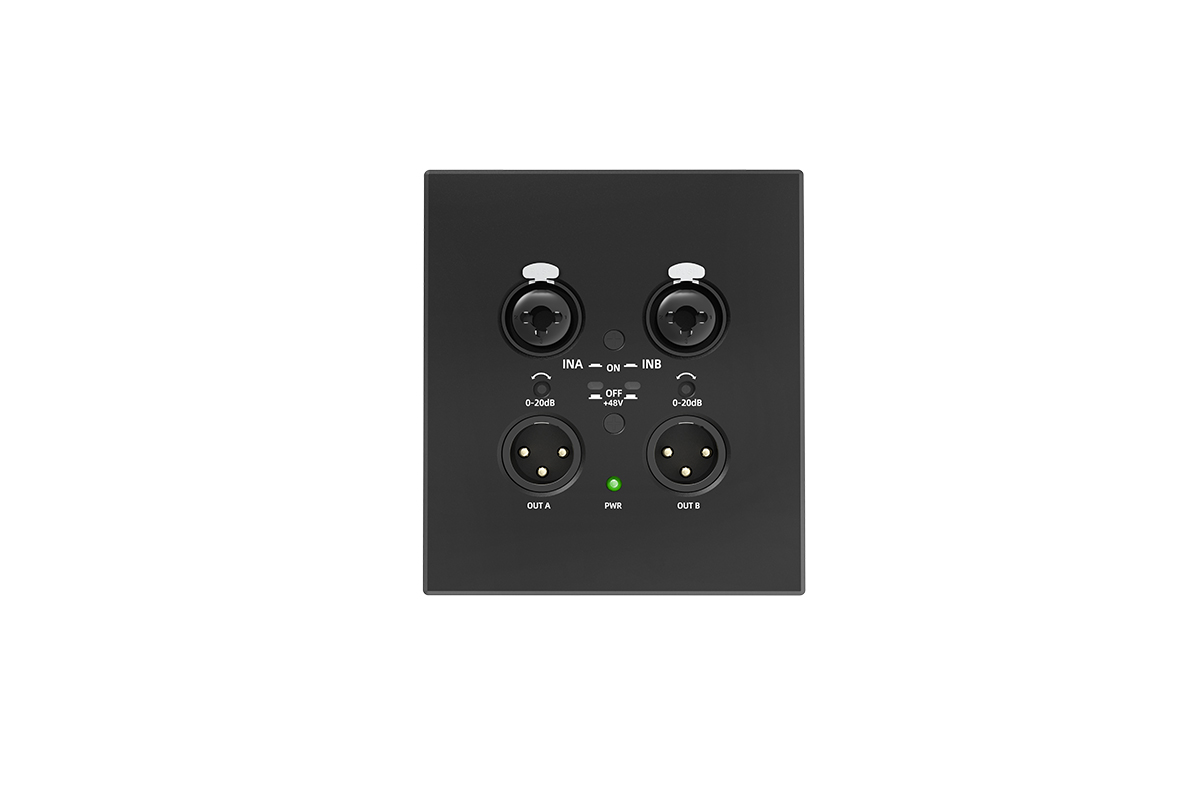

This Dante Digital Interface box BOX 2X2IO supports two sets of balanced l/O analog
signals to be connected to the Dante system through a local area network. The input
interface uses a 2-in-1 XLR socket , with phantom power switch and input signal gain
adjustment functions. The output interface is a standard 3PIN XLR socket, which outputs
balanced analog signals. There are also four output versions for you to choose from. Category 5 or above shielded twisted pair cables to be suggested.
overview Function and characteristic Technical Parameter
This Dante Digital Interface box BOX 2X2IO supports two sets of balanced l/O analog
signals to be connected to the Dante system through a local area network. The input
interface uses a 2-in-1 XLR socket , with phantom power switch and input signal gain
adjustment functions. The output interface is a standard 3PIN XLR socket, which outputs
balanced analog signals. There are also four output versions for you to choose from. Category 5 or above shielded twisted pair cables to be suggested.
Function and characteristic

Features：

1. Built-in Dante module.

2. Supports PoE(IEEE802.3af) power supply.

3. Features 2 XLR balanced inputs and 2 XLR balanced outputs.

4. Features 2CH Dante input and 2CH Dante output.

5. Audio sampling rate supports 48kHz .

 6. The input supports 48VDC phantom power supply.


Technical Parameter
Power Supply
PoE (IEEE 802.3af), plug & play；

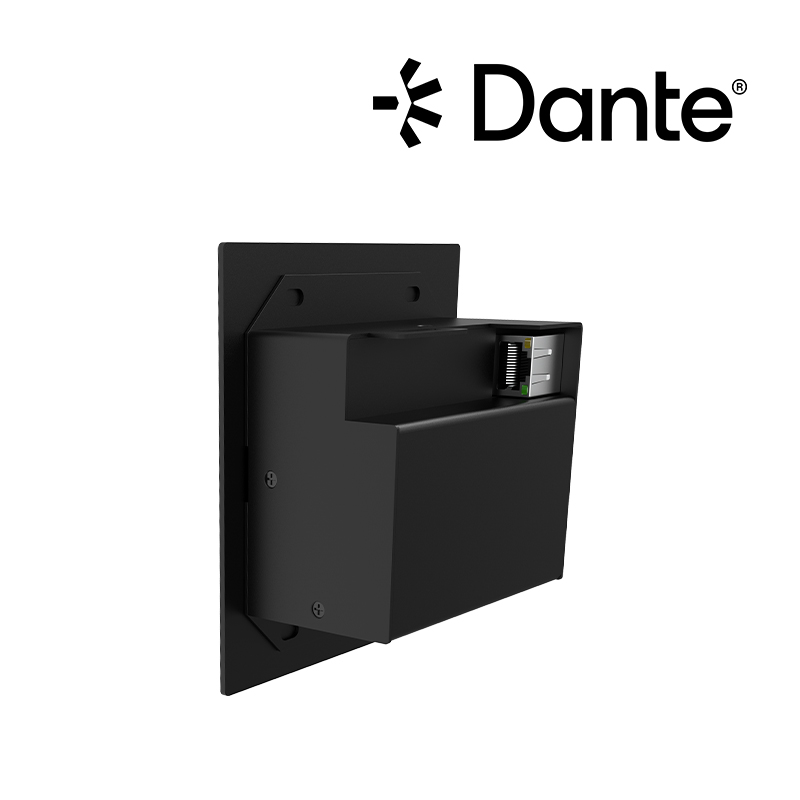

Network Interface
1 × RJ45 (Dante)；
Channels
2 × Mic/Line Inputs；
Connectors
2 × XLR / 6.35 mm Combo；
Input Gain
Adjustable per channel；
Phantom Power
+48V, independently switchable；
Output Level
+18 dBu (balanced)；
Frequency Response
20 Hz – 20 kHz；
Dynamic Range
±0.2 dB；
THD
< 0.005% @ 1 kHz, 4 dBu；
Noise Level
-93 dBu；
Sample Rate
48 kHz；
Dimensions (W × D × H) 110 × 96 × 56 mm；
Weight
0.53 kg；
