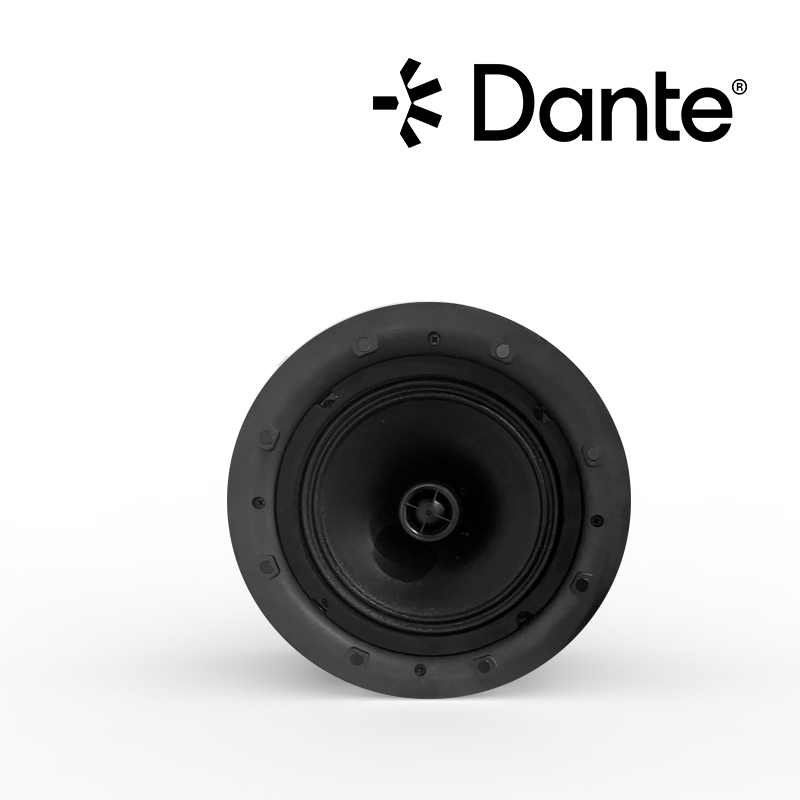

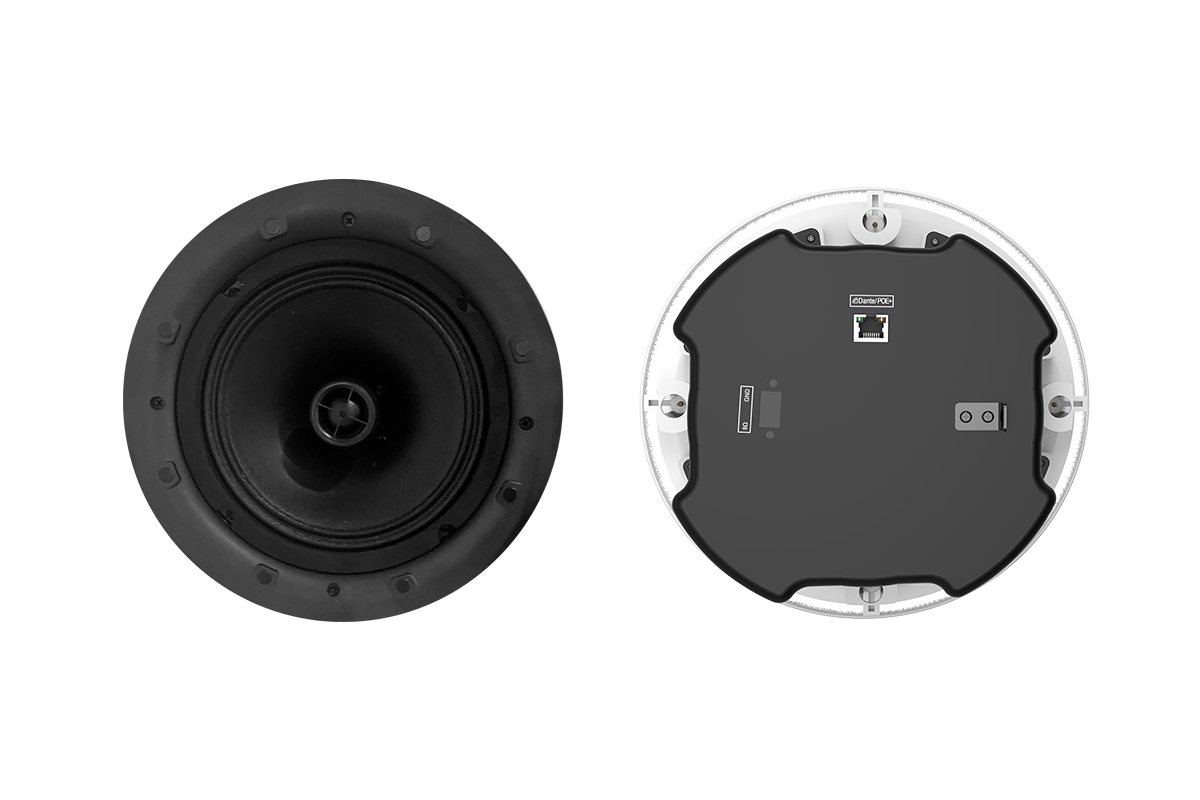

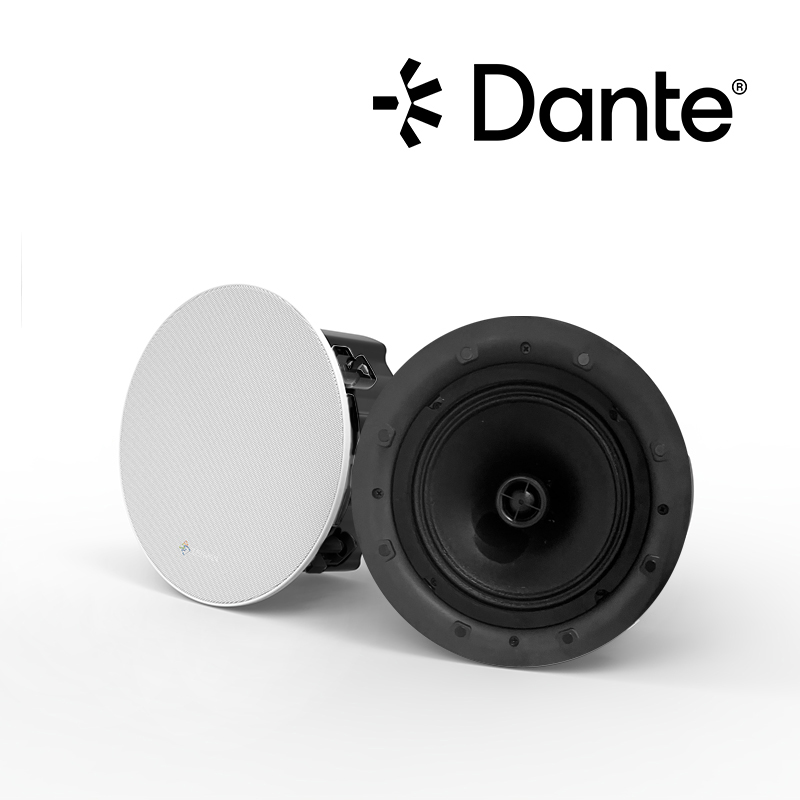

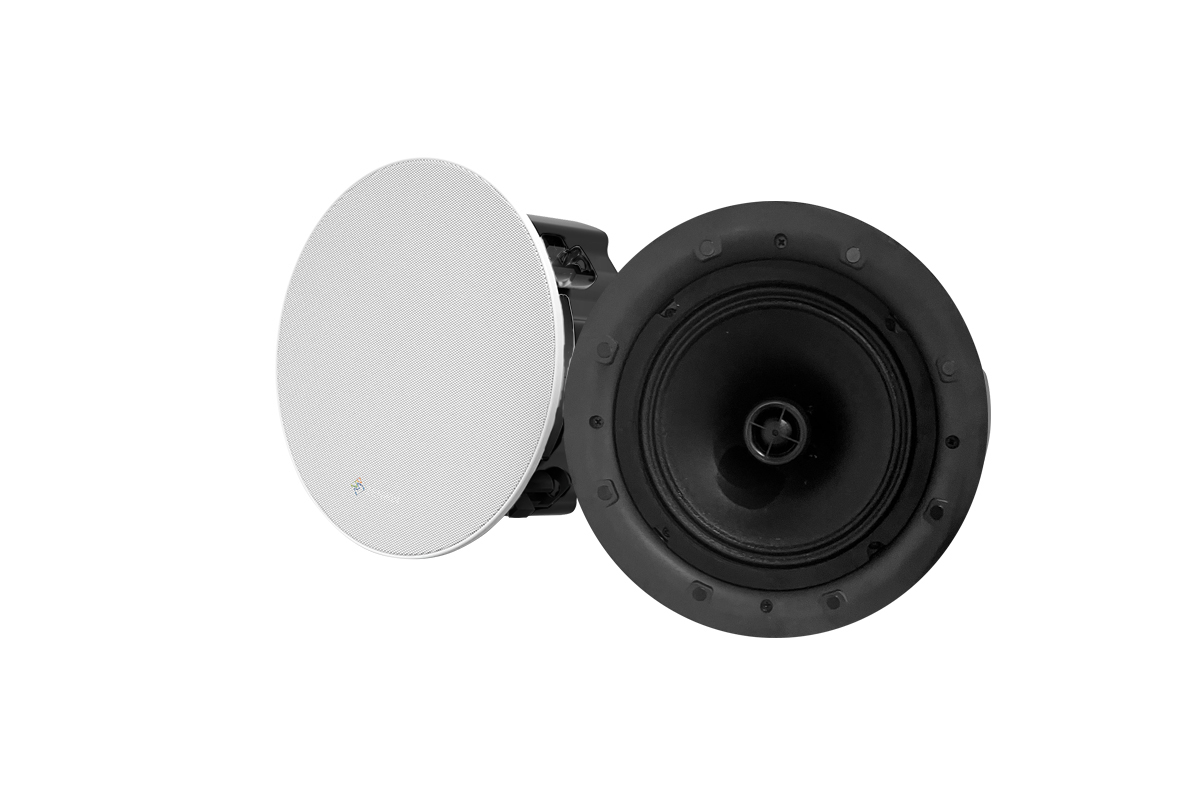

Dante Ceiling Speaker DP-8

sketch：

Product specifications: 1. The mesh cover is designed without borders to better fit the wall and ceiling;
2. Network cables are used to transmit signals and provide power supply;
3. Automatically allocate IP addresses through DHCP router;
4. It can independently control each receiving channel and can be applied to any location in the local area network
5. It has high efficiency and high sound output, excellent sound quality, complete protection function, and good electromagnetic compatibility characteristics.
★ 6. The built-in DSP network active speaker can remotely control the EQ, voltage limit, and other functions of the active speaker on the PC.
★ 7. It has complete protection functions (short circuit protection, overcurrent protection, undervoltage protection, DC protection, power voltage limit, temperature voltage limit, long-term output power limit, clipping limiter).
★ 8. The speaker uses Dante digital audio interface and PoE network power to drive the amplifier module, which only requires one Ethernet cable to achieve simultaneous supply of audio signal and power.
9. Frequency response range: 75Hz-20KHz (± 3dB)
10. Coverage angle: 90 °× 90 °
11. Maximum sound pressure level: 108dB
12. Drive unit: 1x8 "+1x1.5" coaxial
★ 13. Continuous power: 60W
14. Nominal impedance: 8 Ω
15. Sensitivity: 92dB
16. Input interface: RJ45 * 1
17. Product size: Φ 280 × 200 mm
18. Hole size: 245 mm
