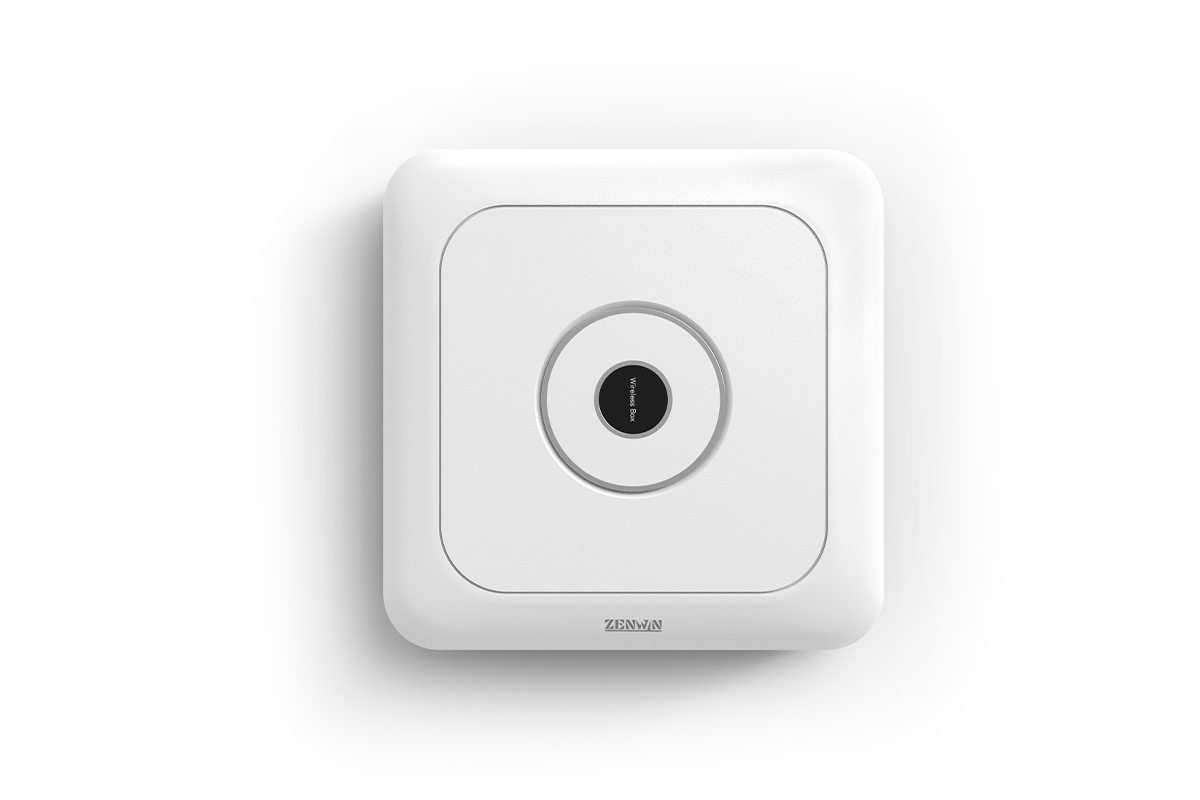

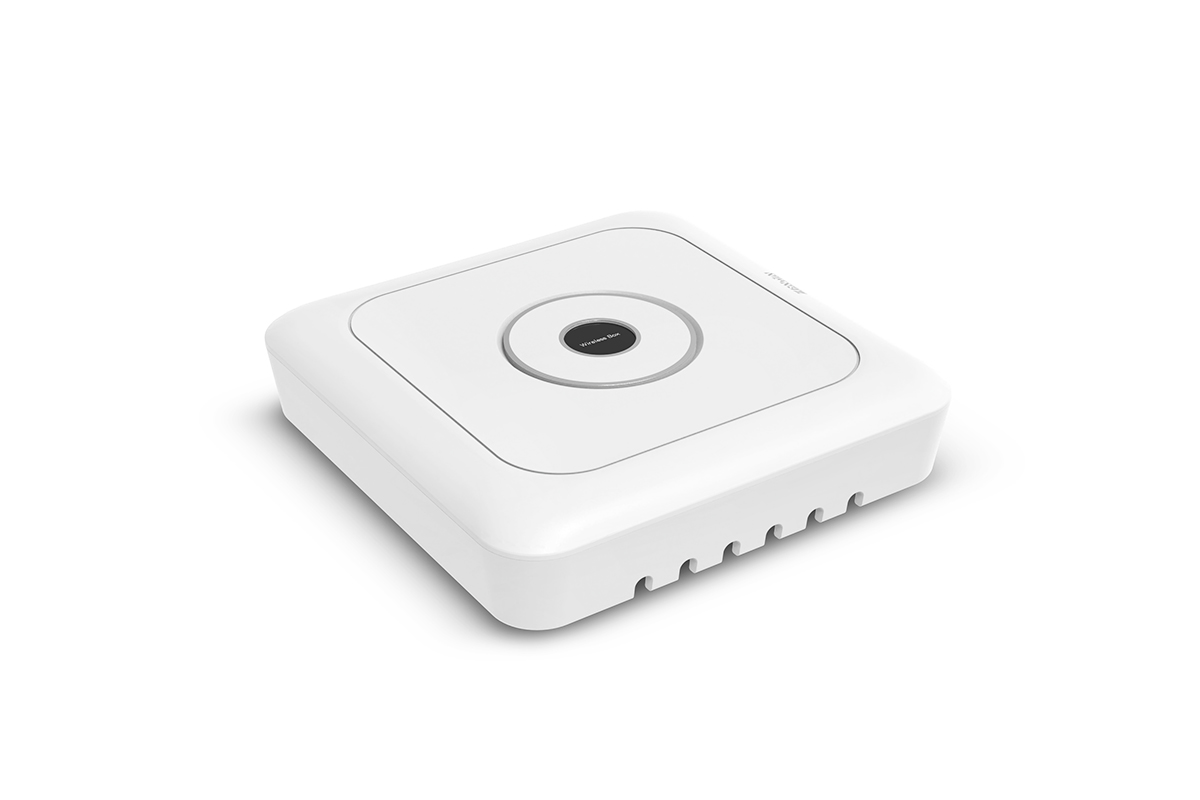

Wireless Transmitter Host WCS-500B0X
sketch:
The ceiling-mounted design is compact and eliminates the need for complicated wiring. It is quick and easy to install and operates simply. It is particularly suitable for project renovations, mobile meetings, temporary equipment additions, and scenarios where wiring is impossible. It supports external 12V power supply or POE power supply. The system adopts a digital and analog integration design, enabling network management and settings, which is easy to use and intuitive. When combined with the DANTE/AES67 network audio transmission module, it can achieve seamless audio signal interconnection.
overview Function and characteristic Technical Parameter
The ceiling-mounted design is compact and eliminates the need for complicated wiring. It is quick and easy to install and operates simply. It is particularly suitable for project renovations, mobile meetings, temporary equipment additions, and scenarios where wiring is impossible. It supports external 12V power supply or POE power supply. The system adopts a digital and analog integration design, enabling network management and settings, which is easy to use and intuitive. When combined with the DANTE/AES67 network audio transmission module, it can achieve seamless audio signal interconnection.
Function and characteristic

The ceiling-mounted design is compact and eliminates the need for complicated wiring. It is quick and easy to install and operates simply. It is particularly suitable for project renovations, mobile meetings, temporary equipment additions, and scenarios where wiring is impossible. It supports external 12V power supply or POE power supply. The system adopts a digital and analog integration design, enabling network management and settings, which is easy to use and intuitive. When combined with the DANTE/AES67 network audio transmission module, it can achieve seamless audio signal interconnection.


Technical Parameter
Carrier frequency band
UHF 640MHz - 690MHz;
Modulation method
FM;
Effective working distance
30 meters;
Power supply method
DC 12V/2A or POE power supply;

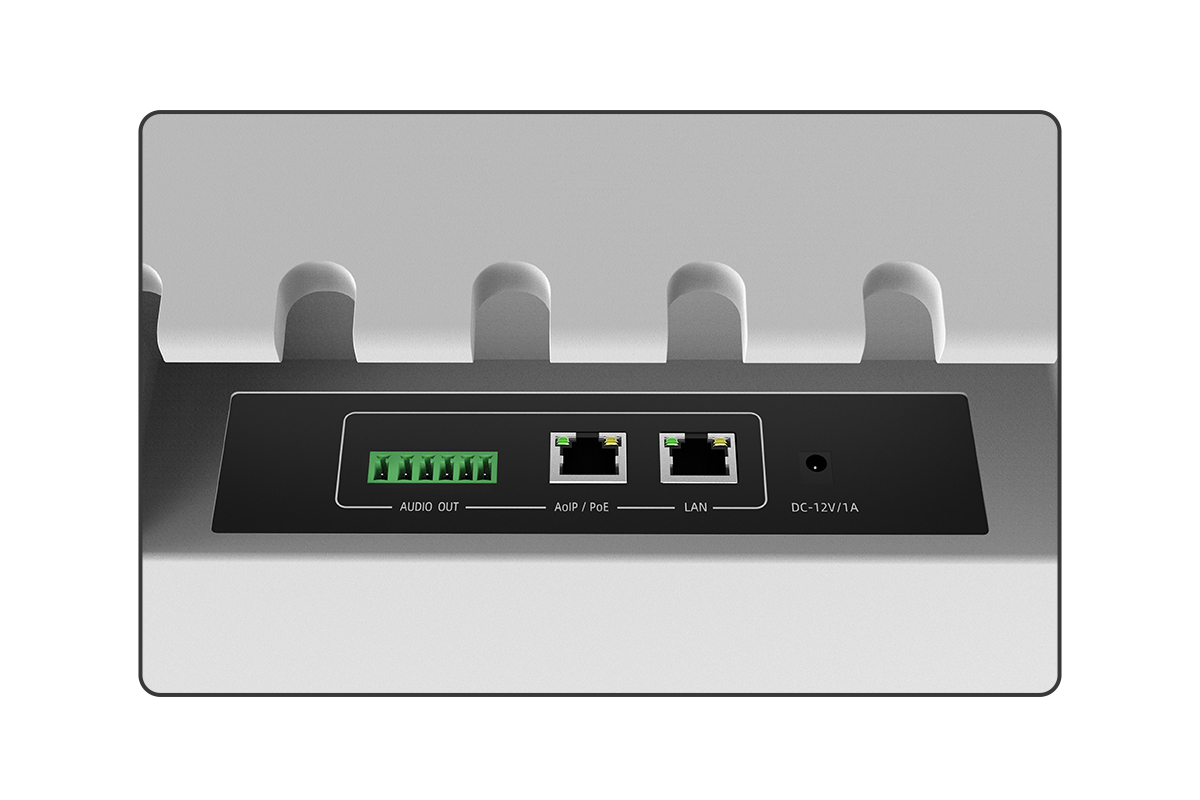

Audio output
Balanced phoenix terminals, RJ45;
Control
RS-232, RJ45;
Oscillation method
PLL phase-locked frequency synthesis;
Sensitivity
When the offset is equal to 25KHz and the input is 6dBv, S/N > 60dB;
Frequency width
30MHz;
Maximum offset
±45KHz;
Overall signal-to-noise ratio S/N
> 105dB;
Overall T.H.D
< 0.7% @ 1KHz;
Overall frequency response
45Hz - 18KHz ± 1dB;
