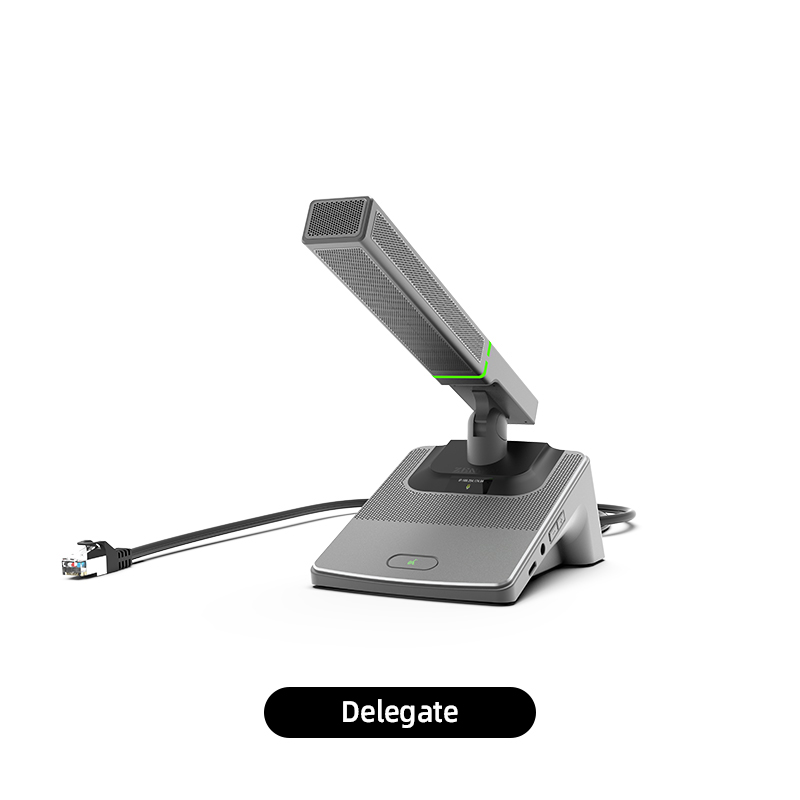

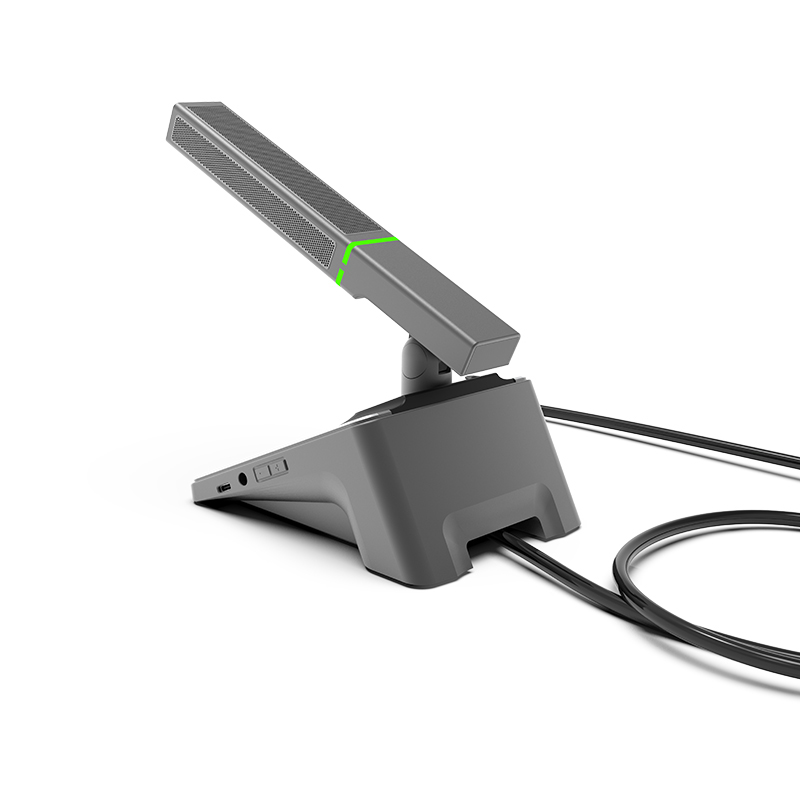

Desktop conference unit DMS-100C/D
sketch:
The new aluminum alloy microphone pole features a unique integrated pickup mesh design. The microphone is equipped with a 0.96-inch display screen.
It adopts digital audio transmission and control technology, ensuring excellent sound quality.
overview Function and characteristic Technical Parameter

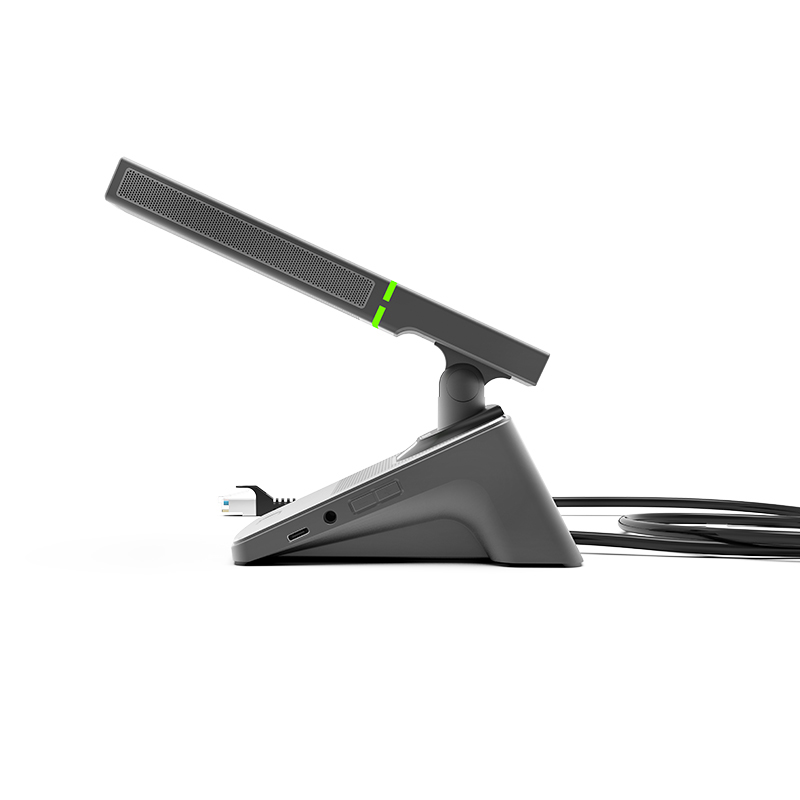

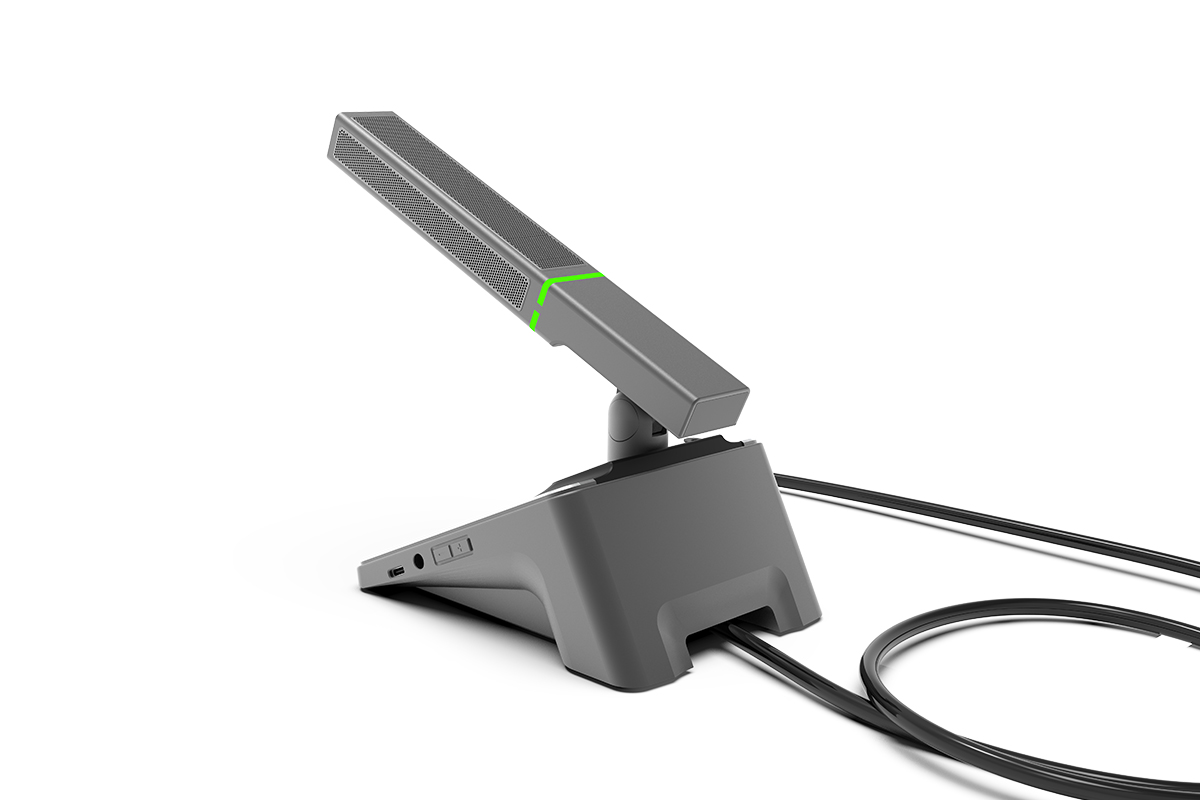

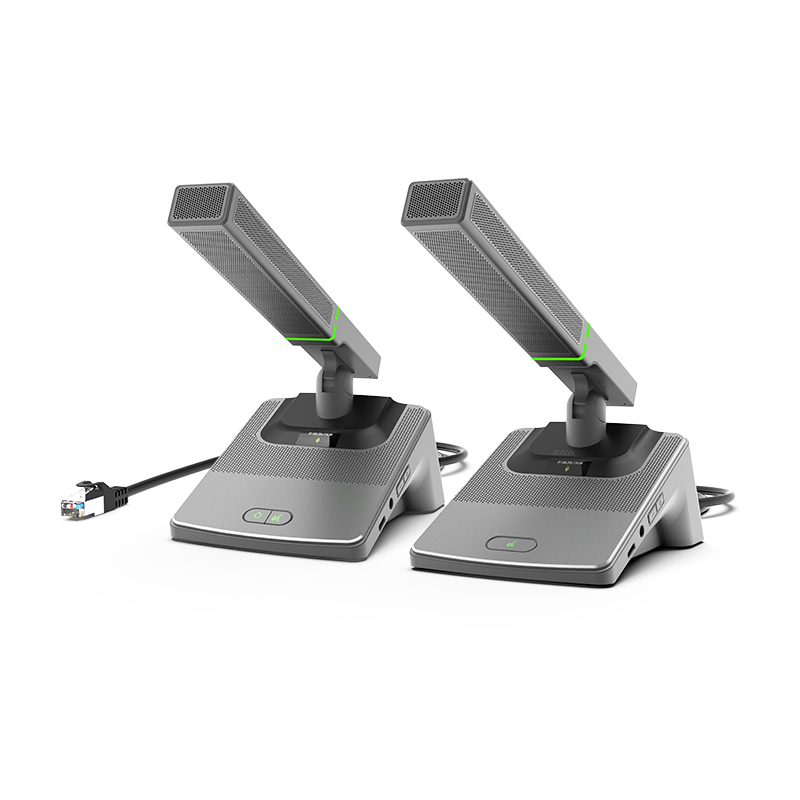

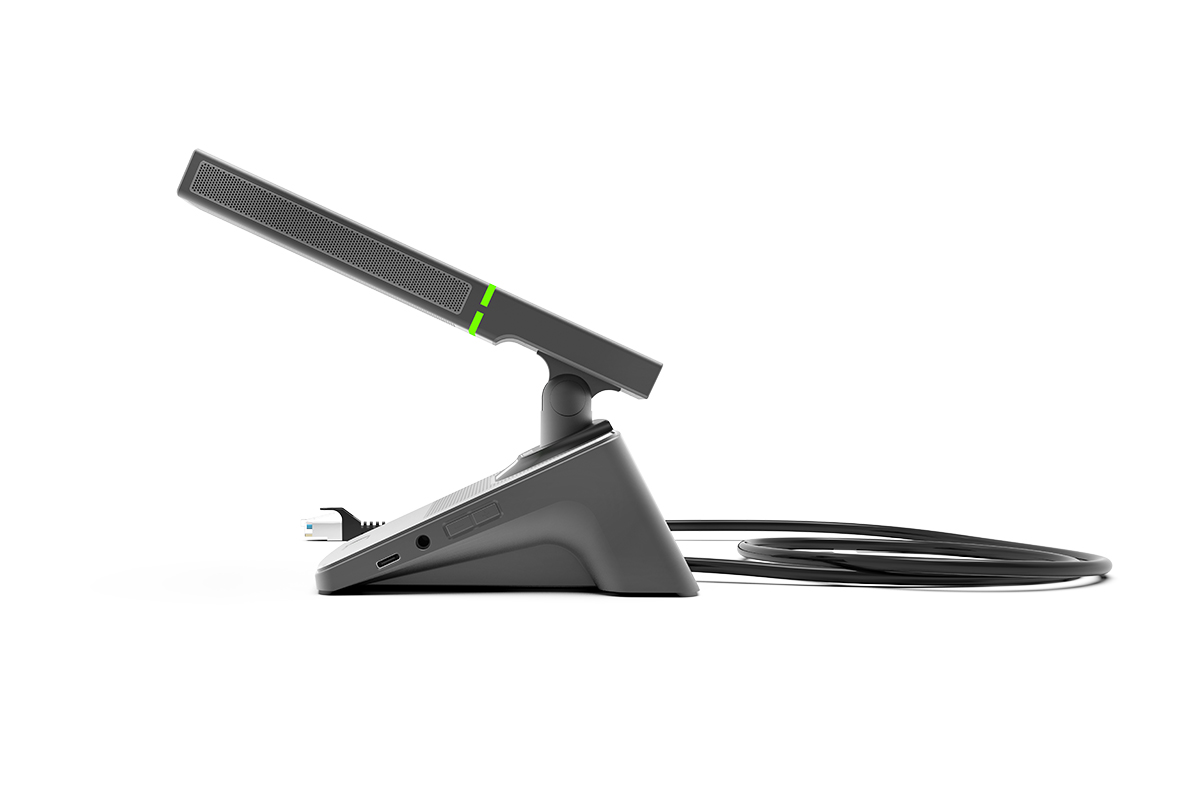

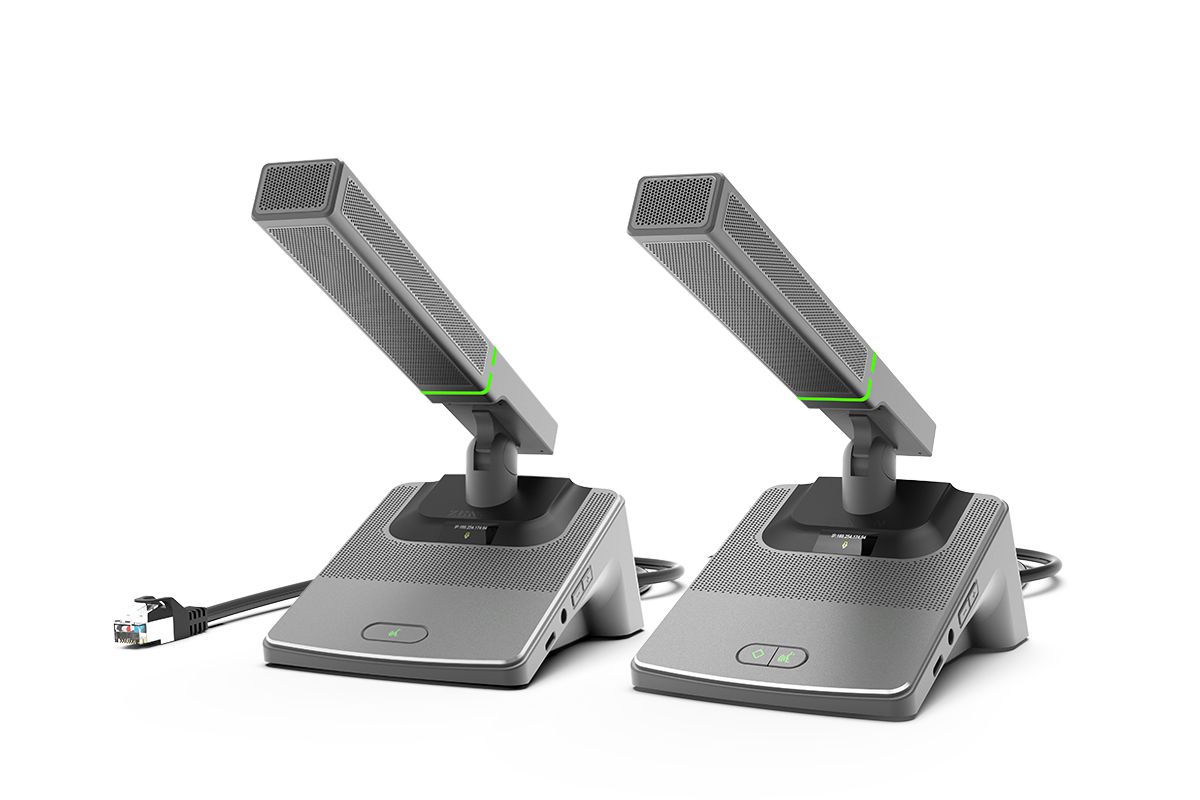

The new aluminum alloy microphone pole features a unique integrated pickup mesh design. The microphone is equipped with a 0.96-inch display screen.
It adopts digital audio transmission and control technology, ensuring excellent sound quality.
Function and characteristic

1.Using the unique digital conference technology developed by Zenwin, it complies with the international standard IEC60914.

2. The elegant and refined tabletop structure is ergonomic and exudes a modern vibe. It is mainly used in professional settings such as high-end conferences.

3. Made of zinc/aluminum alloy material, with anodized finish and CNC precision processing for high-gloss edges. The high-fidelity microphone diaphragm is equipped with a φ16 capacitor microphone. It integrates a double-layer windproof cover to reduce environmental noise and wind sounds, and has a good sound pickup range.

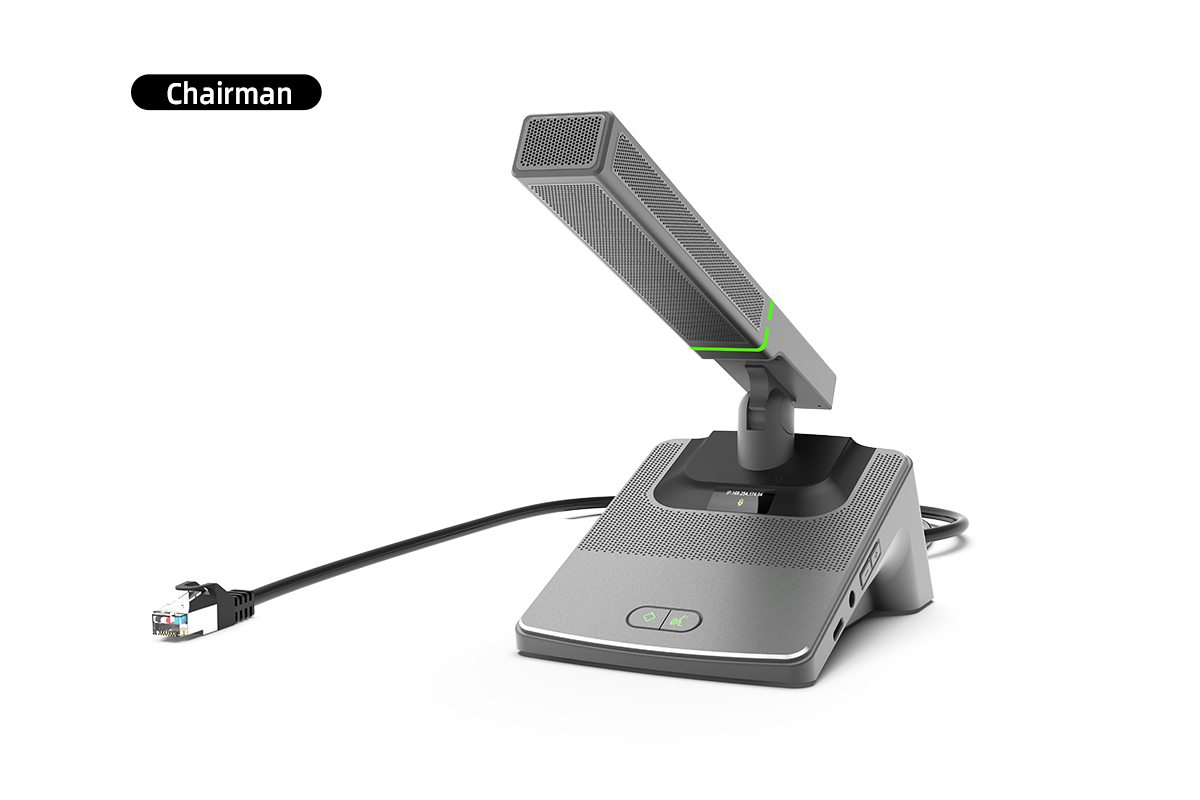

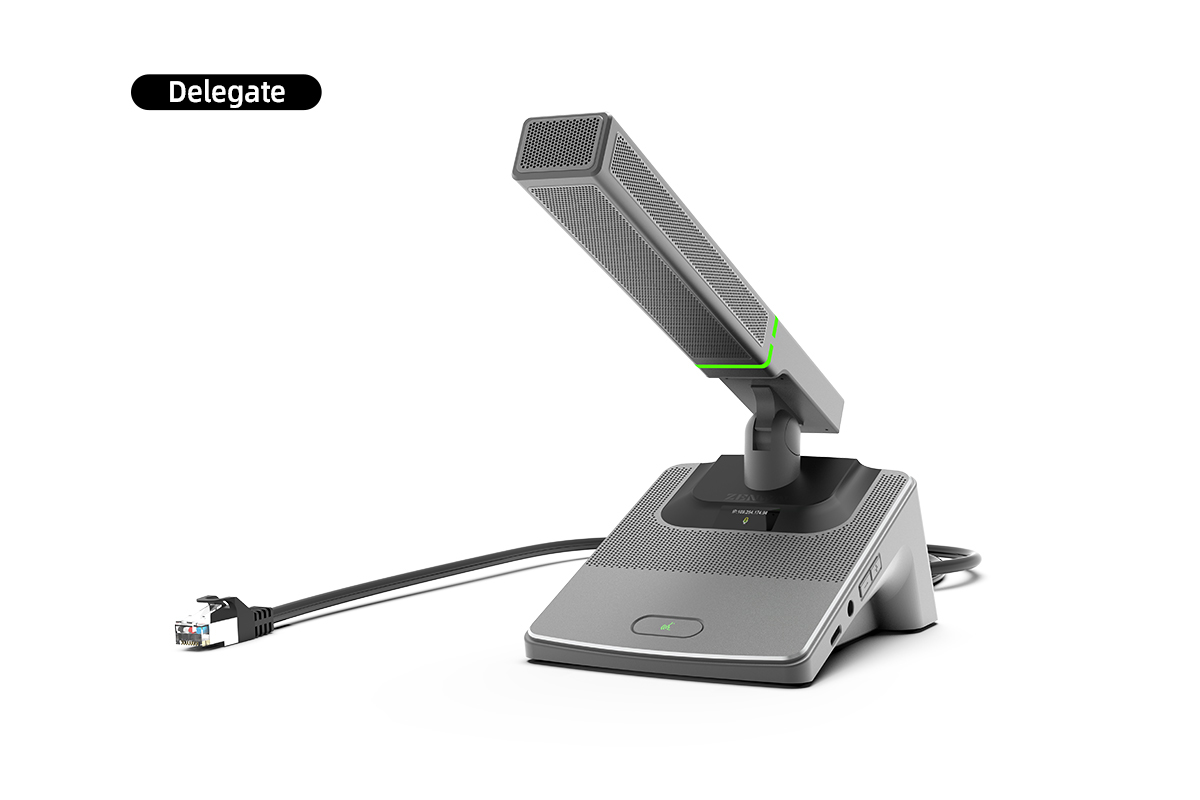

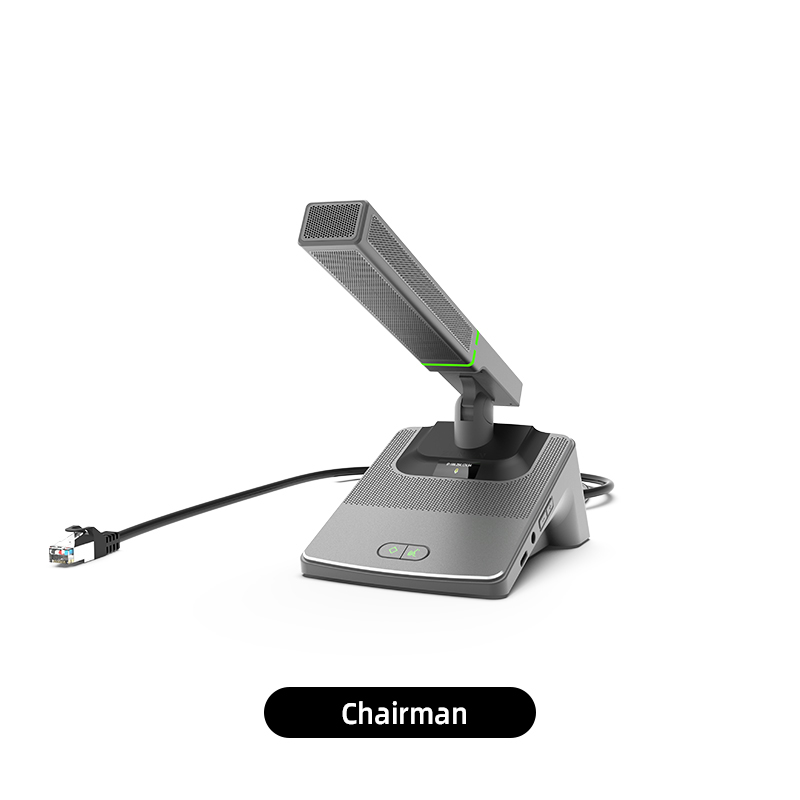

4. The chairman has a priority function that enables him to shut down the representative unit that is currently speaking and to control the speaking order to maintain the atmosphere of the meeting.

5. The pure presentation meeting unit features a 0.96-inch color screen for displaying meeting mode, meeting unit ID number, and chairman/representative functions.

6. The microphone gain can be independently adjusted. This can be done either on the microphone itself or through the management software of the computer, ensuring smoother speech for speakers with different volume levels.

7. The microphone is equipped with a very quiet soft control switch, which can prevent the mechanical noise from the switch from being amplified. The microphone also has a bright light-emitting halo to indicate its working status.

8. Equipped with a high-performance DSP audio chip, it optimizes the audio signal, restores the human voice, and offers excellent sound quality.

9. Dual-color LED indicator lights: The "speaking" state is green, while the "request to speak" and "setting ID" states are flashing red.

10. The unit comes with 1.5-meter ultra-6-category shielded network cable.

11. The ID number of the microphone unit can be set through the ID switch of the conference host and can be assigned to the conference unit ID.


Technical Parameter
Connection method
Network cable;
Frequency response
40Hz - 20KHz;
Sensitivity
-32dBV;
Directional characteristics
Super cardioid;
Distortion
<1%;
Power supply
DC24V for host power supply;
Size
Microphone tube size
Overall size
160mm x 115mm x 75mm;
Other
Integrated square microphone tube;
