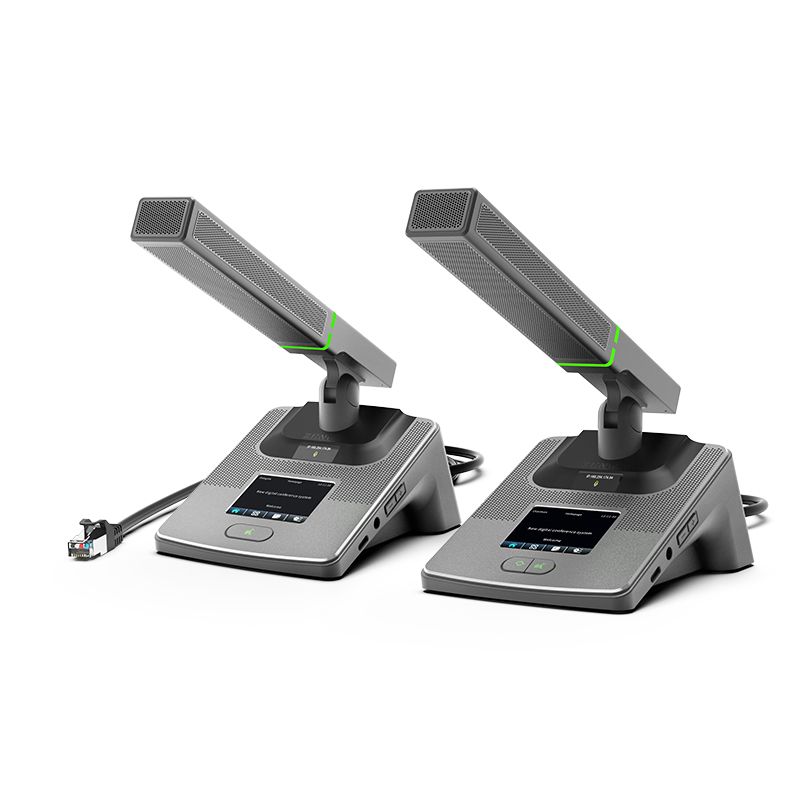

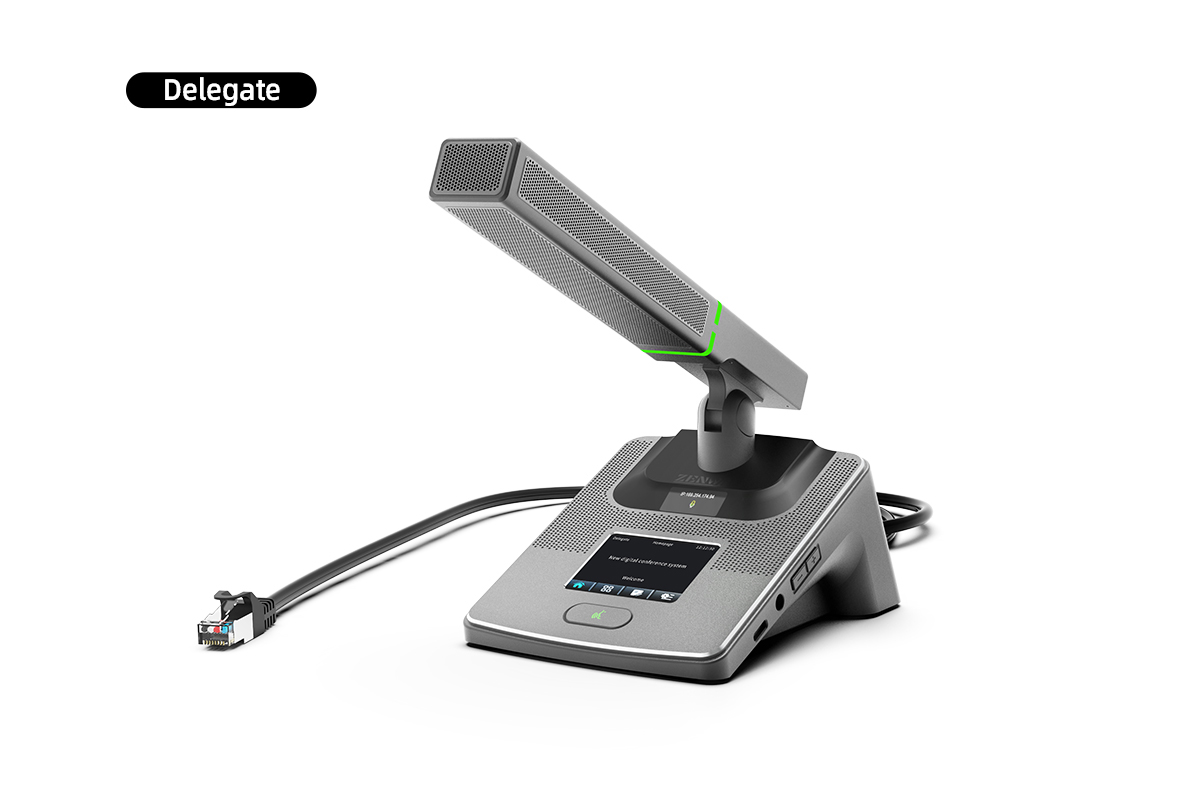

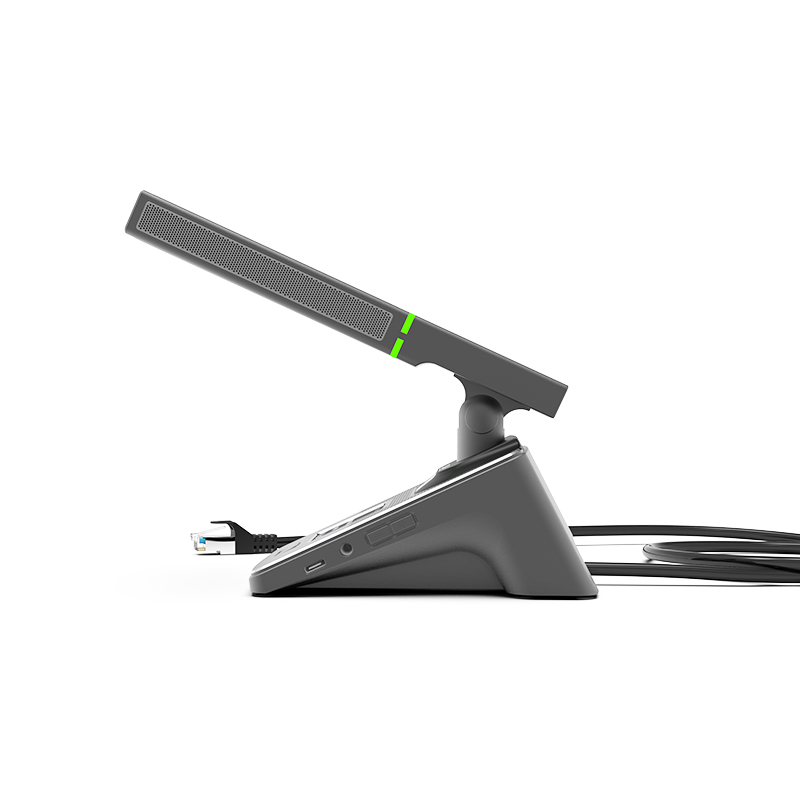

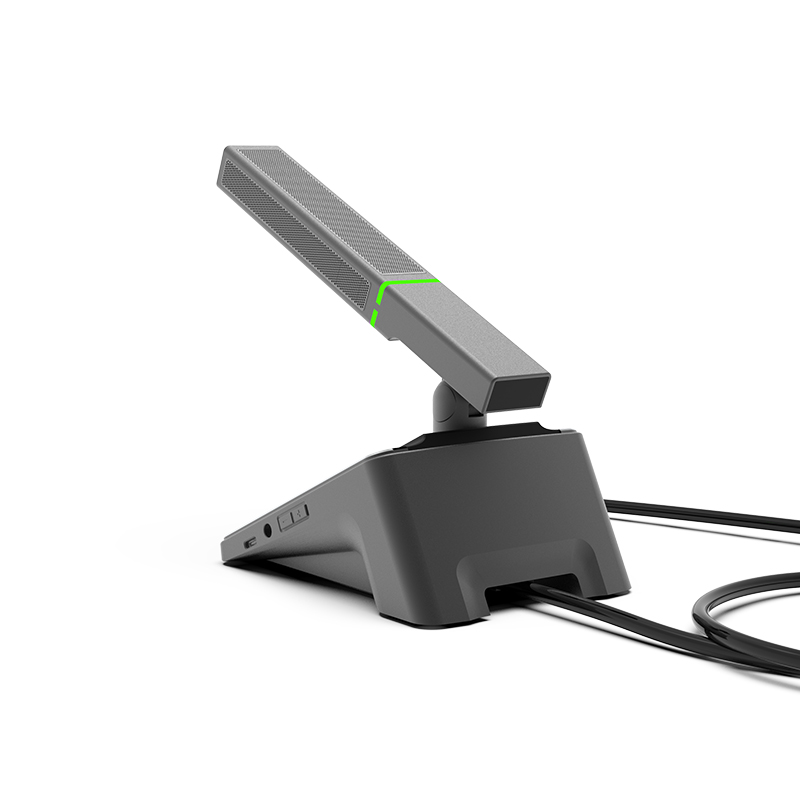

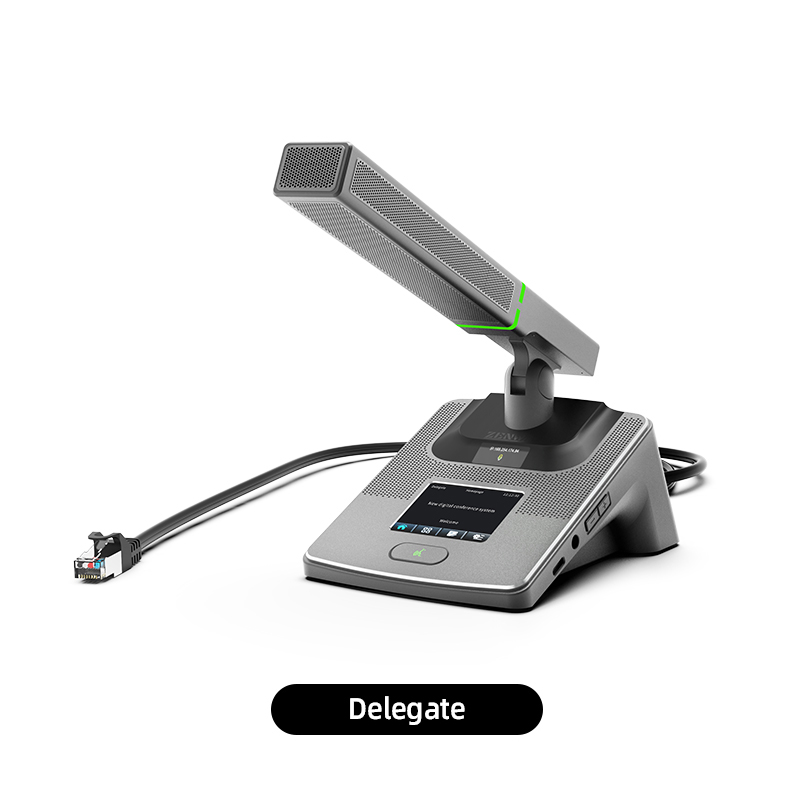

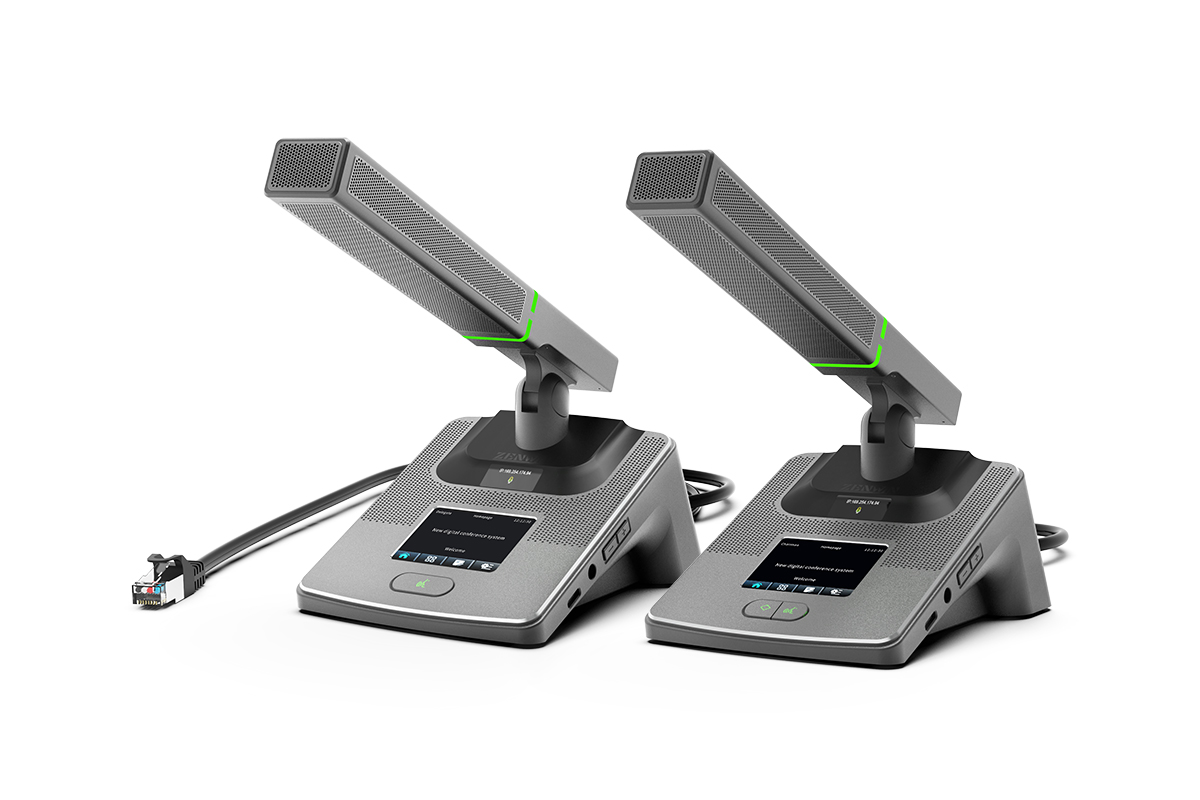

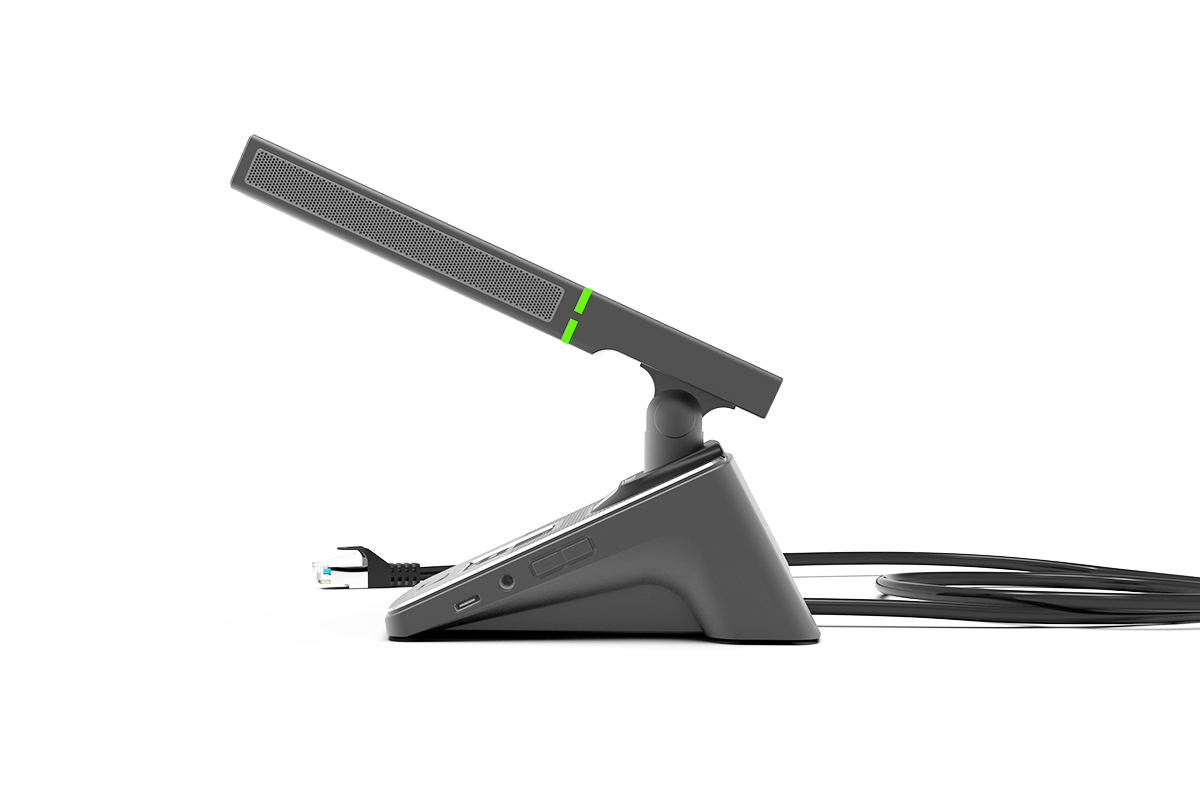

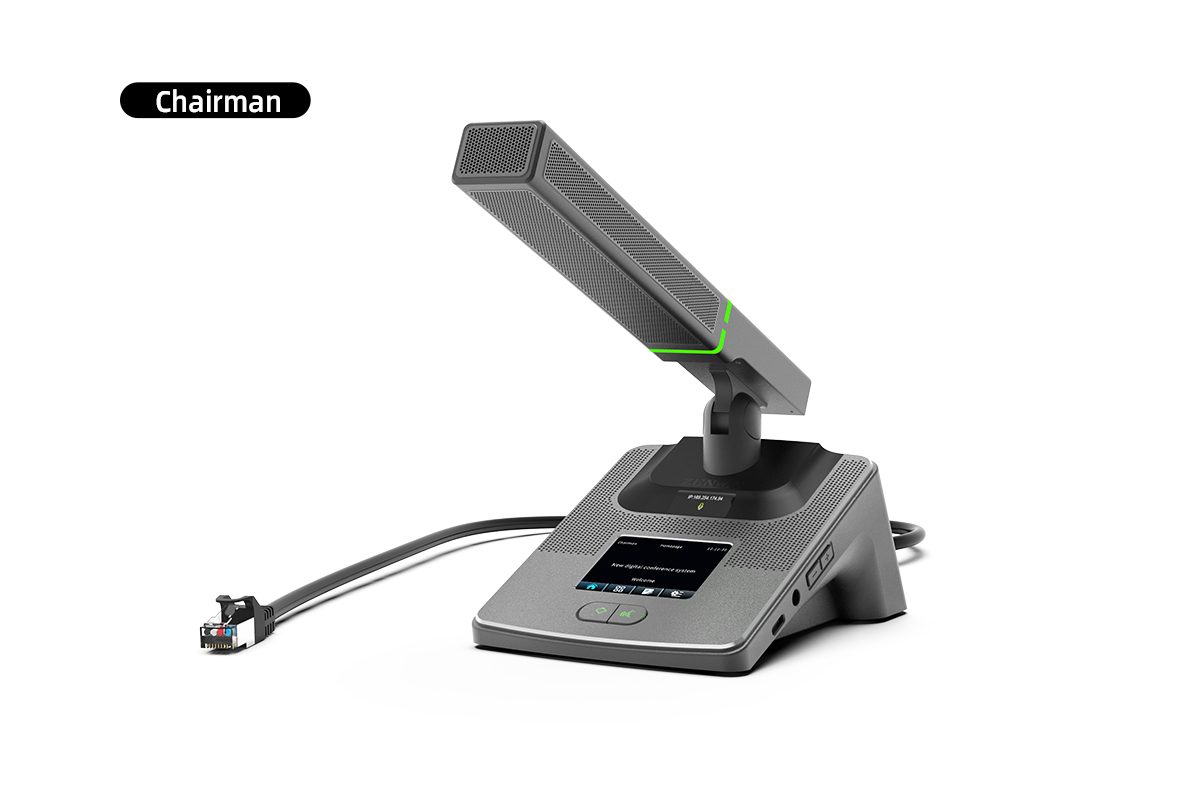

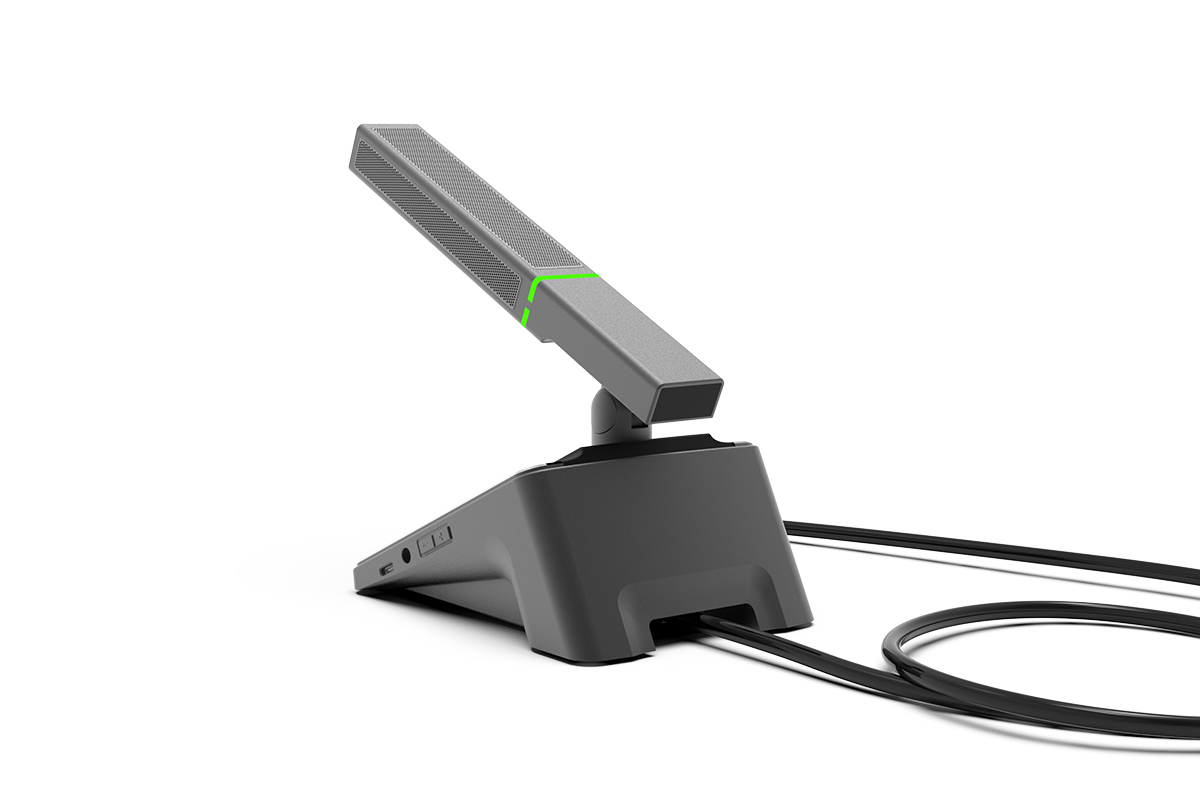

Desktop conferencing unit DMS-200C/D
sketch:
The new aluminum alloy microphone pole features a unique integrated pickup mesh design. The microphone is equipped with dual-screen display.
It adopts digital audio transmission and control technology, ensuring excellent sound quality.

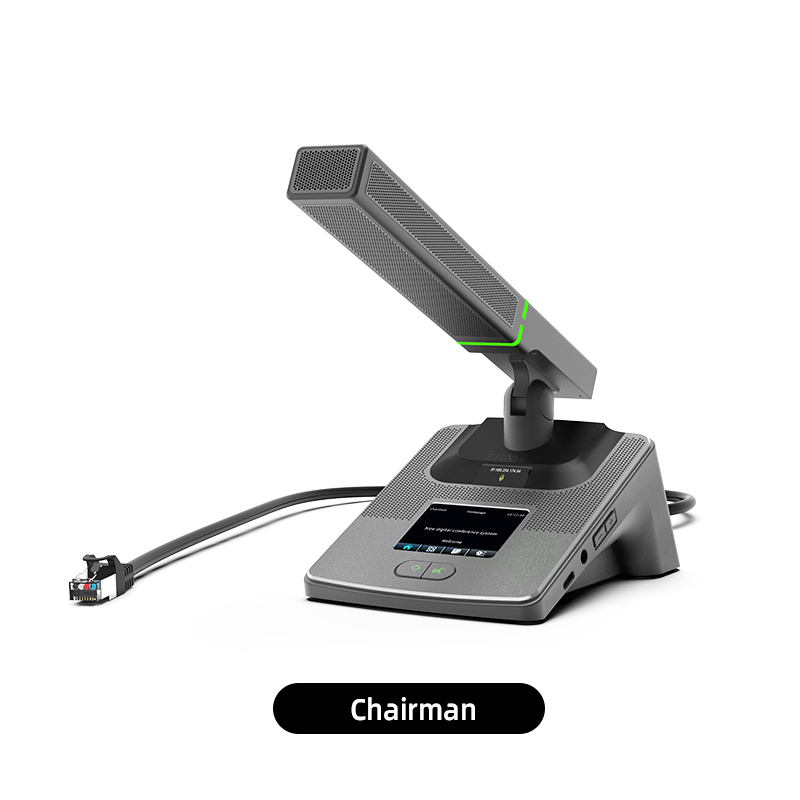

In the entire conference system, the chairman unit has the priority to speak. It can mute/turn off the speech of any representative unit that is speaking, thus enabling the chairman unit to effectively control the order of the meeting.
overview Function and characteristic Technical Parameter
The new aluminum alloy microphone pole features a unique integrated pickup mesh design. The microphone is equipped with dual-screen display.
It adopts digital audio transmission and control technology, ensuring excellent sound quality.
In the entire conference system, the chairman unit has the priority to speak. It can mute/turn off the speech of any representative unit that is speaking, thus enabling the chairman unit to effectively control the order of the meeting.
Function and characteristic

Product Features:


1.Using the unique digital conference technology developed by Zenwin, it complies with the international standard IEC60914.

2. The elegant and refined tabletop structure is ergonomic and exudes a modern vibe. It is mainly used in professional settings such as high-end conferences.

3. Made of zinc/aluminum alloy material, with anodized finish and CNC precision processing for high-gloss edges. The high-fidelity microphone driver unit features a φ16 capacitive dual-microphone, integrated with a double-layer windproof cover, which can reduce environmental noise and wind sounds, and has a good sound pickup range.

4. The chairman has a priority button function, which enables him/her to shut down the representative unit that is currently speaking; the priority button can also be used to control the speaking order and the atmosphere of the meeting.

5. Dual-screen display, 2-inch touch screen and 0.96-inch color screen. The 0.96-inch color screen displays meeting mode, meeting unit ID number, and chairman/representative functions.

6. 2-inch touchable high-resolution display: Supports real-time clock display, call service, volume adjustment, Chinese-English switch, sign-in, voting, voting, election, rating and other functions.

7. The ring-shaped hand-holding connection technology ensures that the failure or replacement of one microphone will not affect the operation of other microphones in the system. Even if there is a connection failure between microphones, it will not affect the operation of the entire system, thereby making the system more reliable.

8. The supporting line adopts "hot plugging" technology, allowing for the easy addition of microphones to the system at any time.

9. The microphone gain can be independently adjusted. This can be done either on the microphone itself or through the management software of the computer, ensuring smoother speech for speakers with different volume levels.

10. The microphone is equipped with a very quiet soft control switch, which can prevent the mechanical noise from the switch from being amplified. The microphone also has a bright light-emitting halo to indicate its working status.

11. Equipped with a high-performance DSP audio chip, it optimizes the audio signals, restores the human voice, and offers excellent sound quality.

12. Dual-color LED indicator lights: The "speaking" state is green, while the "request to speak" and "setting ID" states are flashing red.

13. The unit comes with 1.5-meter ultra-6-category shielded network cable.

14. The ID number of the microphone unit can be set through the ID switch of the conference host and can be assigned to the conference unit ID.


Technical Parameter
Connection method
Network cable;
Frequency response
40Hz - 20KHz;
Sensitivity
-32dBV;
Directional characteristics
Super cardioid;
Distortion
<1%;
Power supply
DC24V for host power supply;
Dimensions
Microphone tube size
Overall dimensions
160mm x 115mm x 75mm;
Other
Integrated square microphone tube;
