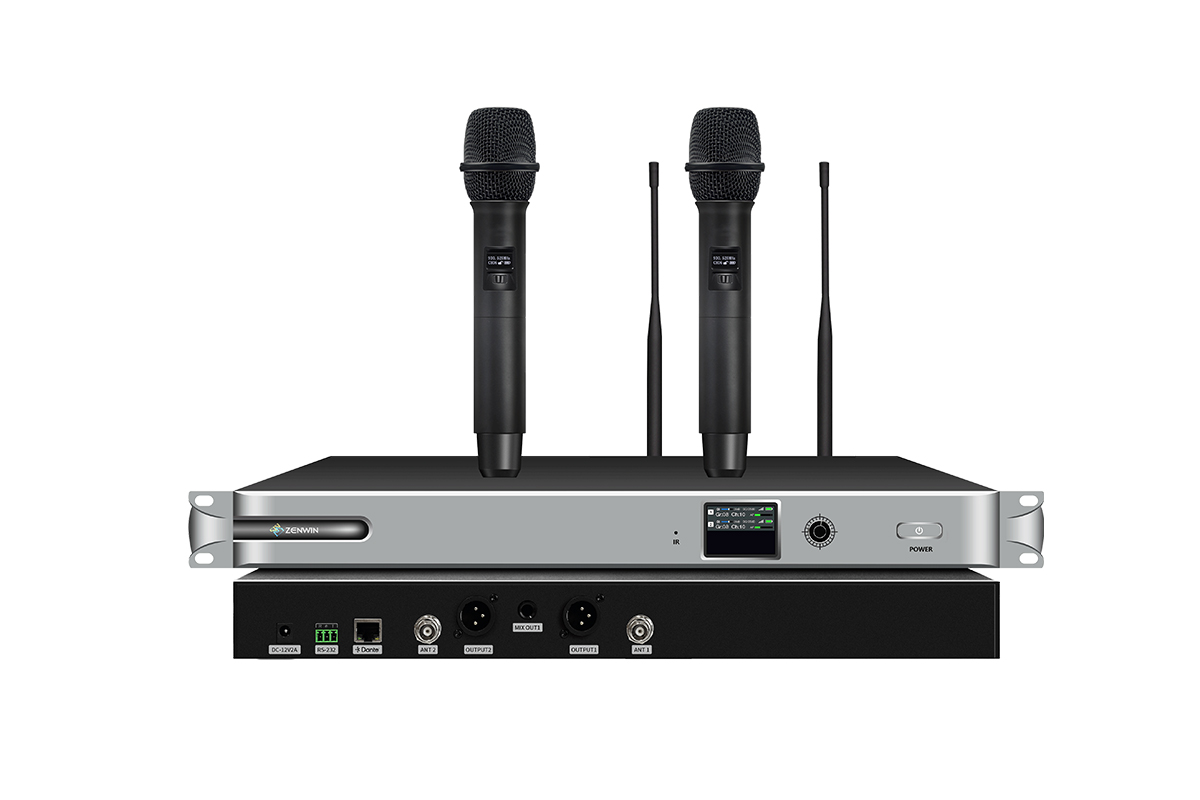

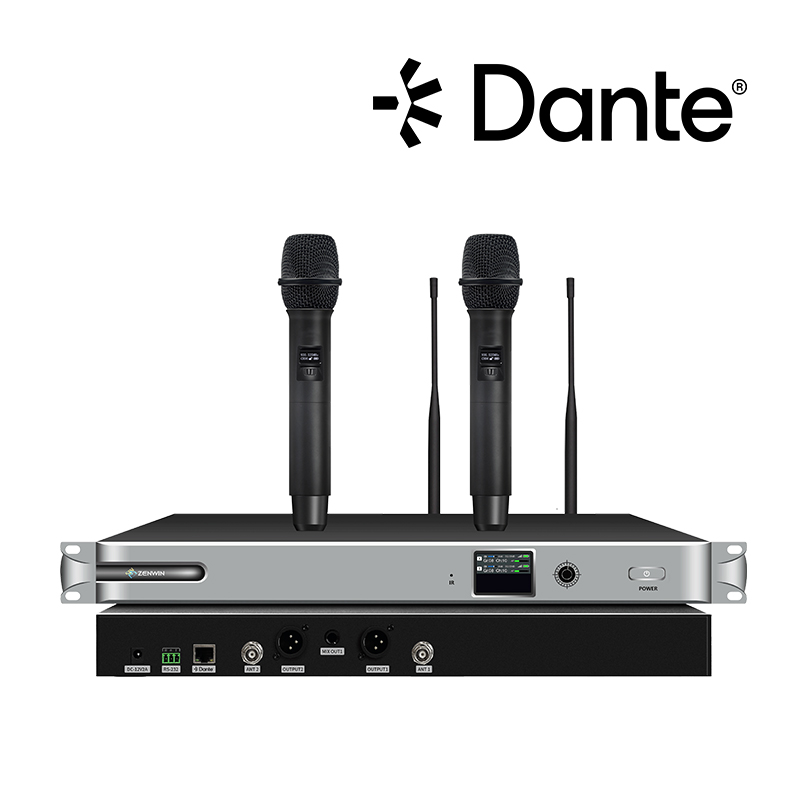

DANTE Wireless Microphone ZW-202D
sketch:
The main unit is equipped with a 2-inch high-definition display and control knobs, and the menu settings are convenient. It is equipped with UHF ultra-wide frequency band. Relying on PLL frequency synthesis, intelligent diversity reception and automatic frequency search and locking technology, the signal is stable and resistant to interference. It supports infrared frequency matching, multi-frequency point adjustment, channel grouping and language switching. It is compatible with dual interfaces for external devices and has noise silence control. It can be flexibly combined with multiple models of wireless microphones.
overview Function and characteristic Technical Parameter
The main unit is equipped with a 2-inch high-definition display and control knobs, and the menu settings are convenient. It is equipped with UHF ultra-wide frequency band. Relying on PLL frequency synthesis, intelligent diversity reception and automatic frequency search and locking technology, the signal is stable and resistant to interference. It supports infrared frequency matching, multi-frequency point adjustment, channel grouping and language switching. It is compatible with dual interfaces for external devices and has noise silence control. It can be flexibly combined with multiple models of wireless microphones.
Function and characteristic

1.The main unit is equipped with a 2-inch display screen and control knobs, allowing for flexible configuration of the main unit's menu options.

2. This system employs an ultra-wide frequency band ranging from 618 MHz to 695 MHz.

3. The main unit features automatic frequency selection and intelligent antenna diversity reception. This device adopts an antenna diversity design to enhance the effective signal reception range and stability.

4. This system has an automatic channel search function. When the button is pressed, the system will automatically search for and lock onto a channel that is free from interference for uninterrupted operation.

5. You can group and modify channels, switch between Chinese and English, and lock panel settings, making the operation more flexible.

6. The equipment features a TFT display with high contrast and wide viewing angle, capable of displaying frequency data, volume levels, automatic channel lock tracking, and other functions.

7. High-precision phase-locked loop (PLL) frequency synthesis technology offers superior frequency stability and excellent frequency selection characteristics; it can enable multiple channels and multiple functions in a single system.

8. The audio output is equipped with two types of connectors: XLR balanced output and 6.3 non-balanced output. This design facilitates the connection of the device to various external devices.

9. Equipped with [IR] infrared automatic frequency synchronization function;

10. The "noise detection" silent control function can effectively block the noisy radio frequency interference in the working environment.

11. Each channel has 50 adjustable frequency points, and the two channels together have 100 adjustable frequency points.

12. According to the customer's requirements, high-quality wireless microphones of the same brand, including wireless handheld units, wireless waist pouches and wireless desktop units, can be provided as optional accessories.


Technical Parameter
Receiver
Frequency range
618 – 695 MHz;
Frequency stability
0.005%;
Modulation method
FM;
Maximum offset
+/- 45 KHz;
(Overall S/N)
> 100 dB;
Overall THD
< 0.7% @ 1 KHz;
Frequency response
60 Hz – 18 KHz ± 3 dB;
Effective working distance (open area)
150 meters;
Antenna interface
BNC, +8V/140mA output;
Audio interface
6.3mm unbalanced mixed audio output (dual channels), independent XLR balanced audio output;
Ethernet port
Supports Dante audio protocol;
Communication interface
RS-232 (fast connector);
Power supply; DC 12V / 12W;

Microphone
Frequency response; 30Hz-18KHz;
Input impedance; 600Ω;
Maximum sound pressure level; 130 dB (THD<3%);
Equivalent noise; 25 dB-A;
Antenna program; Built-in professional antenna for microphone;
Carrier frequency band; UHF618 – 695MHz;
RF output
20mW / 1mW;
Oscillation mode
PLL frequency synthesis technology;
Harmonic radiation
Below the main wave by more than 45dBm;
Microphone pickup
Moving coil (handheld);
Sound pickup directionality
Heart-shaped;
Power supply
2 AA batteries;
Operating current
110mA;
