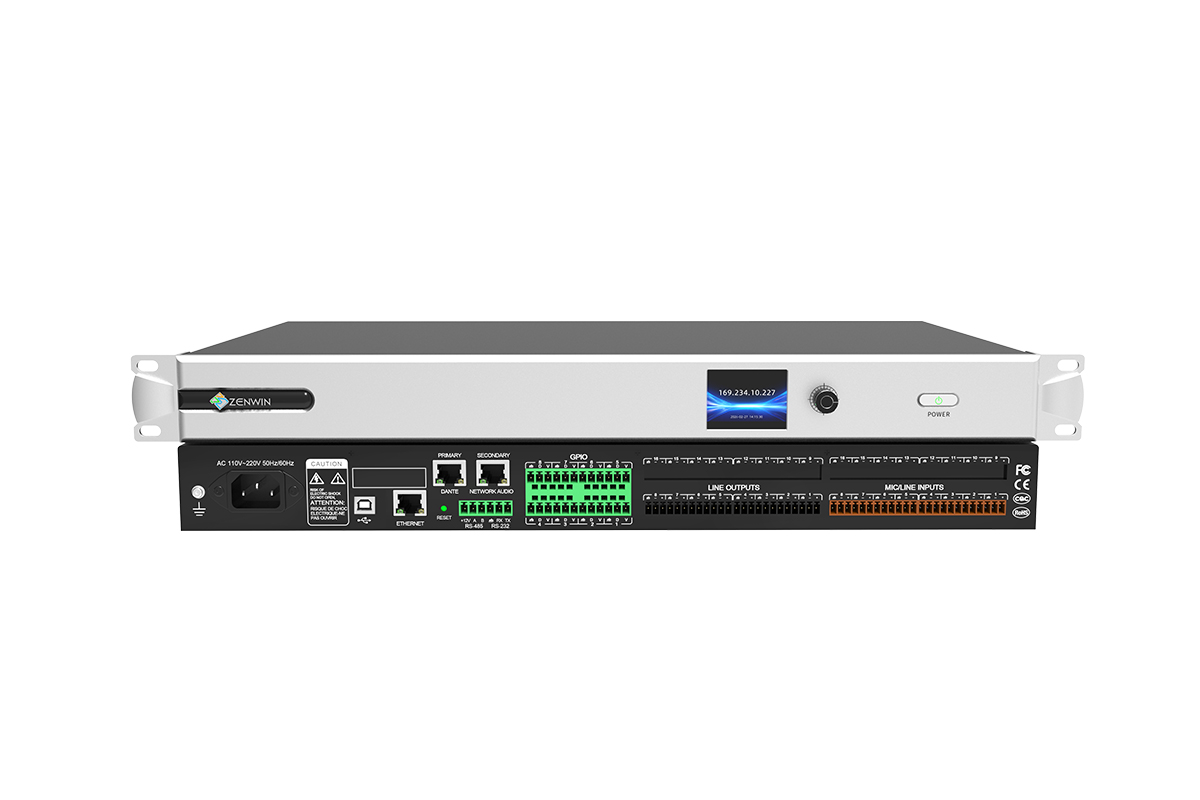

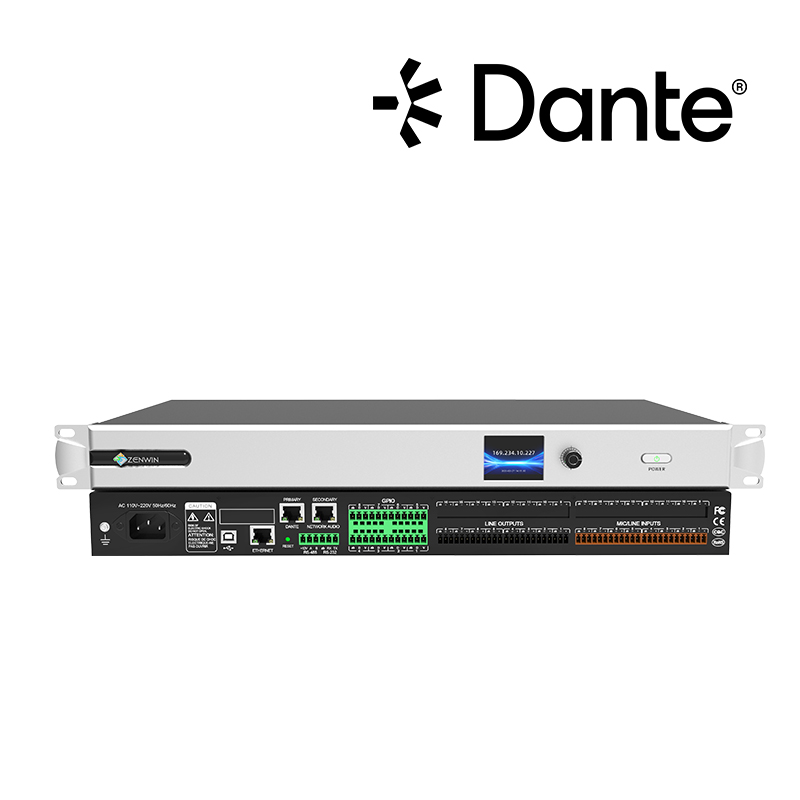

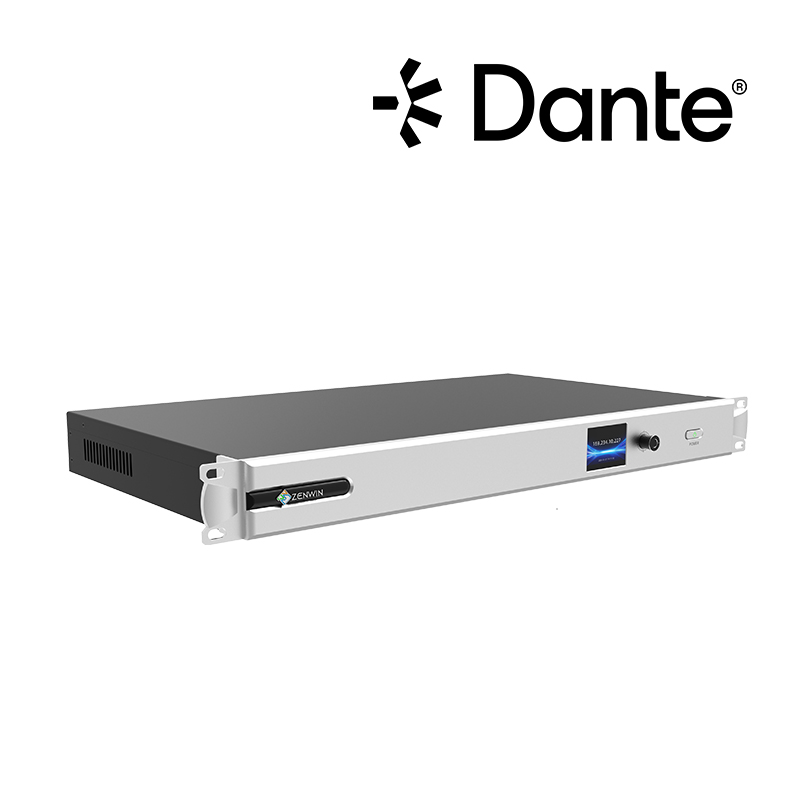

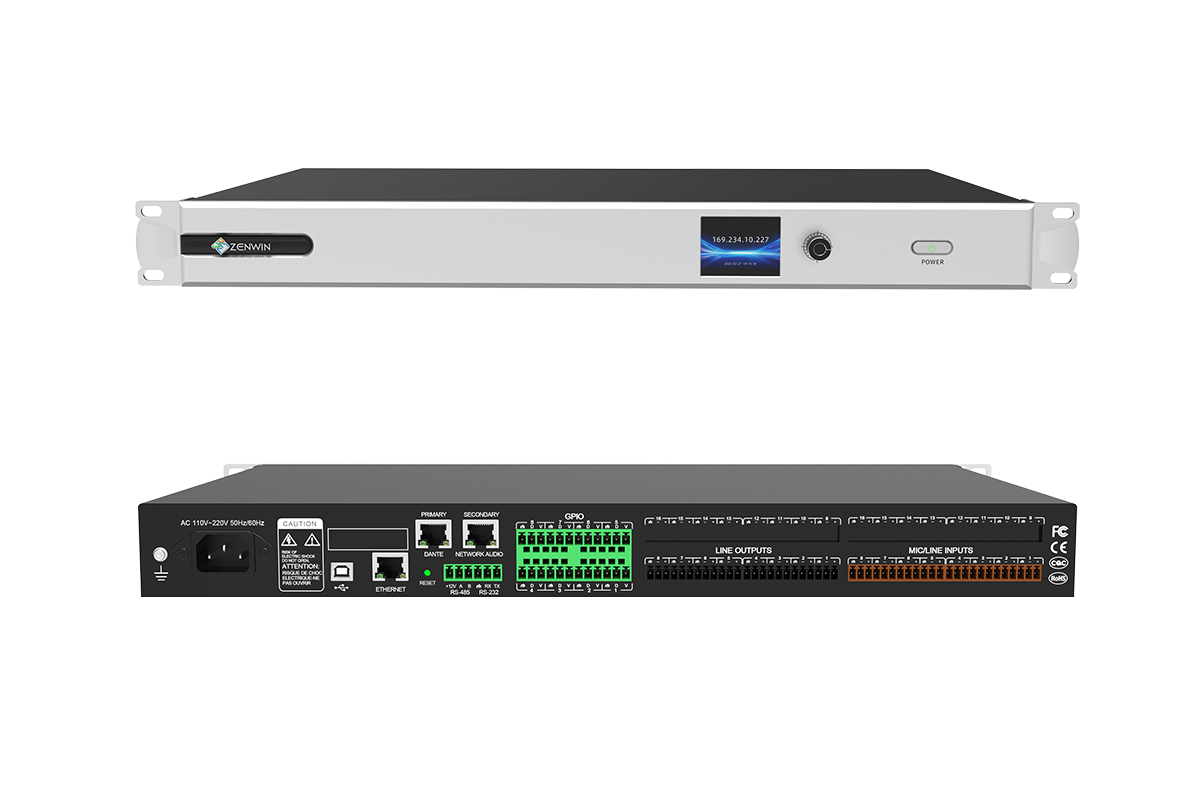

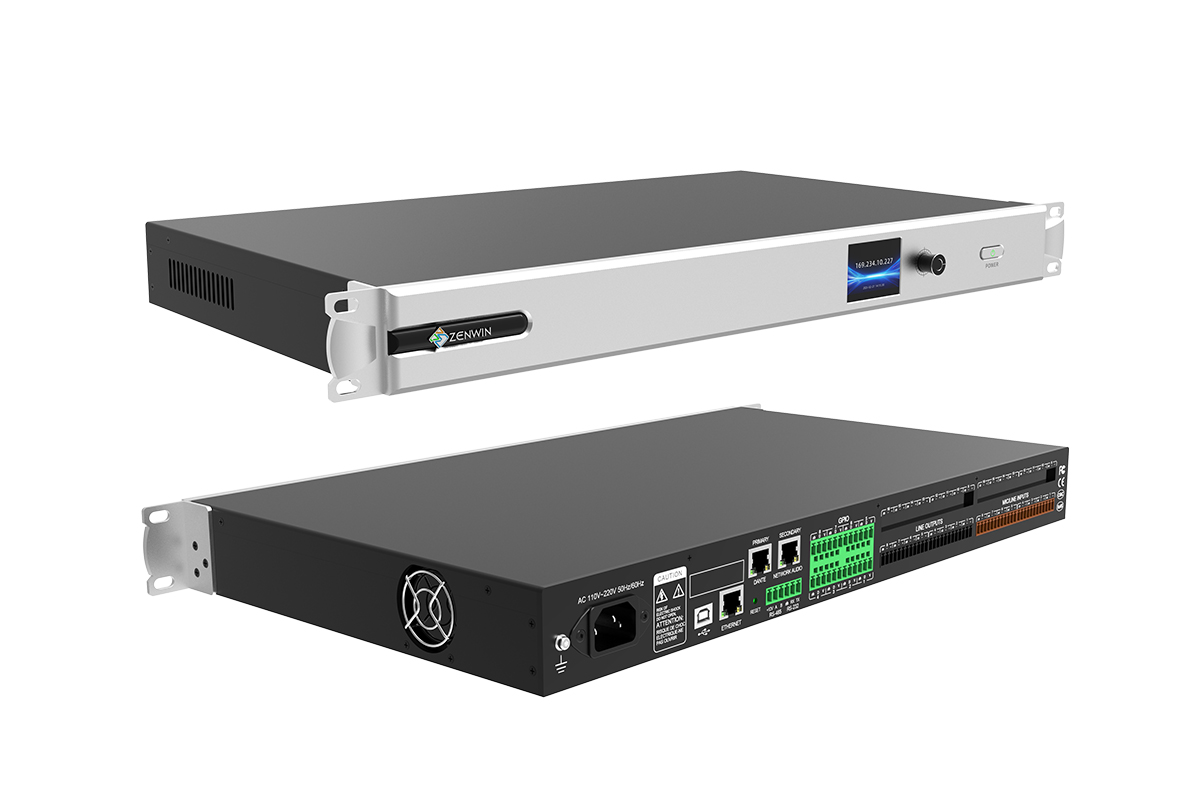

Digital audio processor TNN-0808D
sketch：
programming does not require wiring or rewiring. The operation is simple and intuitive. Equipped with multiple professional audio algorithms, the sound quality processing effect is excellent. The dual-color marking is convenient for status troubleshooting. Compatible with multiple models for online connection, it supports data intercommunication and three types of meeting modes. It has multi-protocol control and web-based management. The standard configuration includes dual-machine hot backup, and faults can be automatically switched. The system operates stably and reliably.
overview Function and characteristic Technical Parameter
programming does not require wiring or rewiring. The operation is simple and intuitive. Equipped with multiple professional audio algorithms, the sound quality processing effect is excellent. The dual-color marking is convenient for status troubleshooting. Compatible with multiple models for online connection, it supports data intercommunication and three types of meeting modes. It has multi-protocol control and web-based management. The standard configuration includes dual-machine hot backup, and faults can be automatically switched. The system operates stably and reliably.
Function and characteristic

Main Features:

Multi-Scenario Drag-and-Drop Architecture

An open platform that auto-loads required modules by scenario, allowing fast drag-and-drop DSP configuration without manual wiring.

Auto-Snap Programming Connections

Modules automatically snap into correct nodes when dragged, enabling quick programming without deleting or reconnecting signal lines.

Advanced Audio Processing Technologies

Built-in AEC, adaptive filters, crossovers, and FIR algorithms deliver high-quality, stable audio performance across diverse application scenarios.

DSP Module Color Indicators

Two color states clearly show module signal on/off status, simplifying troubleshooting and improving system visibility.

Multi-Device Operation & Scenario Switching

Supports multiple device models with cross-device copy/paste and built-in DSP modes for meetings, hybrid conferencing, and BGM.


Technical Parameter
Processor
ADI SHARC 21569 @ 1 GHz SIMD;
Sampling Rate / Bit Depth
48 kHz / 24-bit;
Analog I/O Channels
8 × 8;
Dante I/O Channels
32×32;
Input Gain
0 / 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24 / 27 / 30 / 33 /36 / 39 / 42 / 45 / 48 dB;
Phantom Power
48 V;
A/D Dynamic Range (A-weighted)
113 dB;
D/A Dynamic Range (A-weighted)
113 dB;
Frequency Response
20 Hz – 20 kHz (+0.05 / -0.5 dB);
THD+N
≤0.002% (1 kHz, +4 dBu, A-weighted);
Maximum Level
+18 dBu;
Output Level
0 / -6 dB;
Common Mode Rejection (CMRR)
＞67dB@1kHz，0dBu;
Output Crosstalk
-120 dB @ 1 kHz;
Input Impedance (Balanced)
5.4 kΩ;
Output Impedance (Balanced)
100 Ω;
Power Supply
AC 110–240 V, 50/60 Hz;
Dimensions (W × D × H)
482 × 260 × 45 mm;
Weight
3.0 kg;
USB Port
1 × USB Type-B;
Ethernet Port
1×LAN (RJ45);
Analog Inputs
8 × balanced audio (Phoenix terminal);
Analog Outputs
8 × balanced audio (Phoenix terminal);
Serial Ports
1 × RS-232, 1 × RS-485 (Terminal block);
GPIO
8 × GPIO (Terminal block);
