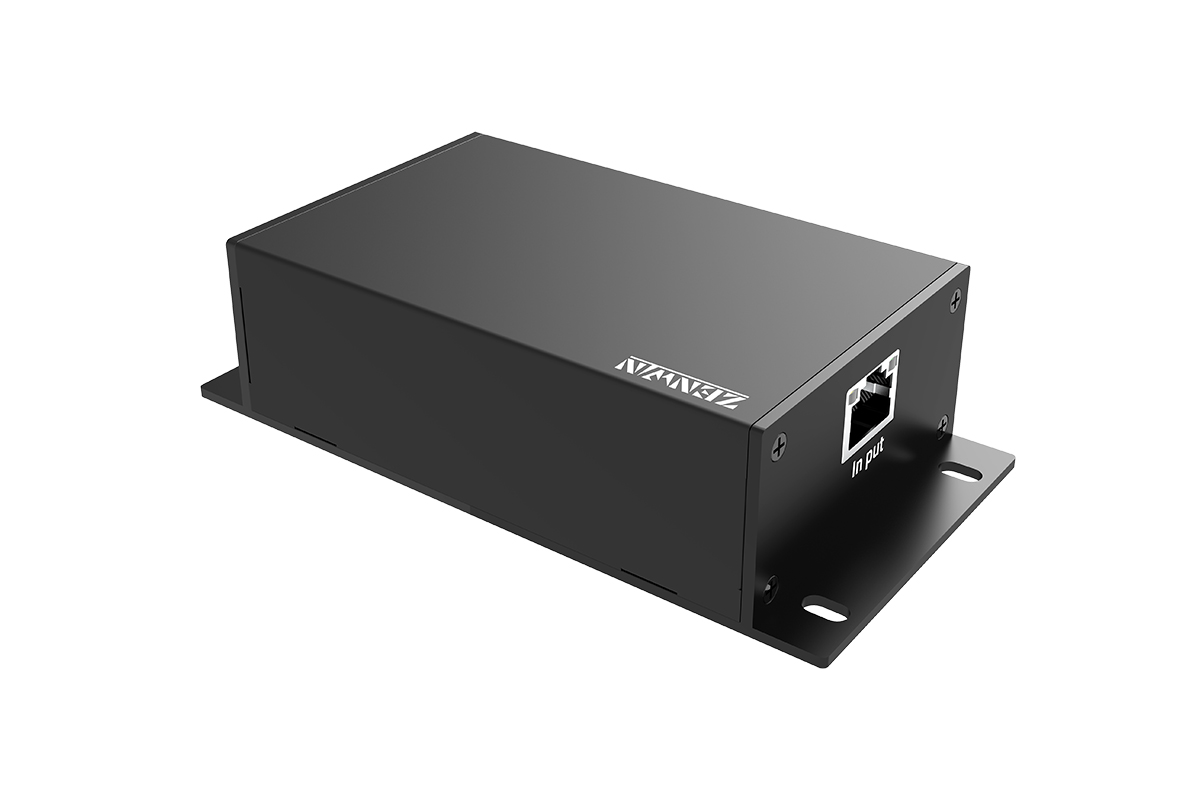

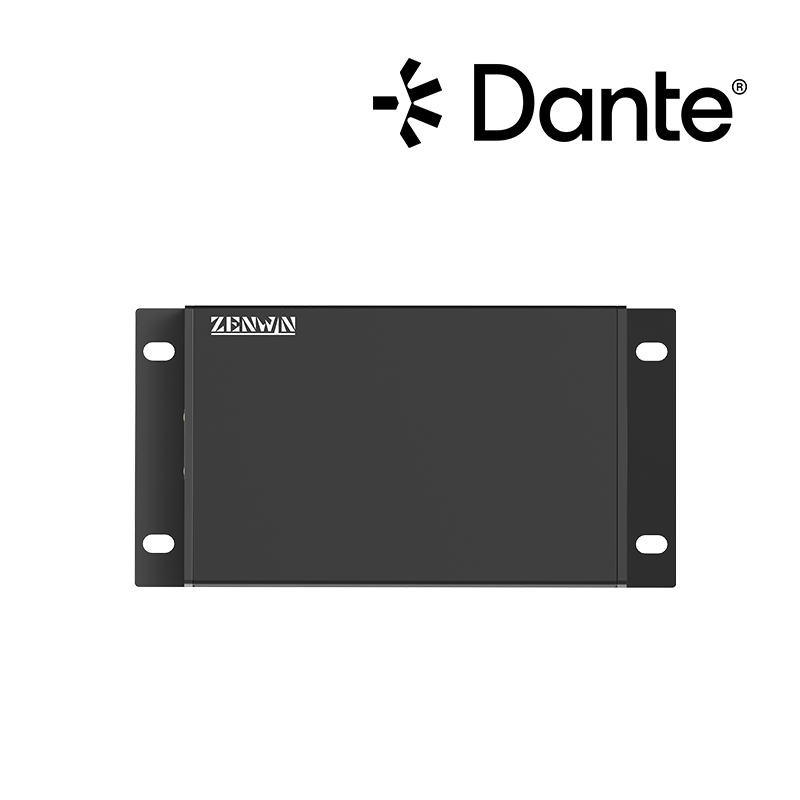

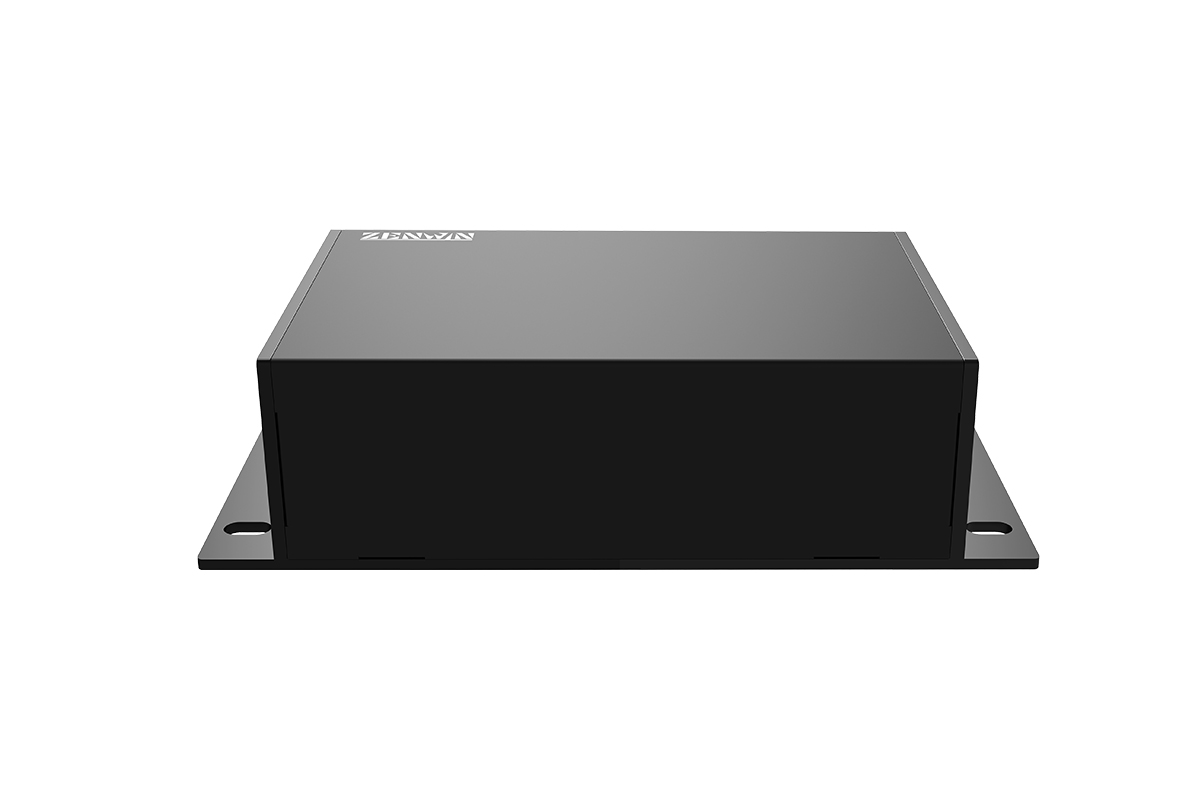

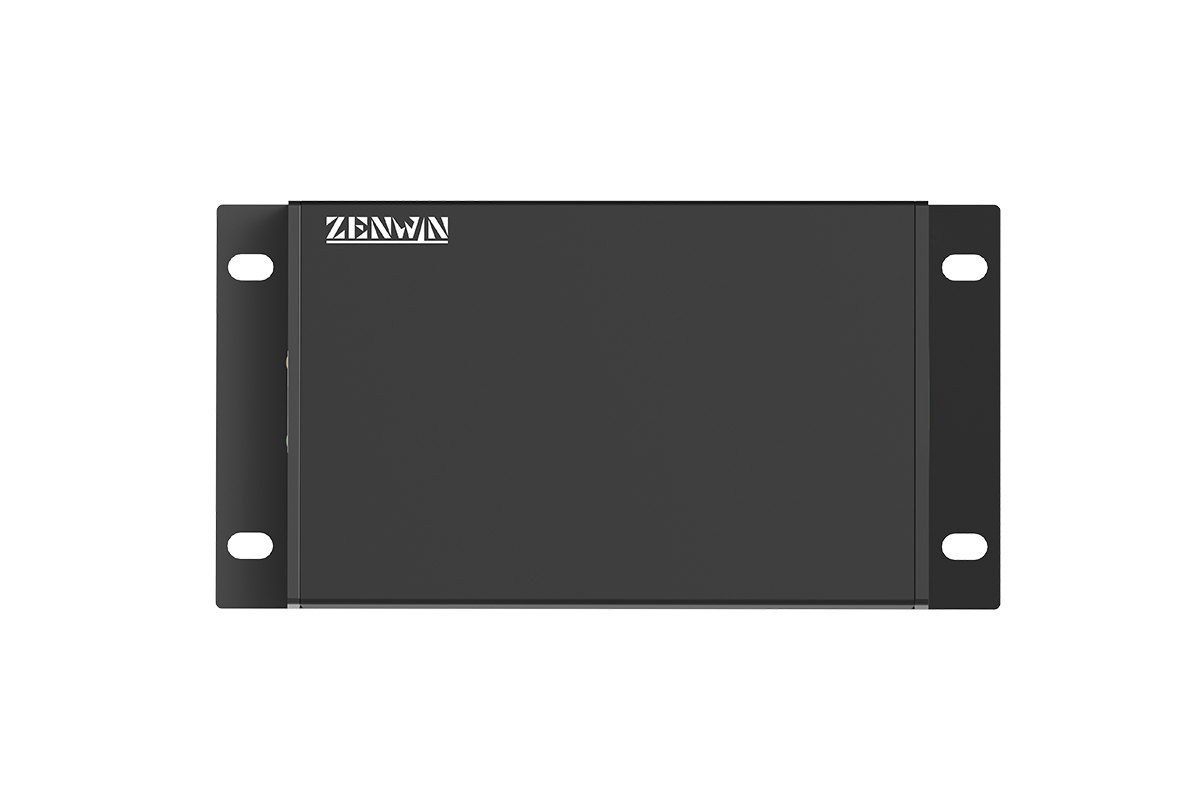

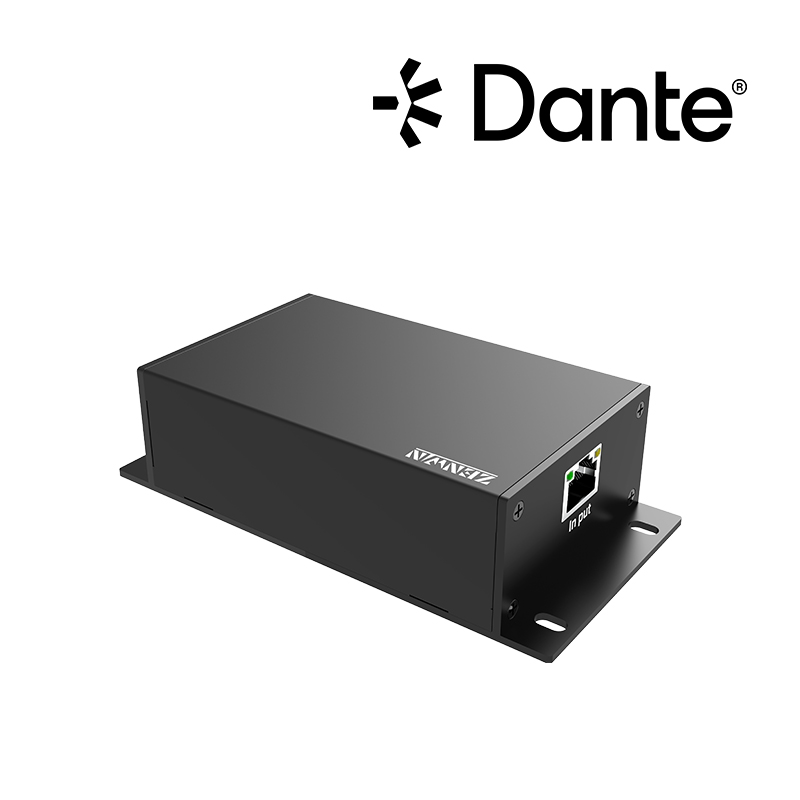

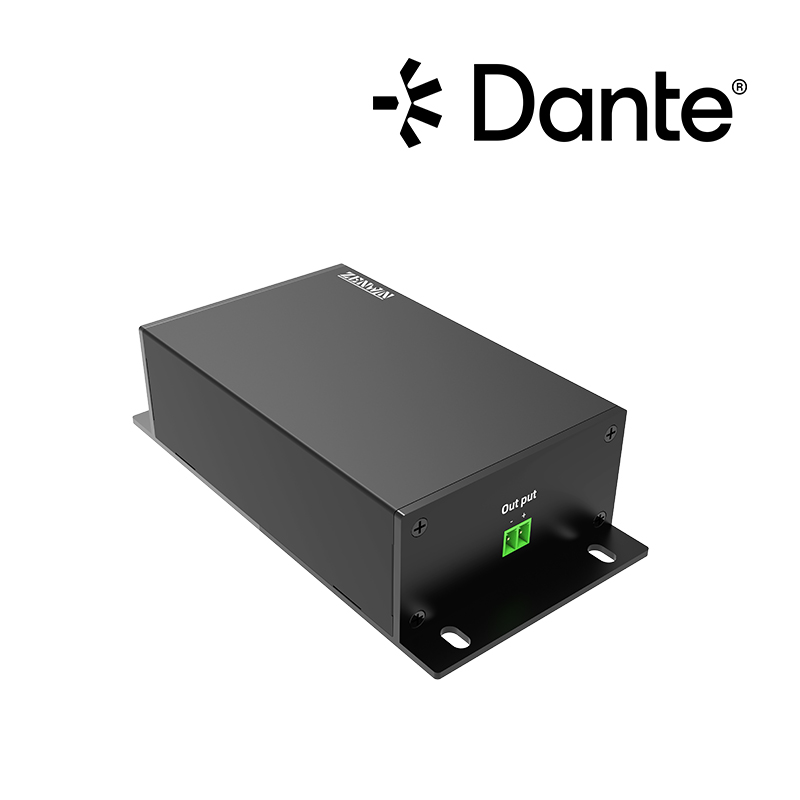

PoE Dante Power Amplifier POE-120W-1
sketch:
The POE-120W-1 PoE Dante Power Amplifier is flexible use with only one network cable for power supply(PoE) and digital audio signal transmission. It could be embedded in the speakers, cabinets, on wall, under the table and ect.
overview Function and characteristic Technical Parameter
The POE-120W-1 PoE Dante Power Amplifier is flexible use with only one network cable for power supply(PoE) and digital audio signal transmission. It could be embedded in the speakers, cabinets, on wall, under the table and ect.
Function and characteristic

Features:

1. Designed to provide solutions for small and medium-sized fixed installations and commercial applications connected to Dante networks.

2. Features simple wiring, flexible use and convenient management by one Network cable for both power supply(PoE) and digital audio signal transmission. It is flexible for various applications and can be embedded in different types of speakers, cabinets, on walls, under the tables, or in ceiling spaces for use with passive speakers.

3. The speaker's gain, EQ, crossover, limiting and other functions can be adjusted individually by DSP software.

4. Remotely monitor the speaker's operating temperature, level and fault feedback.

5. Complete parameter setting and monitoring of all speakers in the system in the same interface.


Technical Parameter
Output Power
60W @ 8Ω; 120W @ 4Ω (Peak );

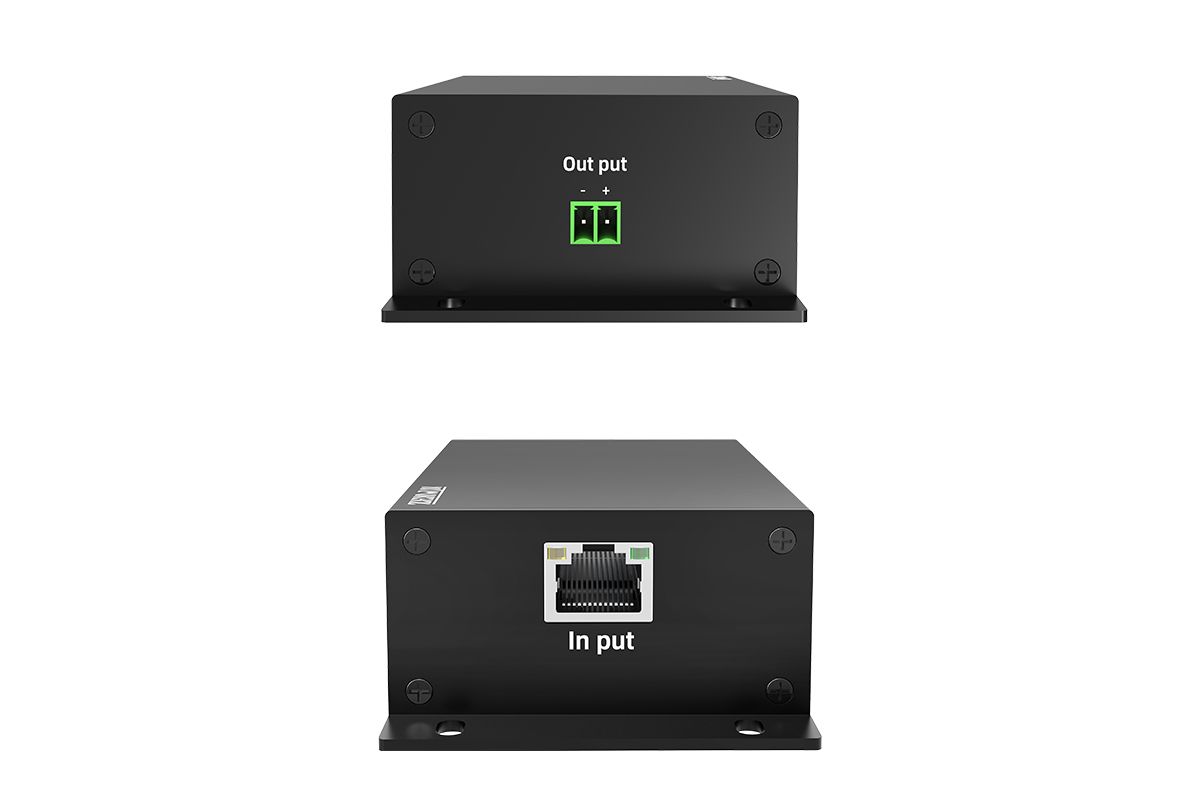

Network Interface
1 × RJ45 (Dante, Cat-6);

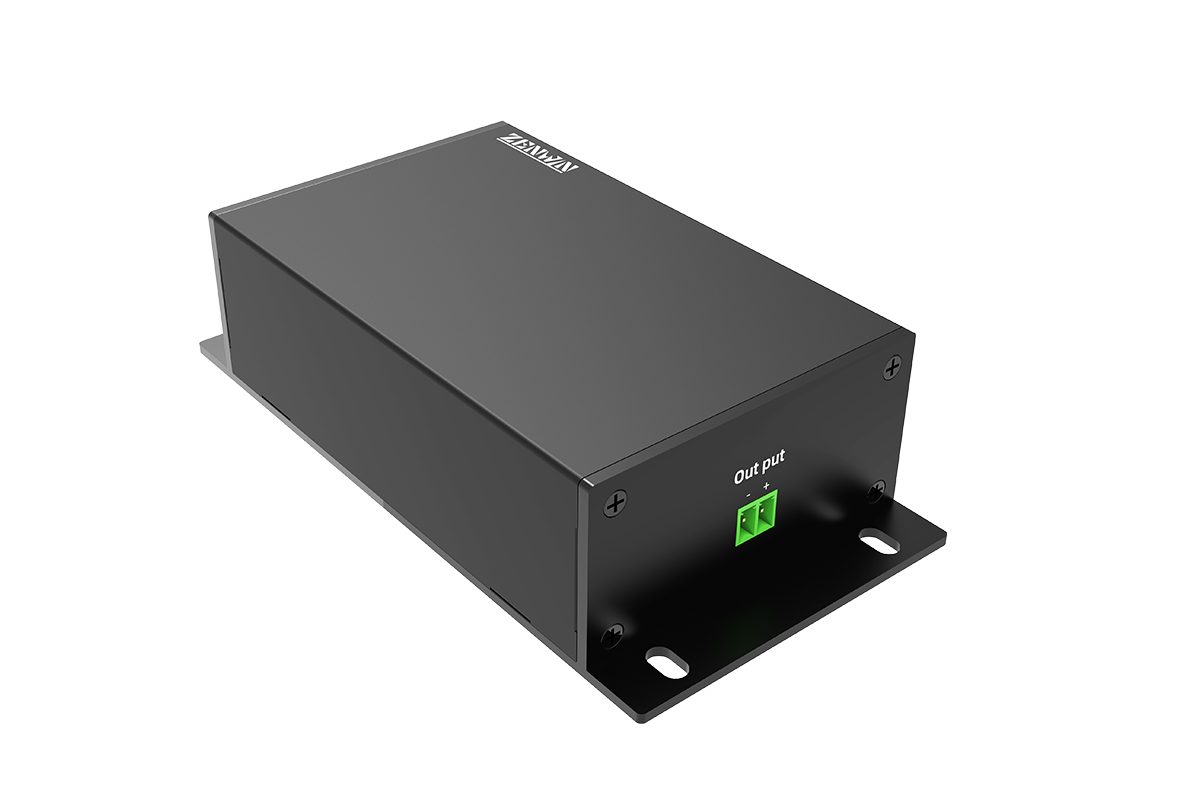

Audio Output Connector
2-pin Phoenix Terminal Block;
Data Rate
100 / 1000 Mbps;
Frequency Response
20 Hz – 20 kHz;
THD+N
< 0.30%;
Signal-to-Noise Ratio (SNR)
> 100 dB;
Noise Floor
< 200 μV;
Efficiency
> 76%;
Power Supply
PoE;
Dimensions (W × H × D)
178 × 82 × 44 mm ;
Net Weight
0.43 kg;
