Dante Bluetooth Wall Plate ZW22T
sketch：

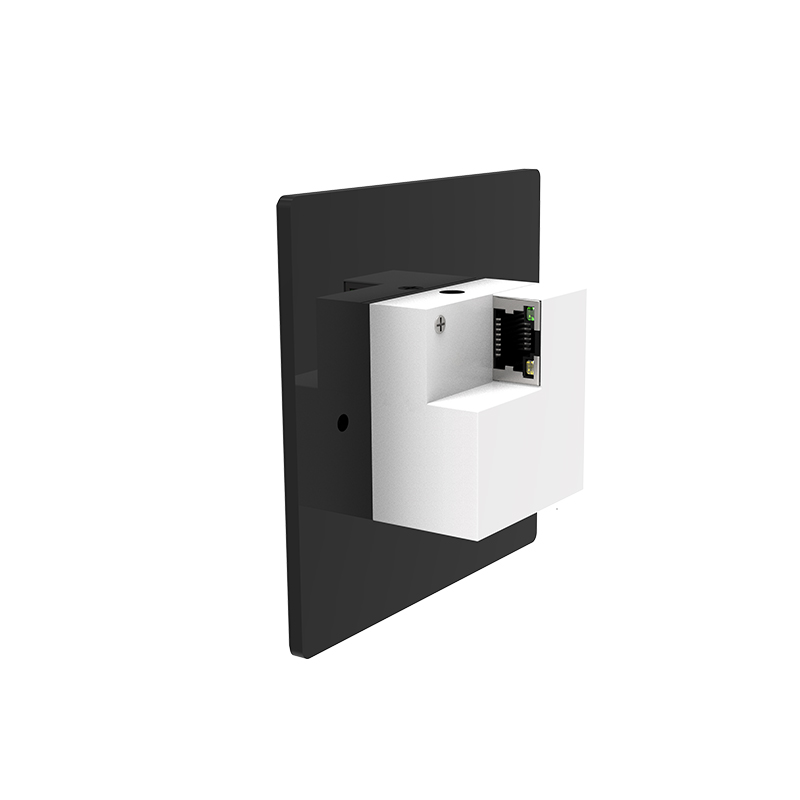

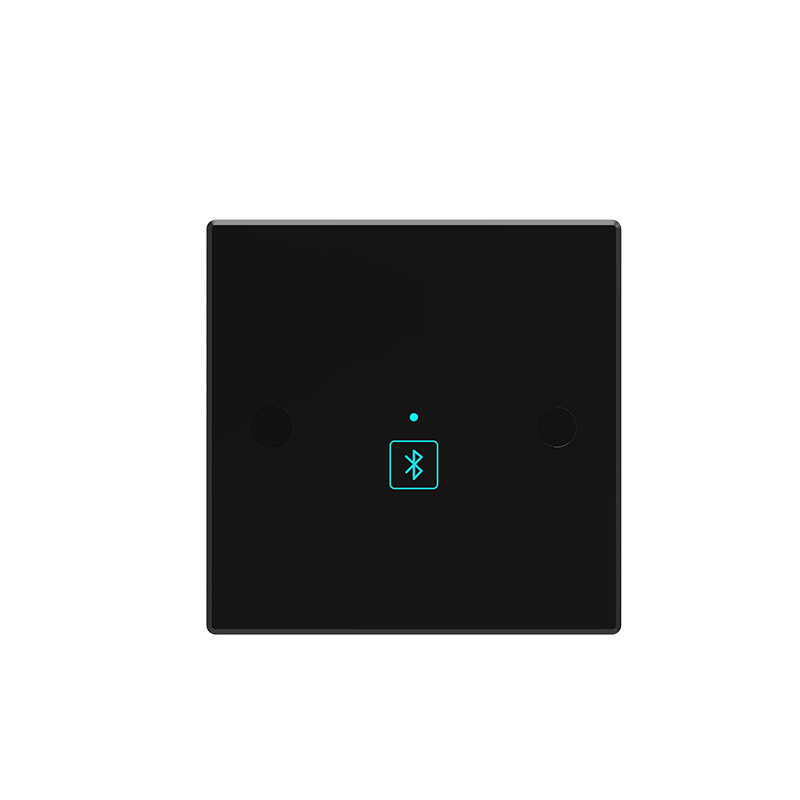

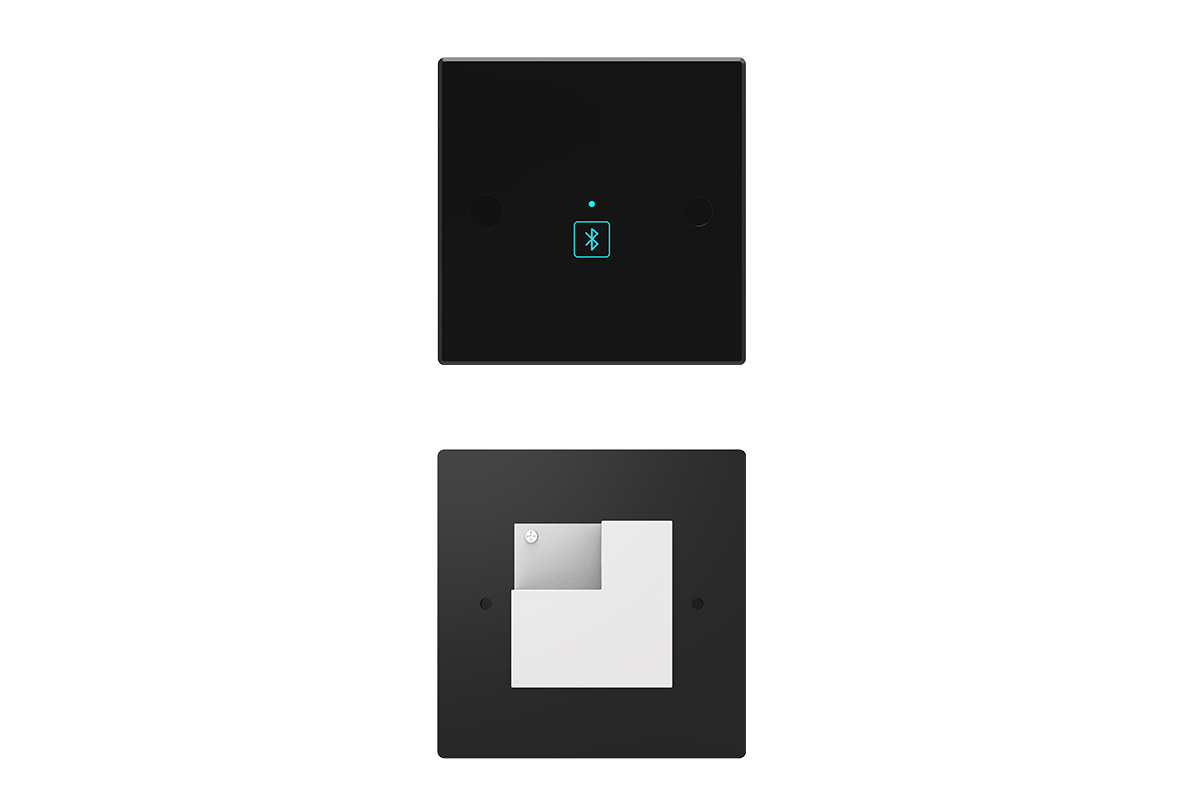

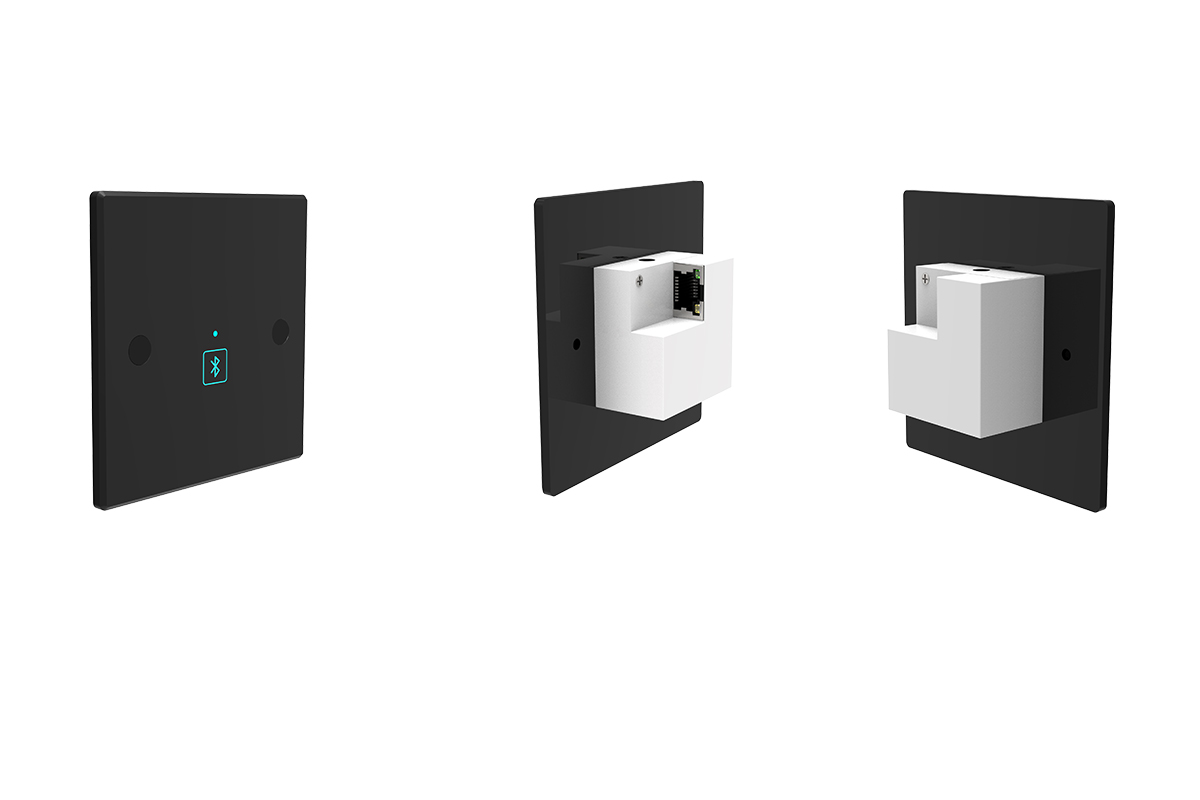

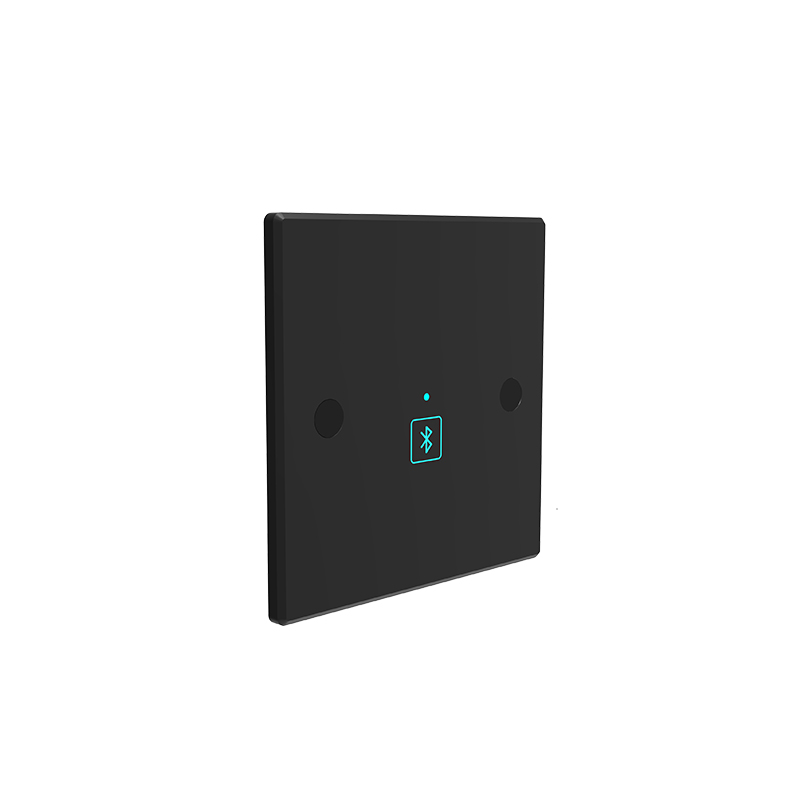

The ZW22T is a wall-mounted audio interface that converts Bluetooth audio signals into Dante/AES67 digital streams. Powered by 802.3af Class 1 PoE, it fits a standard 86-type wall box and uses a single network cable for power and audio. A touch button enables quick Bluetooth pairing with status indication, and the device supports customizable Bluetooth naming with low-latency Dante transmission.
overview Function and characteristic Technical Parameter
The ZW22T is a wall-mounted audio interface that converts Bluetooth audio signals into Dante/AES67 digital streams. Powered by 802.3af Class 1 PoE, it fits a standard 86-type wall box and uses a single network cable for power and audio. A touch button enables quick Bluetooth pairing with status indication, and the device supports customizable Bluetooth naming with low-latency Dante transmission.
Function and characteristic

Features：

1. Converts Bluetooth Input to Dante/AES67

2. PoE powered (802.3af Class 1) for simplified wiring

3. Standard 86 mm wall-mount installation

4. Touch button for Bluetooth pairing & status indication

5. Customizable Bluetooth device name

6. Low latency audio transmission (<2 ms)

7. Stable, reliable Dante/AES67 digital audio networking



Technical Parameter
Audio Conversion
Bluetooth to Dante;
Bluetooth Channels
2;
Dante Channels
2;
Sample Rate
48 kHz;
Bit Depth
24-bit;
Latency
< 2 ms;
Bluetooth Control
Touch pairing button with status indicator;
Network Interface
1 × RJ45 (Dante / AES67);
Power Supply
PoE (IEEE 802.3af, Class 1);
Installation
Standard 86 Wall Mount Box;
