Dante Bluetooth/RCA Wall Plate ZW22D
sketch：

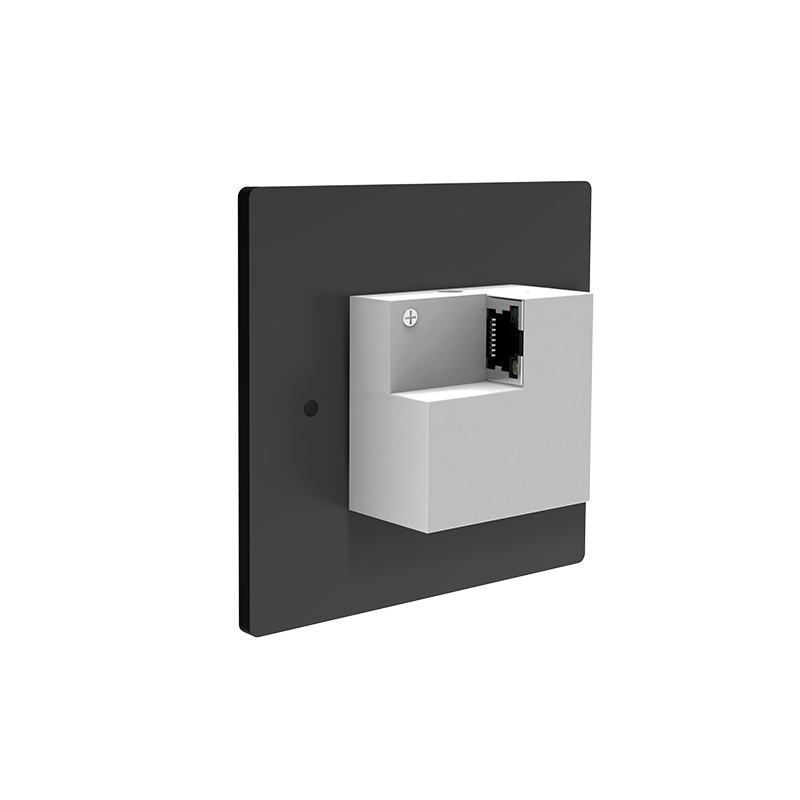

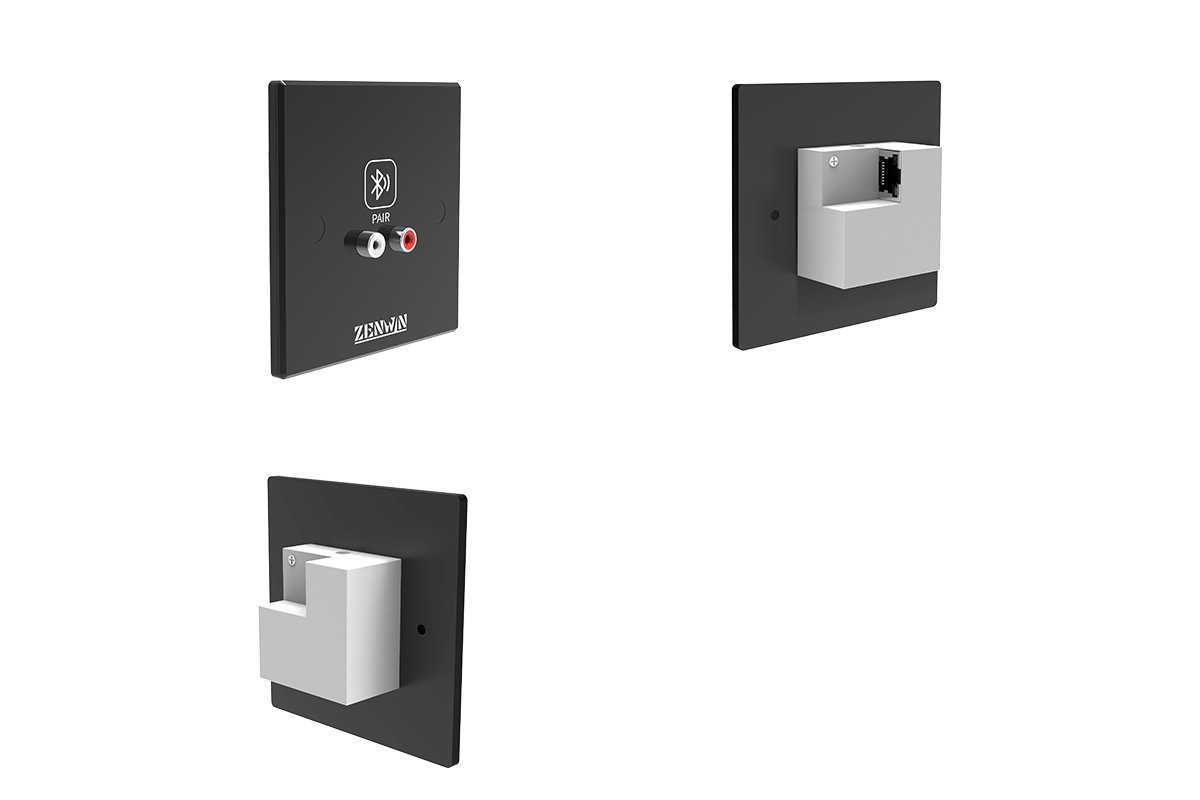

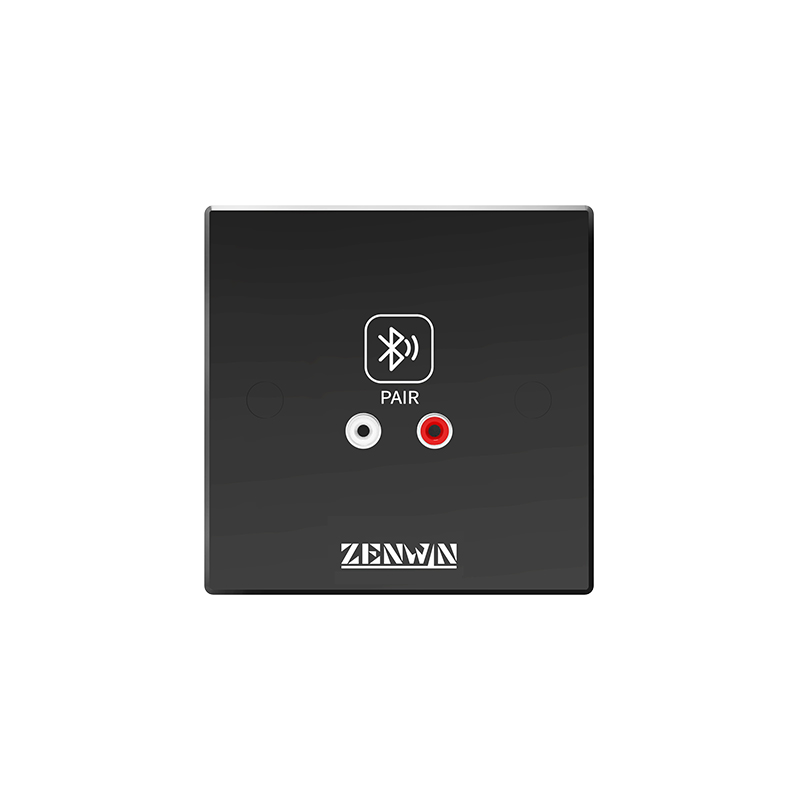

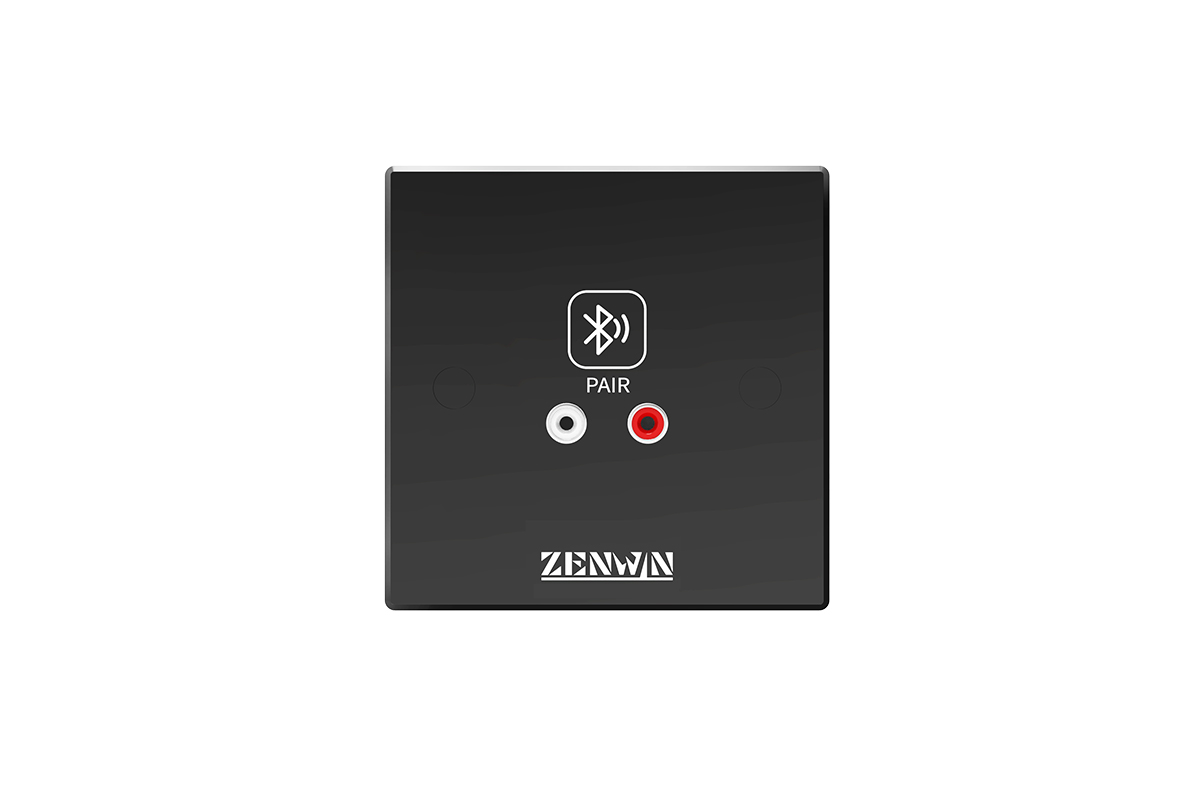

The ZW22D is a wall-mounted audio interface that converts Bluetooth audio or stereo RCA signals into Dante/AES67 digital streams. Bluetooth input is prioritized for automatic routing when connected. Powered by 802.3af Class 1 PoE, it fits a standard 86-type wall box and uses a single network cable for power and audio. A touch button enables quick Bluetooth pairing with status indication, and the device supports customizable Bluetooth naming with low-latency Dante transmission.
overview Function and characteristic Technical Parameter
The ZW22D is a wall-mounted audio interface that converts Bluetooth audio or stereo RCA signals into Dante/AES67 digital streams. Bluetooth input is prioritized for automatic routing when connected. Powered by 802.3af Class 1 PoE, it fits a standard 86-type wall box and uses a single network cable for power and audio. A touch button enables quick Bluetooth pairing with status indication, and the device supports customizable Bluetooth naming with low-latency Dante transmission.
Function and characteristic

Features：

1. Converts Bluetooth / Stereo Line Input to Dante/AES67

2. Bluetooth signal priority for seamless audio takeover

3. PoE powered (802.3af Class 1) for simplified wiring

4. Standard 86 mm wall-mount installation

5. Touch button for Bluetooth pairing & status indication

6. Customizable Bluetooth device name

7. Low latency audio transmission (<2 ms)

8. Stable, reliable Dante/AES67 digital audio networking



Technical Parameter
Audio Conversion
Bluetooth / Stereo Analog to Dante;
Priority
Bluetooth input has priority;
Bluetooth Channels
2;
Dante Channels
2;
Analog Channels
2 × Stereo；
Sample Rate
48 kHz；
Bit Depth
24-bit；
Latency
< 2 ms；
Bluetooth Control
Touch pairing button with status indicator；
Device Name
Customizable Bluetooth name；
Network Interface 1 × RJ45 (Dante / AES67)
Power Supply
PoE (IEEE 802.3af, Class 1)；
Installation
Standard 86 Wall Mount Box；
