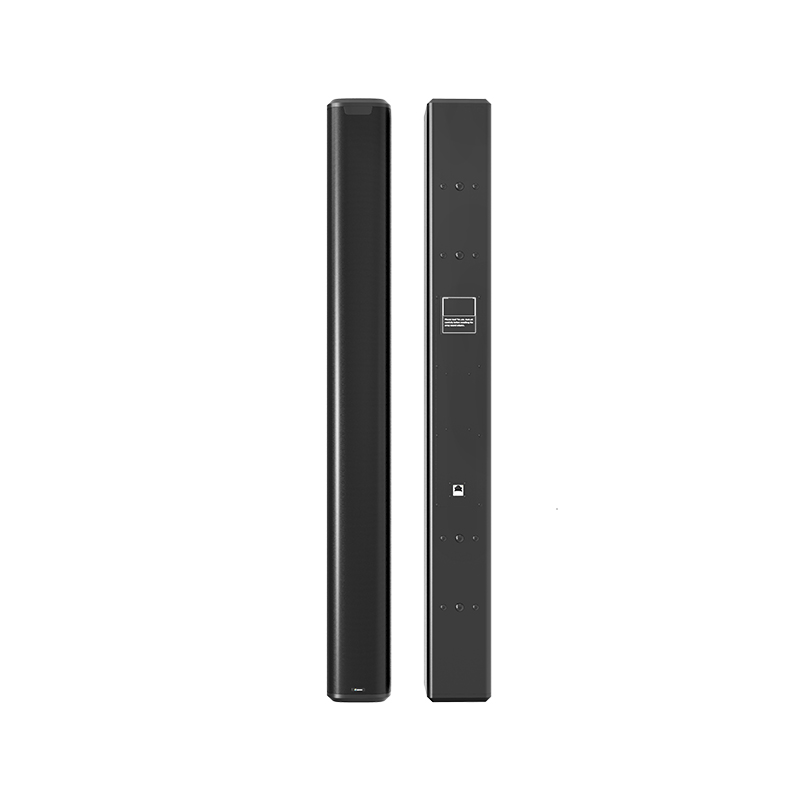

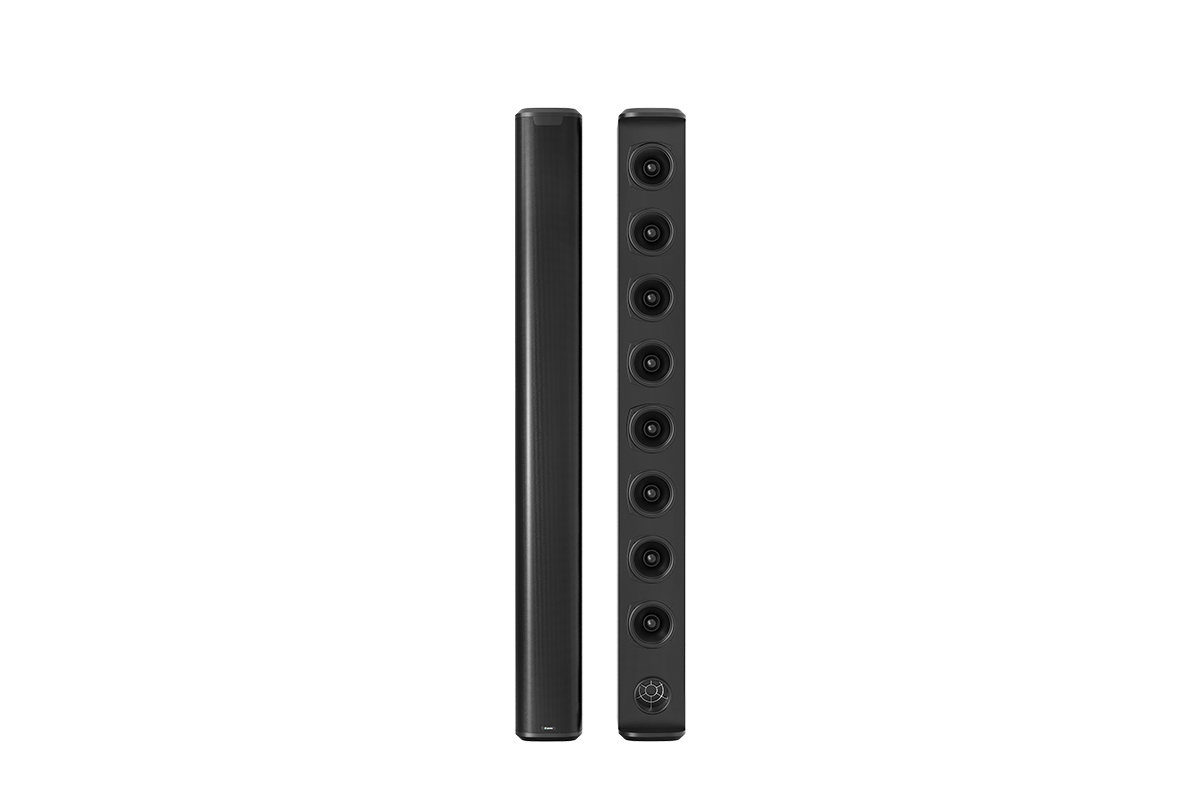

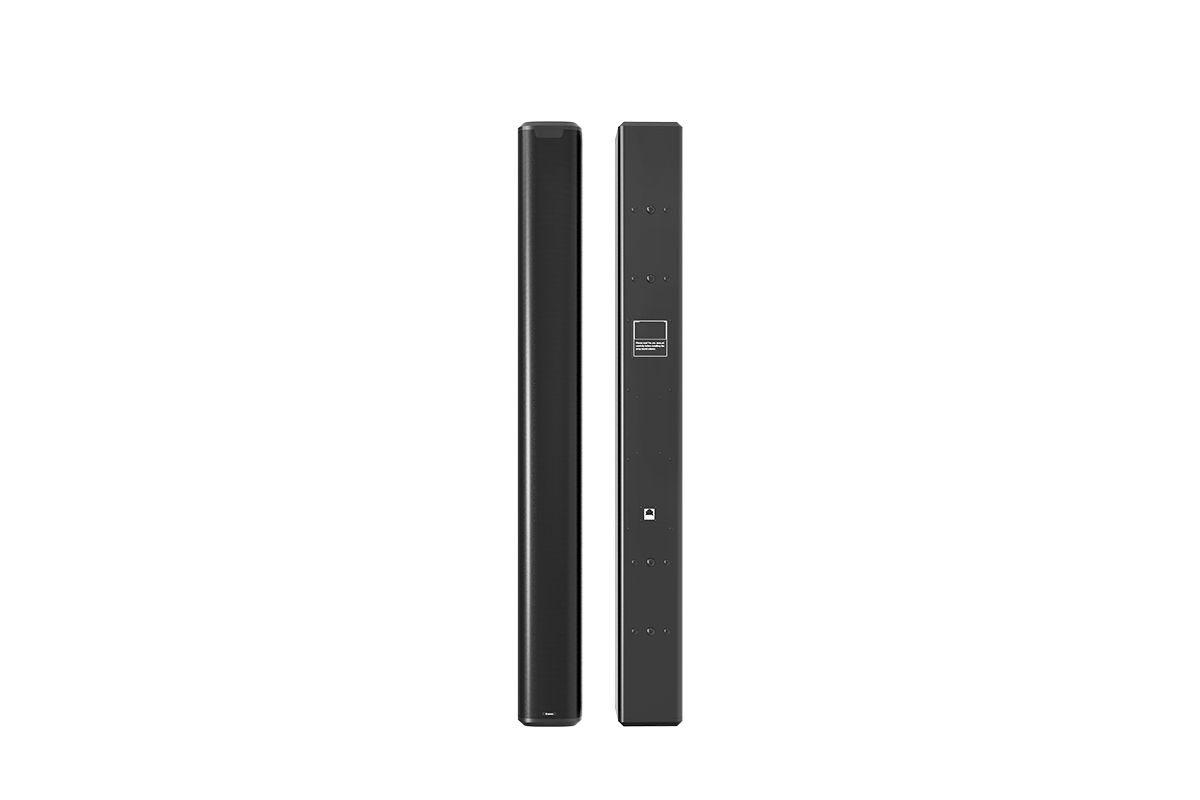

Dante Column Speaker CBT-308D
sketch:
Model: CBT-308D
Type of power amplifier: POE active power amplifier;
Rated power: 120W;
Peak power: 240W;
Frequency range: 140Hz - 19KHz (±3dB);
Distortion degree: 500Hz - 10KHz / 3dB; below rated power: <3% (8ohms and 4ohms);
Input impedance: 8Ω;
Input interface: Dante network port (RJ45) × 1;
Horizontal coverage: 110°;
Vertical coverage: 60°;
Full frequency (Treble configuration): 3" × 8;
Color: Black (Black);
Hanging mode: Standard hanging piece (optional);
Power supply: AC 220v (±10%);
Size (mm): 98 (W) × 153 (D) × 910 (H);
Weight: 8 KG;
overview Function and characteristic Technical Parameter
Model: CBT-308D
Type of power amplifier: POE active power amplifier;
Rated power: 120W;
Peak power: 240W;
Frequency range: 140Hz - 19KHz (±3dB);
Distortion degree: 500Hz - 10KHz / 3dB; below rated power: <3% (8ohms and 4ohms);
Input impedance: 8Ω;
Input interface: Dante network port (RJ45) × 1;
Horizontal coverage: 110°;
Vertical coverage: 60°;
Full frequency (Treble configuration): 3" × 8;
Color: Black (Black);
Hanging mode: Standard hanging piece (optional);
Power supply: AC 220v (±10%);
Size (mm): 98 (W) × 153 (D) × 910 (H);
Weight: 8 KG;
Function and characteristic


Technical Parameter
Type of power amplifier
POE active power amplifier;
Rated power
120W;
Peak power
240W;
Frequency range
140Hz - 19KHz (±3dB);
Distortion degree
500Hz - 10KHz / 3dB; below rated power
Input impedance
8Ω;
Input interface
Dante network port (RJ45) × 1;
Horizontal coverage
110°;
Vertical coverage
60°;
Full frequency (Treble configuration)
3" × 8;
Color
Black (Black);
Hanging mode
Standard hanging piece (optional);
Power supply
AC 220v (±10%);
Size (mm)
98 (W) × 153 (D) × 910 (H);
Weight
8 KG;
