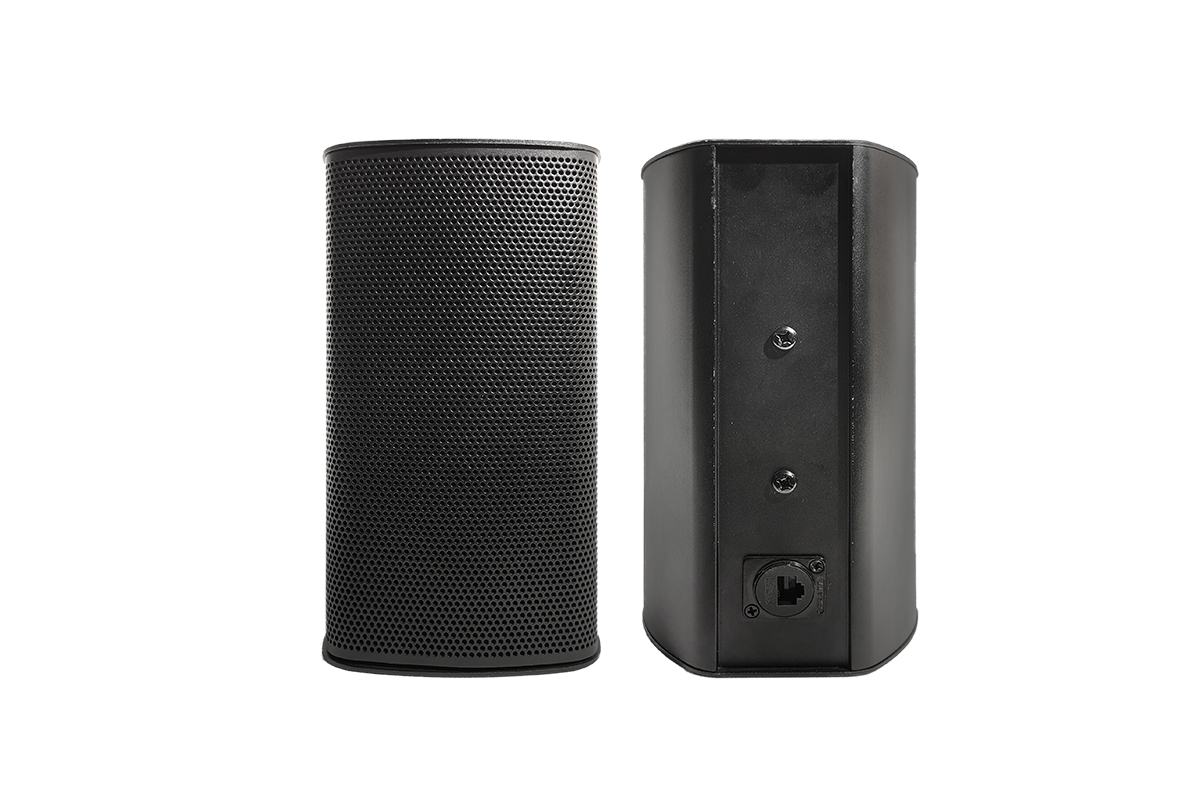

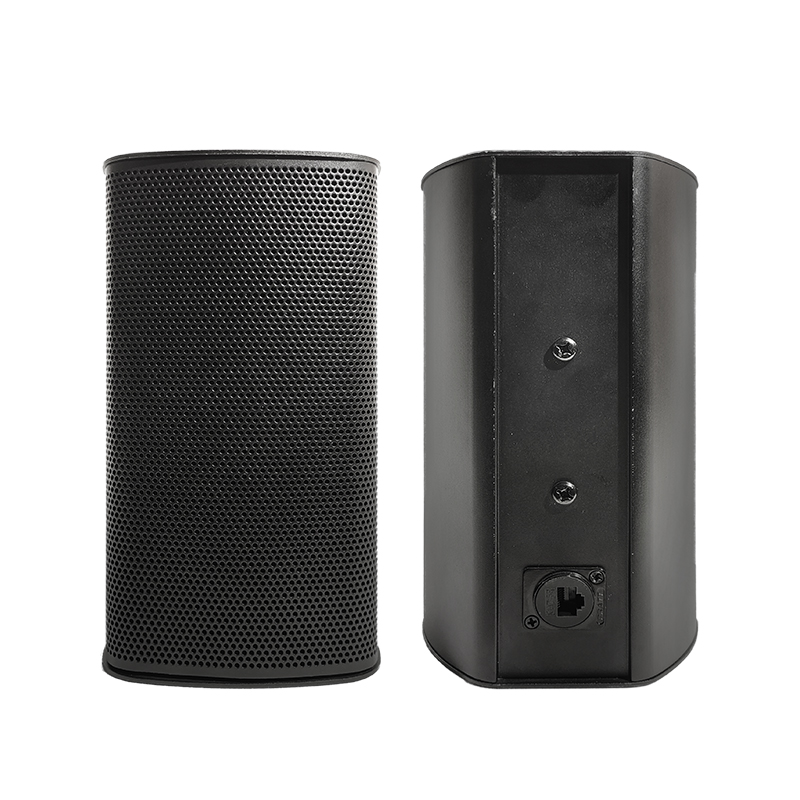

Dante Column Speaker ZW-24I
sketch:
Frequency response: 120Hz - 19KHz;
Component: 2x4" full-range speakers;
Sensitivity: 95dB;
Diffusion angle: H100° x V15°;
Nominal power: 90W;
Peak power: 360W;
Maximum sound pressure level: 121dB;
Audio input: Dante;
Operating mode: Class D;
Transmission bandwidth: 100M/1000M bps;
Connection socket: Single RJ-45;
Input interface: Dante network port (RJ45) × 1;
Power supply (Power Supply): POE power supply
Size: 125x139x224mm;
Net weight: 3.0kg;
Material: Aluminum profile;
Accessories: Wall bracket;
overview Function and characteristic Technical Parameter
Frequency response: 120Hz - 19KHz;
Component: 2x4" full-range speakers;
Sensitivity: 95dB;
Diffusion angle: H100° x V15°;
Nominal power: 90W;
Peak power: 360W;
Maximum sound pressure level: 121dB;
Audio input: Dante;
Operating mode: Class D;
Transmission bandwidth: 100M/1000M bps;
Connection socket: Single RJ-45;
Input interface: Dante network port (RJ45) × 1;
Power supply (Power Supply): POE power supply
Size: 125x139x224mm;
Net weight: 3.0kg;
Material: Aluminum profile;
Accessories: Wall bracket;
Function and characteristic



Technical Parameter
Frequency response
120Hz - 19KHz;
Component
2x4" full-range speakers;
Sensitivity
95dB;
Diffusion angle
H100° x V15°;
Nominal power
90W;
Peak power
360W;
Maximum sound pressure level
121dB;
Audio input
Dante;
Operating mode
Class D;
Transmission bandwidth
100M/1000M bps;
Connection socket
Single RJ-45;
Input interface
Dante network port (RJ45) × 1;
Power supply (Power Supply)
POE power supply
Size
125x139x224mm;
Net weight
3.0kg;
Material
Aluminum profile;
Accessories
Wall bracket;
