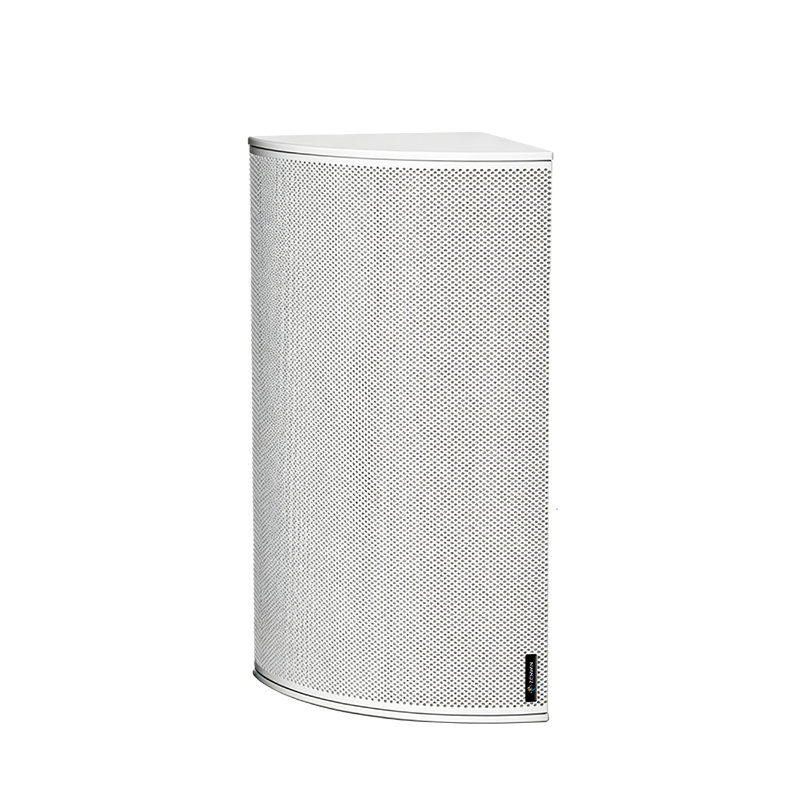

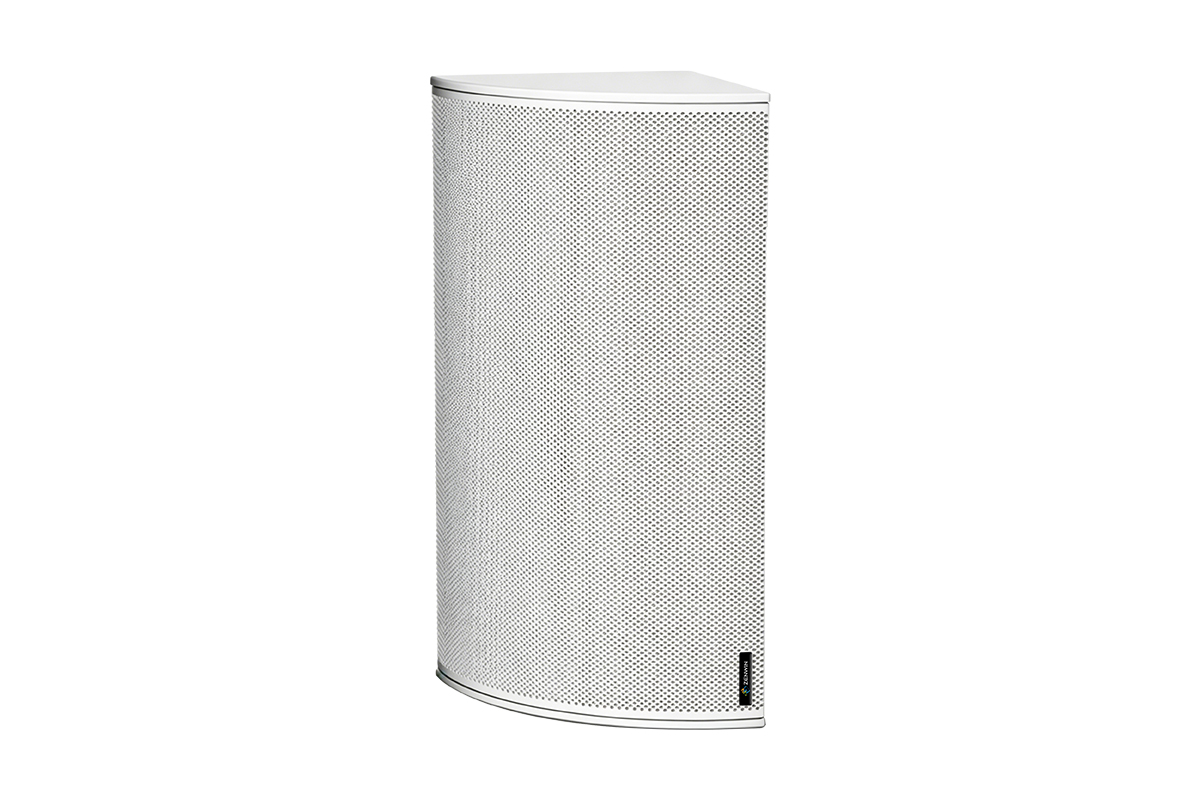

ZW-CWS24 Corner Wall Mount Speaker 120W
sketch:
Type: Full-range speaker;
Unit composition: 2×4" (100mm) / 1" (25mm) voice coil;
Frequency response: (+/-5dB) FrequencyResponse (+/-5dB) 82 - 18000Hz;
Coverage angle: Dispersion 100 ° × 100 °;
Sensitivity: (1m/1W) 95dB;
Output sound pressure level: 116dB continuous / 122dB peak;
Rated impedance: 16 Ohms;
Power: 120W AES 480W peak;
Recommended amplifier power: 200W - 400@8Ω;

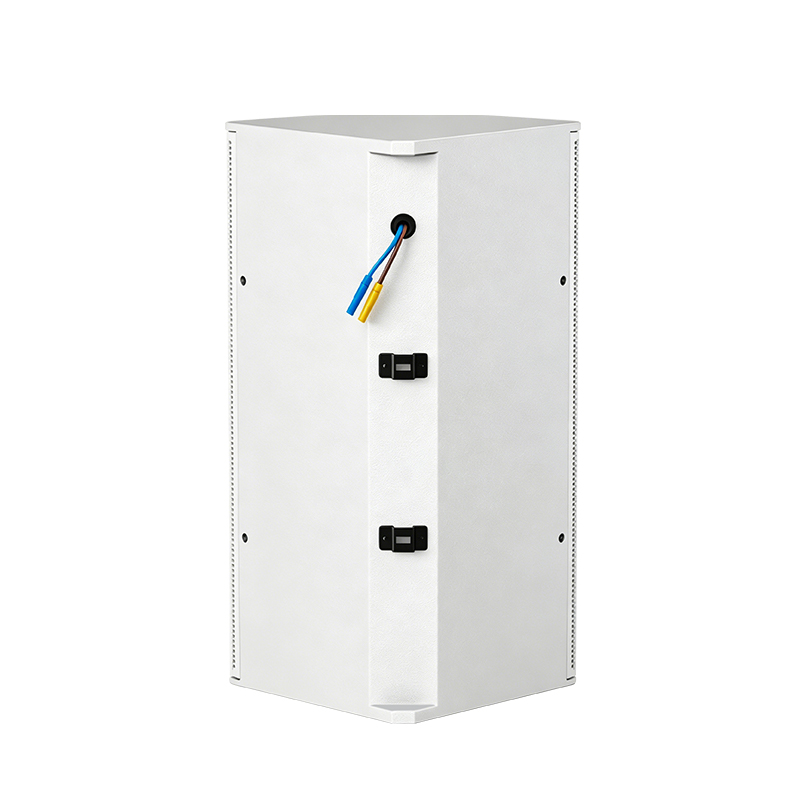

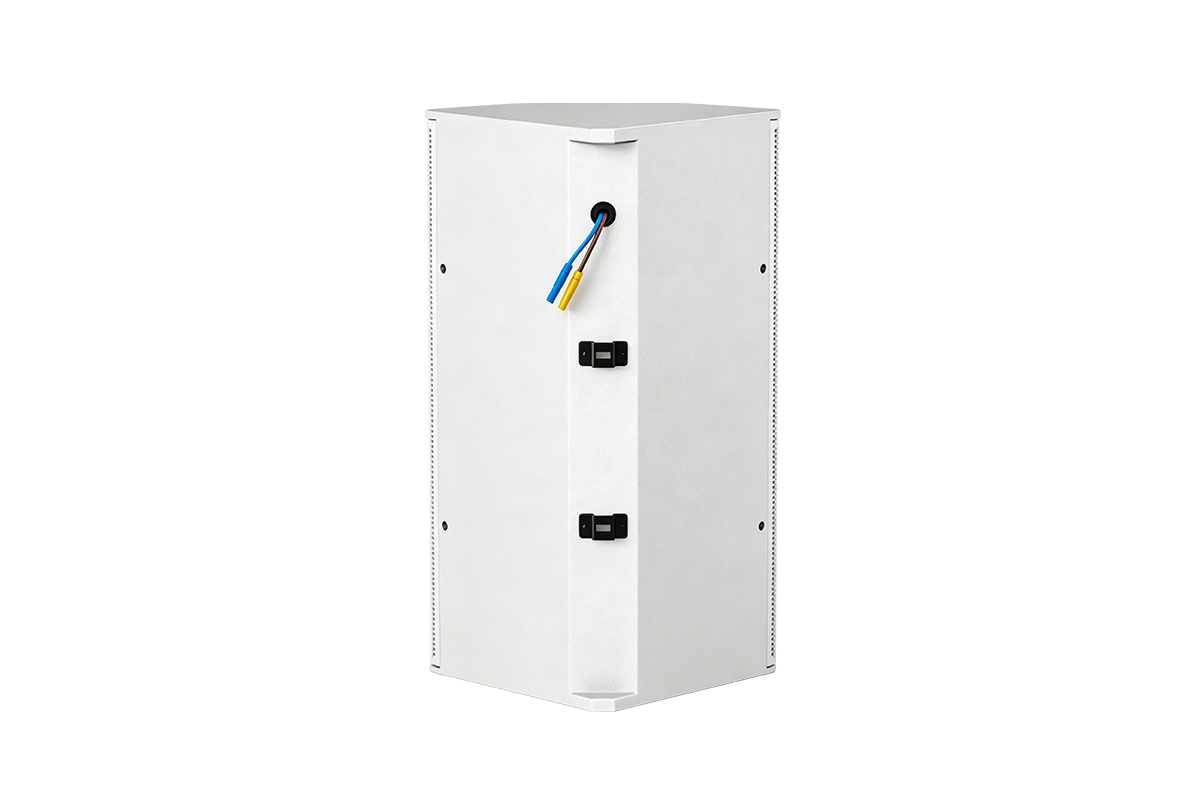

Input connector: 2-position terminal clips;
Product size (HxWxD): 330mm × 203mm × 138mm;
Packaging size (HxWxD): 265mm × 386mm × 261mm;
Net weight: 3.07kg;
Total packaging weight: 3.72kg;
Surface coating: White wear-resistant, environmentally friendly water-based glossy matte paint spraying;
overview Function and characteristic Technical Parameter
Type: Full-range speaker;
Unit composition: 2×4" (100mm) / 1" (25mm) voice coil;
Frequency response: (+/-5dB) FrequencyResponse (+/-5dB) 82 - 18000Hz;
Coverage angle: Dispersion 100 ° × 100 °;
Sensitivity: (1m/1W) 95dB;
Output sound pressure level: 116dB continuous / 122dB peak;
Rated impedance: 16 Ohms;
Power: 120W AES 480W peak;
Recommended amplifier power: 200W - 400@8Ω;
Input connector: 2-position terminal clips;
Product size (HxWxD): 330mm × 203mm × 138mm;
Packaging size (HxWxD): 265mm × 386mm × 261mm;
Net weight: 3.07kg;
Total packaging weight: 3.72kg;
Surface coating: White wear-resistant, environmentally friendly water-based glossy matte paint spraying;
Function and characteristic



Technical Parameter
Type
Full-range speaker;
Unit composition
2×4" (100mm) / 1" (25mm) voice coil;
Frequency response
(+/-5dB) FrequencyResponse (+/-5dB) 82 - 18000Hz;
Coverage angle
Dispersion 100 ° × 100 °;
Sensitivity
(1m/1W) 95dB;
Output sound pressure level
116dB continuous / 122dB peak;
Rated impedance
16 Ohms;
Power
120W AES 480W peak;
Recommended amplifier power
200W - 400@8Ω;
Input connector
2-position terminal clips;
Product size (HxWxD)
330mm × 203mm × 138mm;
Packaging size (HxWxD)
265mm × 386mm × 261mm;
Net weight
3.07kg;
Total packaging weight
3.72kg;
Surface coating
White wear-resistant, environmentally friendly water-based glossy matte paint spraying;
