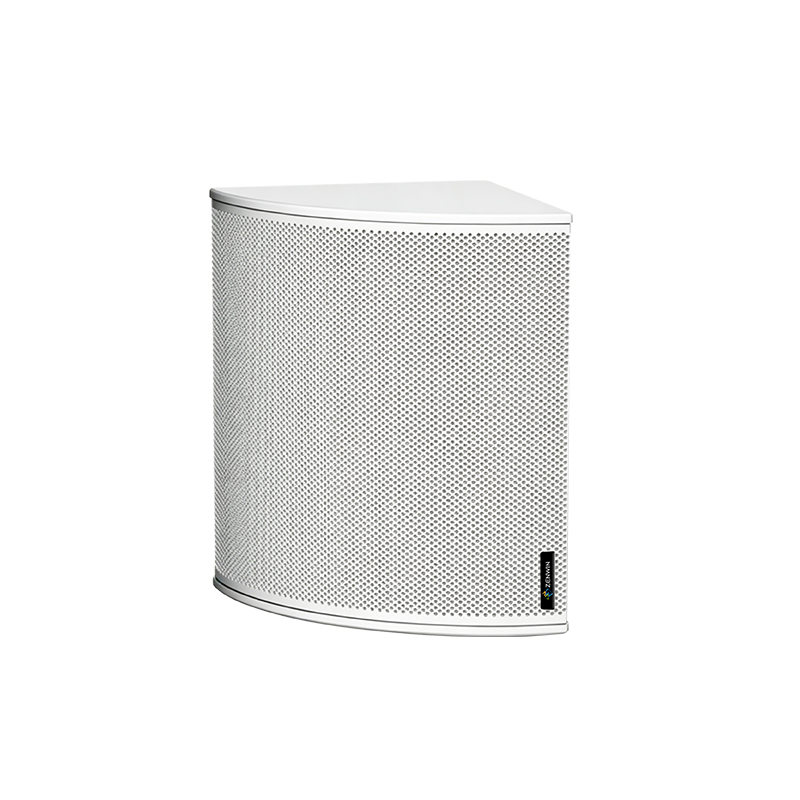

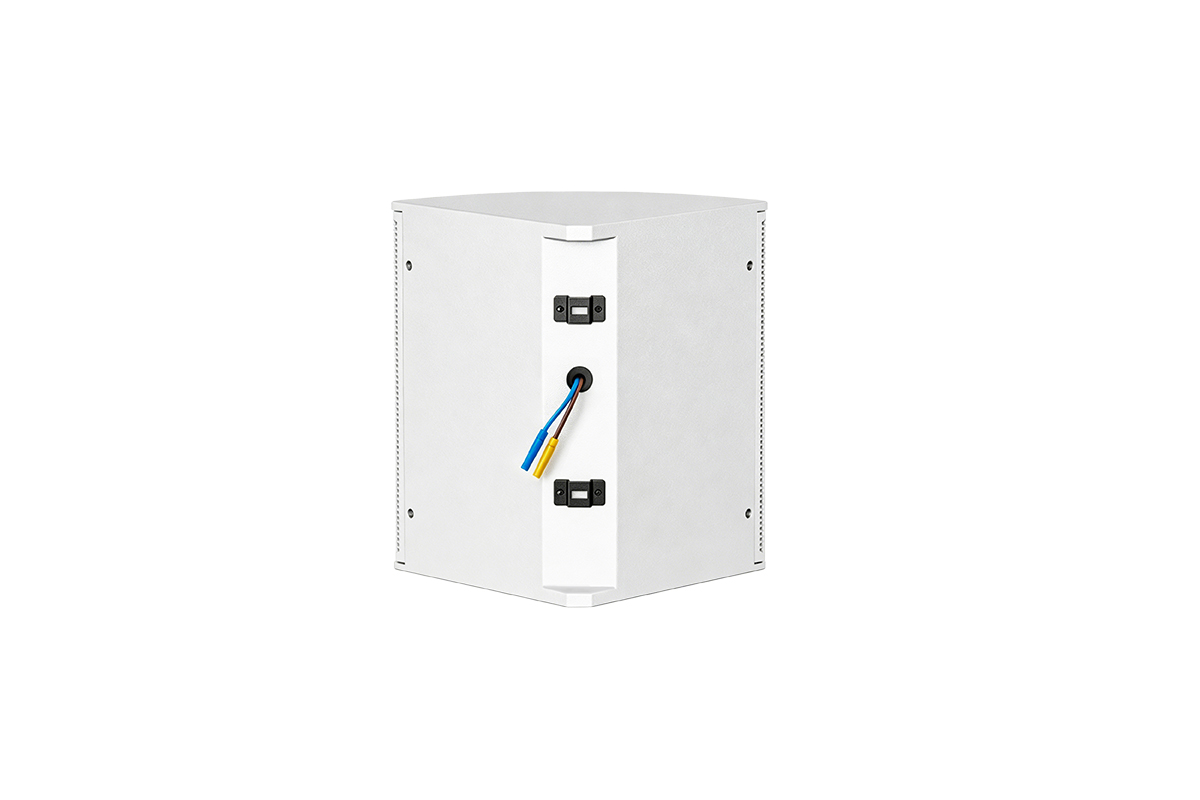

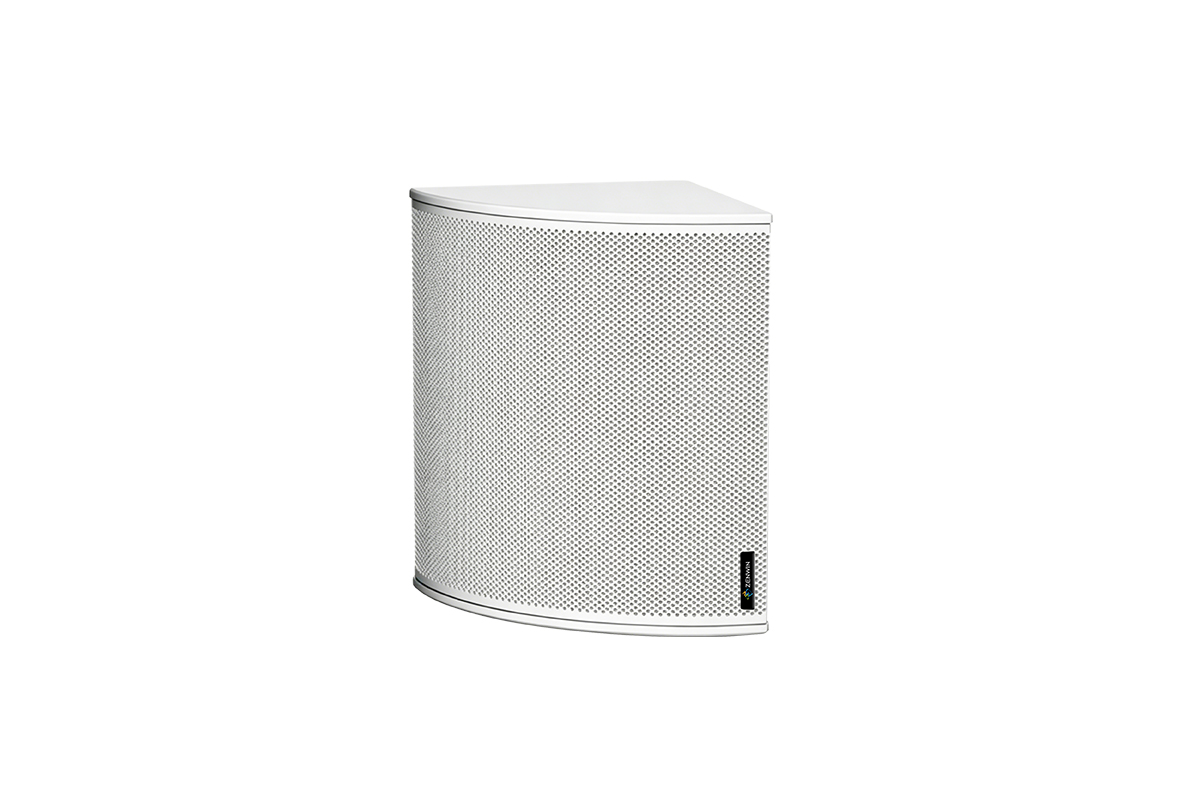

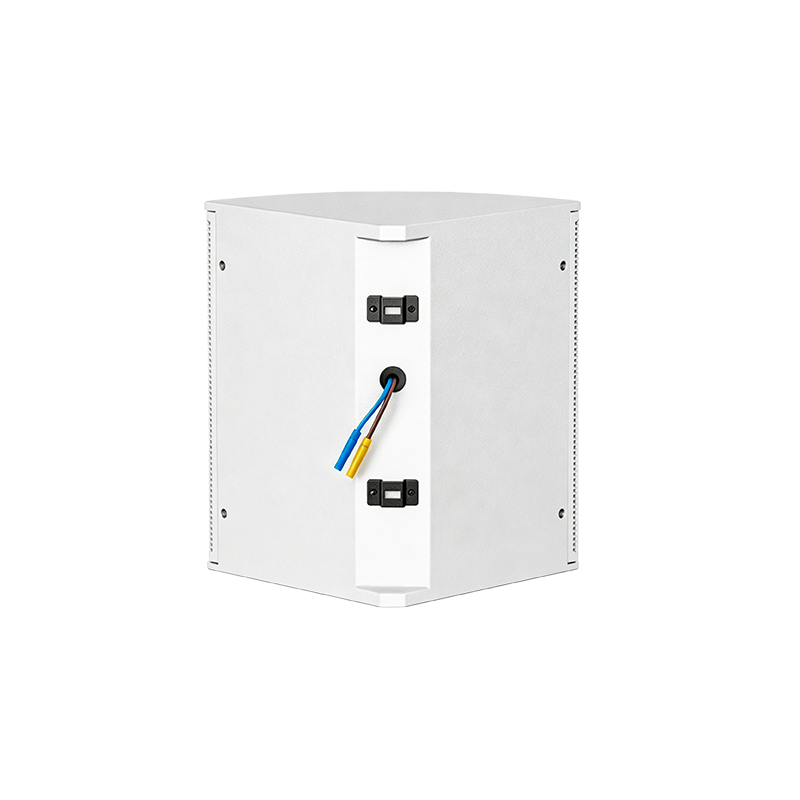

ZW-CWS14 Corner Wall Mount Speaker 60W
sketch:
Type: Full-range speaker;
Unit composition: 1×4″ (100mm) / 1″ (25mm) voice-coil
Frequency response: (+/-5dB) 85 - 18000Hz;
Coverage angle: 100 ° × 100 °;
Sensitivity (1m/1W): 92dB;
Output sound pressure level: 110dB continuous / 116dB peak;
Rated impedance: 8 Ohms;
Power: 60W AES 240W peak
Recommended amplifier power: 150W - 200W @ 8Ω;
Input connector: 2-position terminal clips;
Product size (H x W x D): 204mm × 203mm × 138mm;
Packaging size (H x W x D): 265mm × 386mm × 261mm;
Net weight: 1.82kg;
Total packaging weight: 4.56kg (2 units);
Surface coating: White wear-resistant, environmentally friendly water-based glossy matte paint spraying;
overview Function and characteristic Technical Parameter
Type: Full-range speaker;
Unit composition: 1×4″ (100mm) / 1″ (25mm) voice-coil
Frequency response: (+/-5dB) 85 - 18000Hz;
Coverage angle: 100 ° × 100 °;
Sensitivity (1m/1W): 92dB;
Output sound pressure level: 110dB continuous / 116dB peak;
Rated impedance: 8 Ohms;
Power: 60W AES 240W peak
Recommended amplifier power: 150W - 200W @ 8Ω;
Input connector: 2-position terminal clips;
Product size (H x W x D): 204mm × 203mm × 138mm;
Packaging size (H x W x D): 265mm × 386mm × 261mm;
Net weight: 1.82kg;
Total packaging weight: 4.56kg (2 units);
Surface coating: White wear-resistant, environmentally friendly water-based glossy matte paint spraying;
Function and characteristic



Technical Parameter
Type
Full-range speaker;
Unit composition
1×4″ (100mm) / 1″ (25mm) voice-coil
Frequency response
(+/-5dB) 85 - 18000Hz;
Coverage angle
100 ° × 100 °;
Sensitivity (1m/1W)
92dB;
Output sound pressure level
110dB continuous / 116dB peak;
Rated impedance
8 Ohms;
Power
60W AES 240W peak
Recommended amplifier power
150W - 200W @ 8Ω;
Input connector
2-position terminal clips;
Product size (H x W x D)
204mm × 203mm × 138mm;
Packaging size (H x W x D)
265mm × 386mm × 261mm;
Net weight
1.82kg;
Total packaging weight
4.56kg (2 units);
Surface coating
White wear-resistant, environmentally friendly water-based glossy matte paint spraying;
