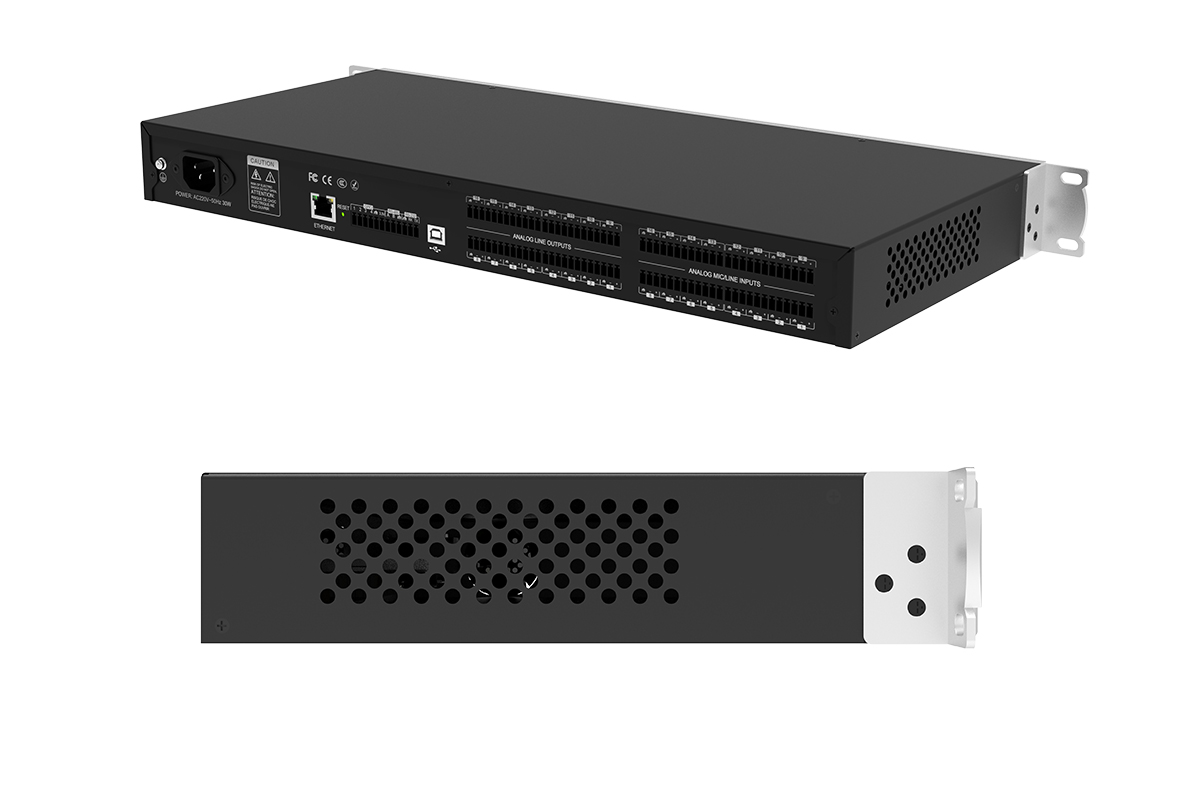

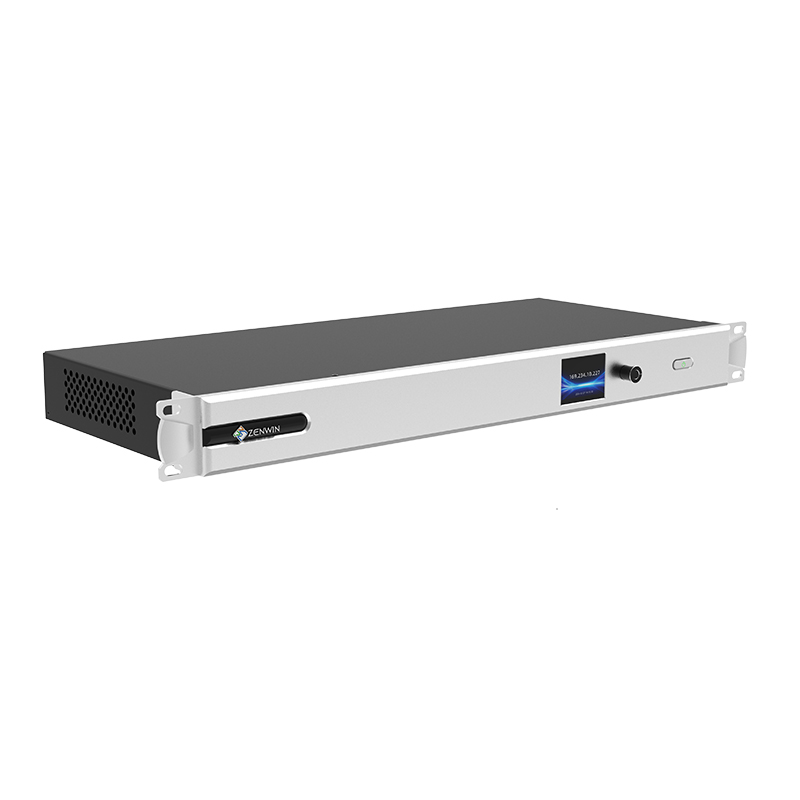

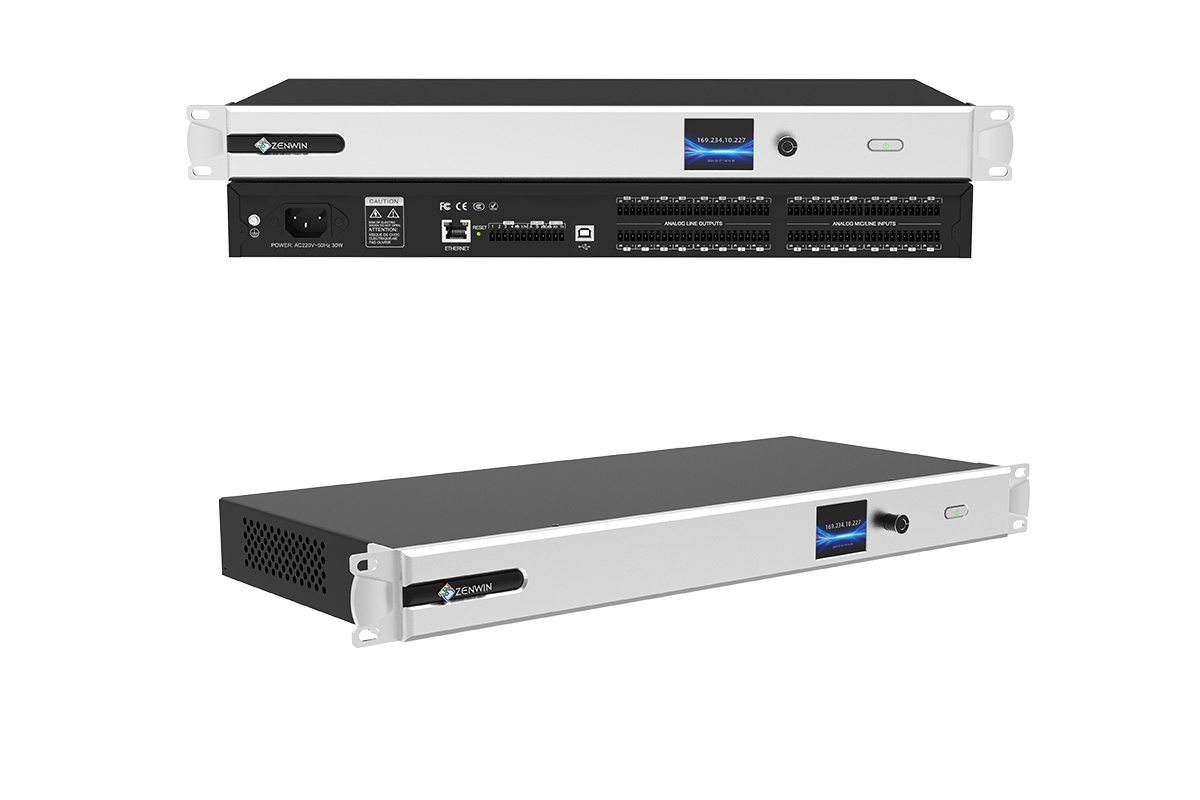

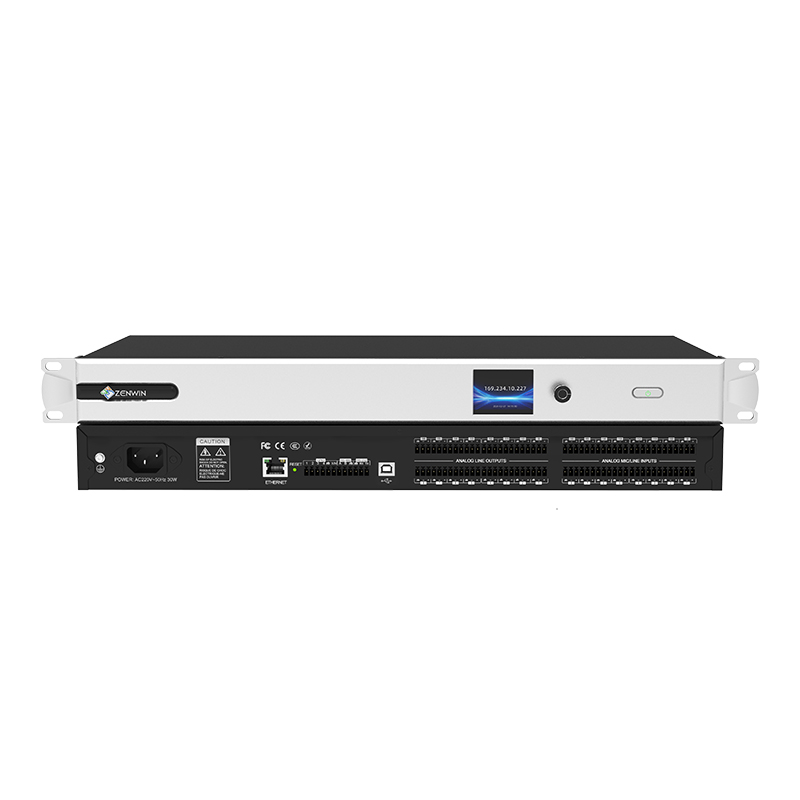

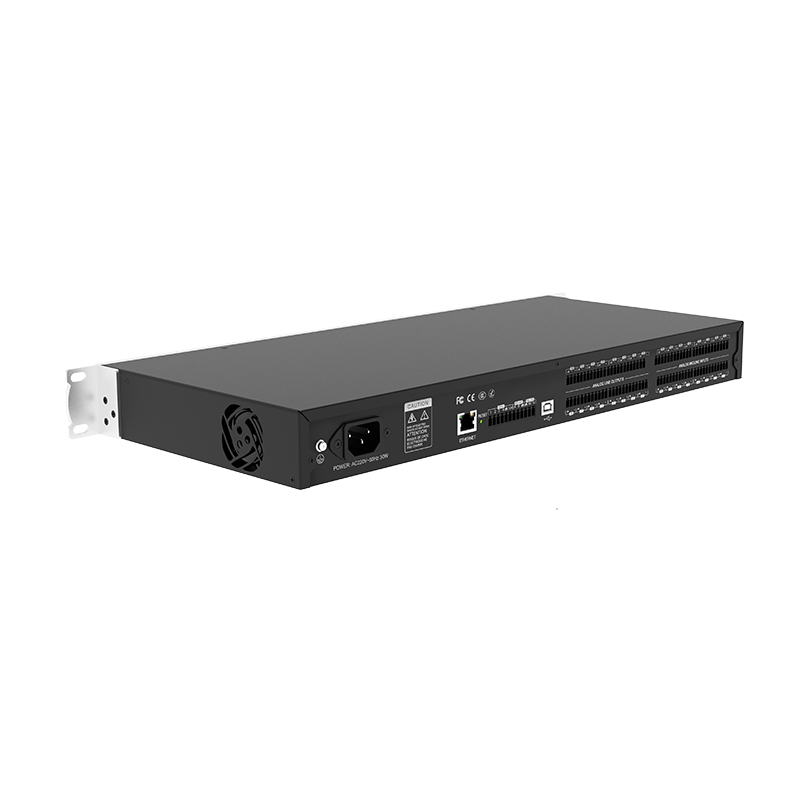

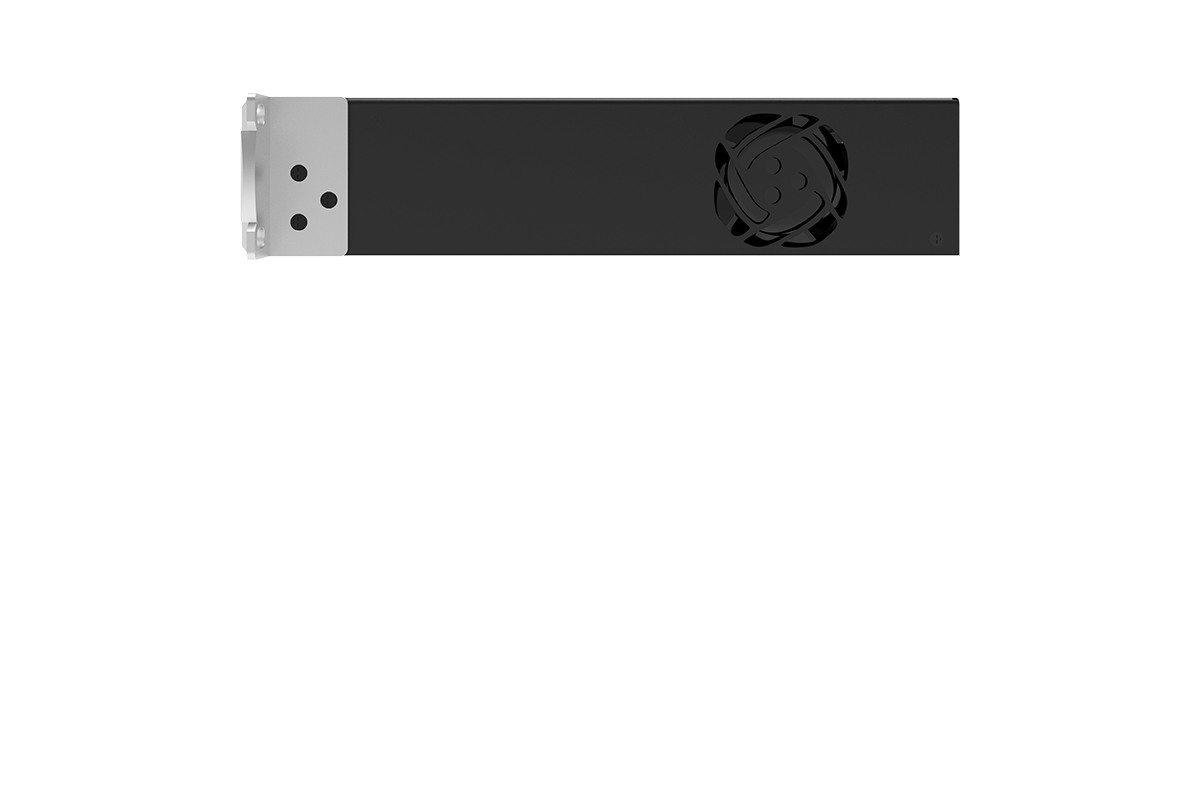

Dante Digital Processor TNP-1616
sketch：
The system enables seamless operation through IP-based access, supporting both PC and
mobile web interfaces for flexible cross-platform control. Its advanced audio engine features
parallel DSP processing, allowing AEC, AGC and multiple DSP modules to run simultaneously
per channel to ensure precise, high-quality sound. Full third-party integration supports volume, mute, routing, presets, and status subscription for smooth interaction with external control
platforms. Users can customize web interfaces without additional control hardware. An
integrated USB audio interface ensures compatibility with mainstream conferencing software. The system also provides 99 presets, log downloads, real-time DSP monitoring, and secure
password protection.
overview Function and characteristic Technical Parameter
The system enables seamless operation through IP-based access, supporting both PC and
mobile web interfaces for flexible cross-platform control. Its advanced audio engine features
parallel DSP processing, allowing AEC, AGC and multiple DSP modules to run simultaneously
per channel to ensure precise, high-quality sound. Full third-party integration supports volume, mute, routing, presets, and status subscription for smooth interaction with external control
platforms. Users can customize web interfaces without additional control hardware. An
integrated USB audio interface ensures compatibility with mainstream conferencing software. The system also provides 99 presets, log downloads, real-time DSP monitoring, and secure
password protection.
Function and characteristic


Technical Parameter
Analog I/O Channels
16x16;
Sample Rate / Bit Depth
48 kHz;
AD/DA bit depth
24 Bit;
Input gain
0/6/12/18/24/30/36/42/48 dB;
Input phantom power
+48V/10mA;
Frequency response (20~20kHz) +0.1/-0.6 dB;
Maximum level
+18 dBu;
THD+N
≤0.005% (1kHz, +4 dBuA weighted);
Equipment noise
≤-95 dBu (A weighted);
Input dynamic range
≥113 dB;
Output dynamic range
≥113 dB;
Input common mode rejection ratio
>47 dB (1kHz, 0 dBu);
Output crosstalk
-115 dB (1kHz, 0 dBu);
Input impedance (balanced connection)
5.4 KΩ;
Output impedance (balanced connection)
300 Ω;
System delay
≤3 ms;
Operating voltage
AC 200-240V, 50Hz;
Operating environment temperature
-15°C - 45°C;
Size (width x depth x height)
482 x 200 x 45 mm;
Weight (bare machine weight / gross weight)
2.8 kg / 3.8 kg;
