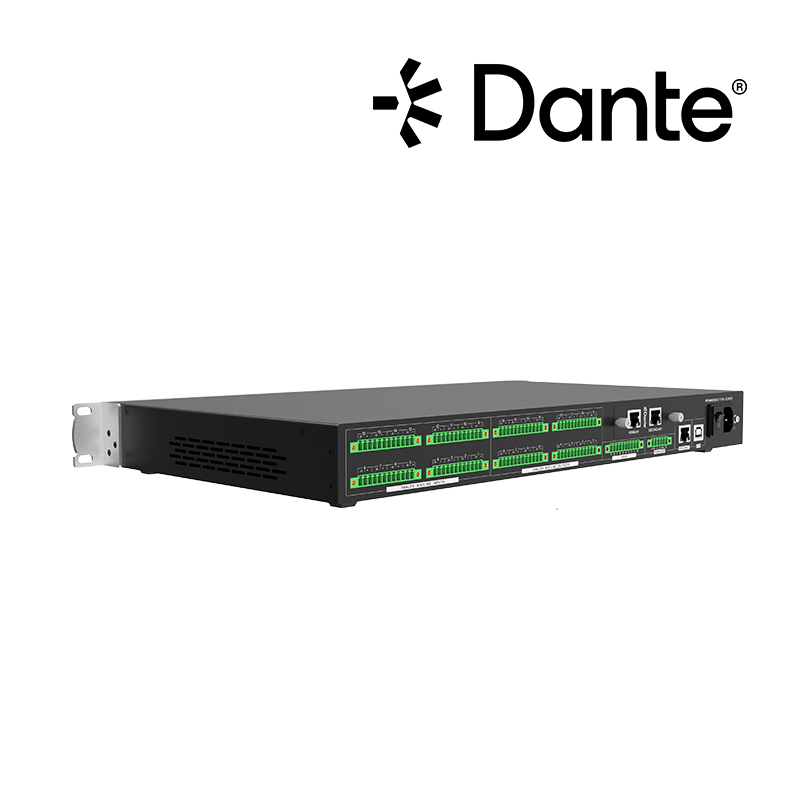

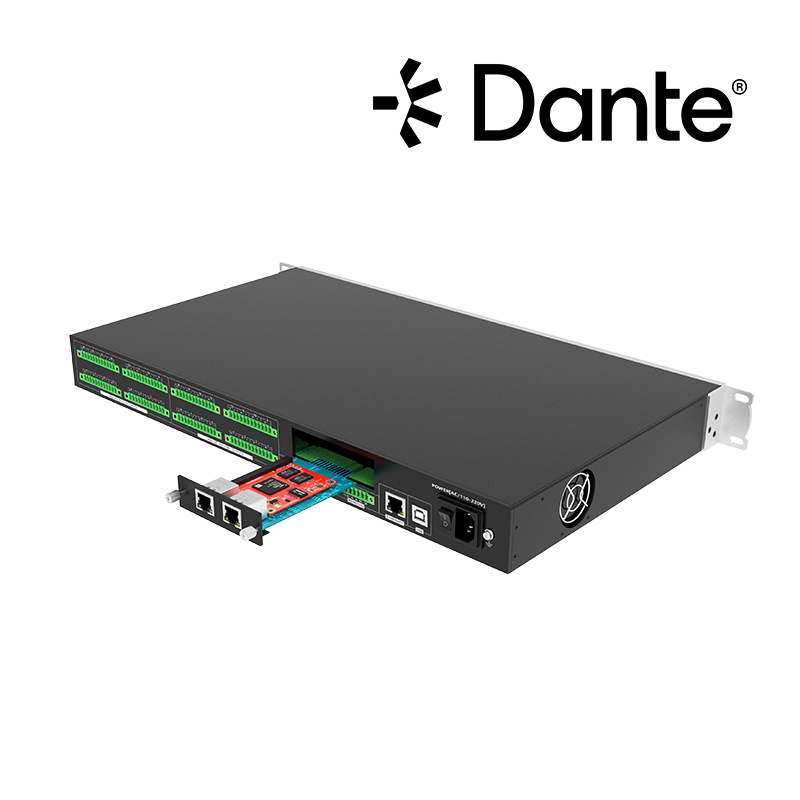

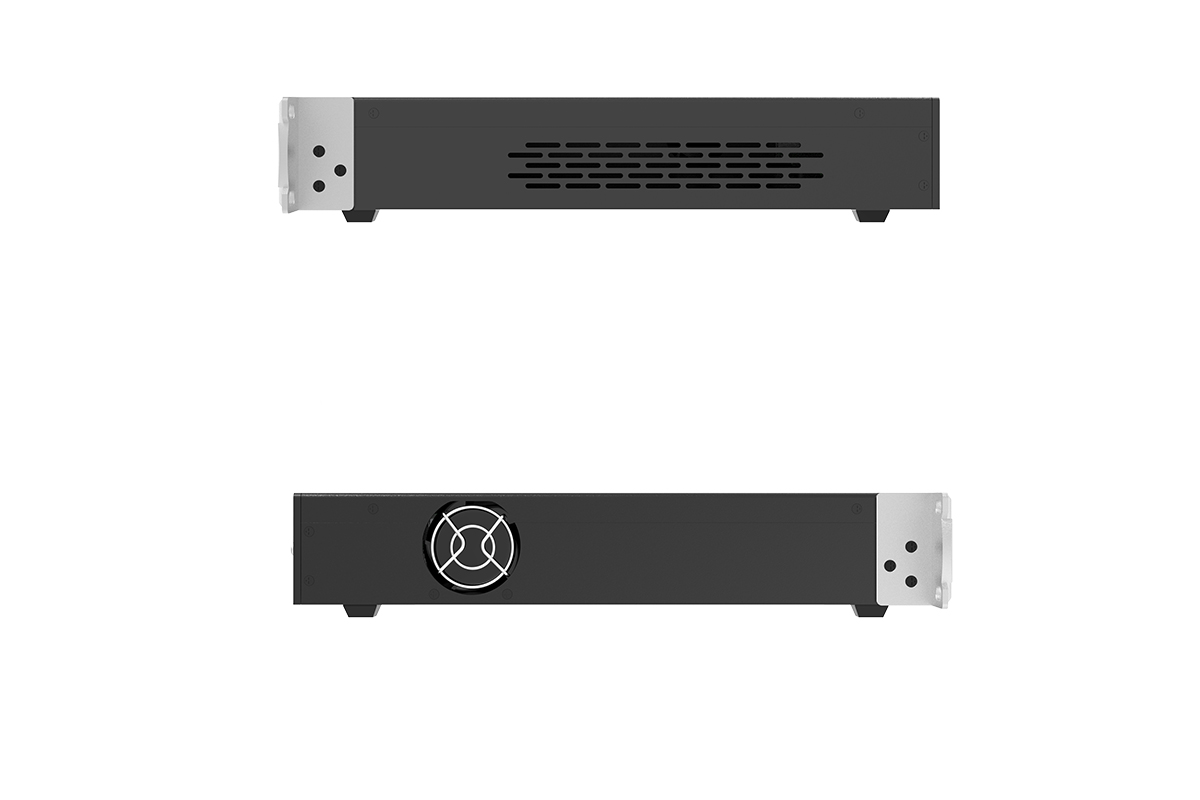

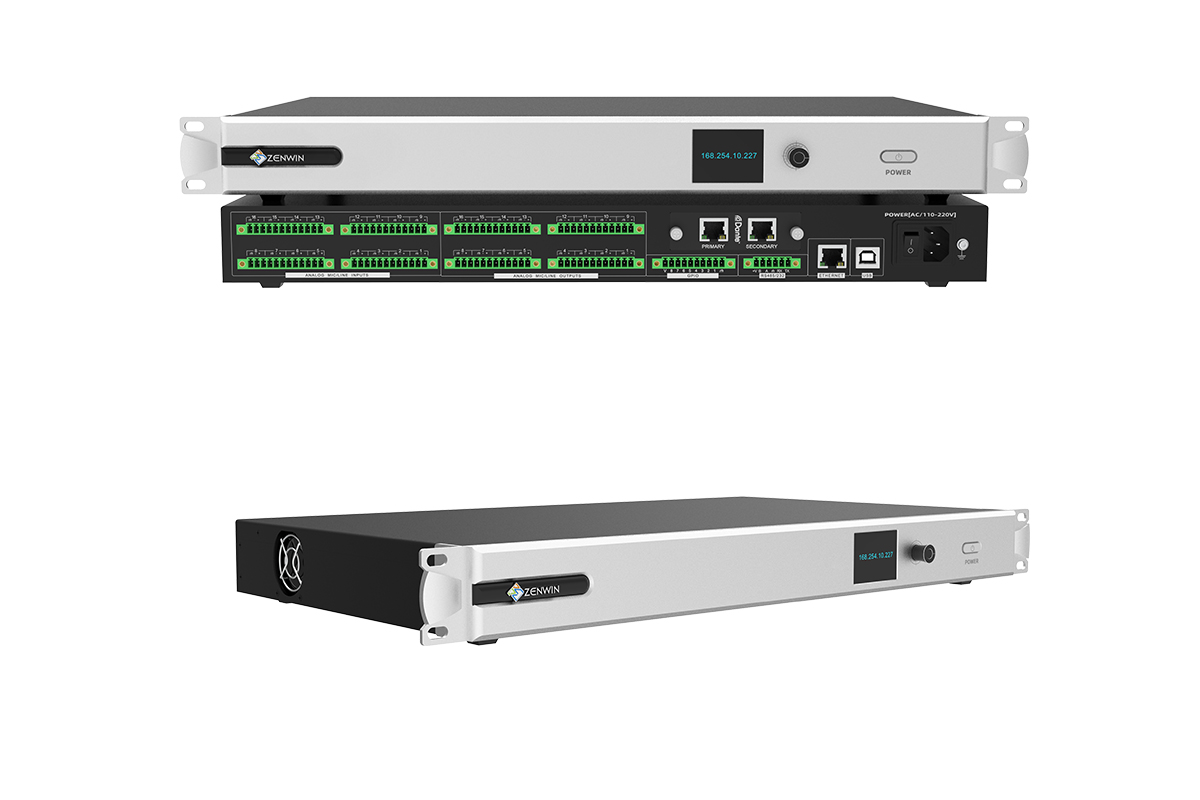

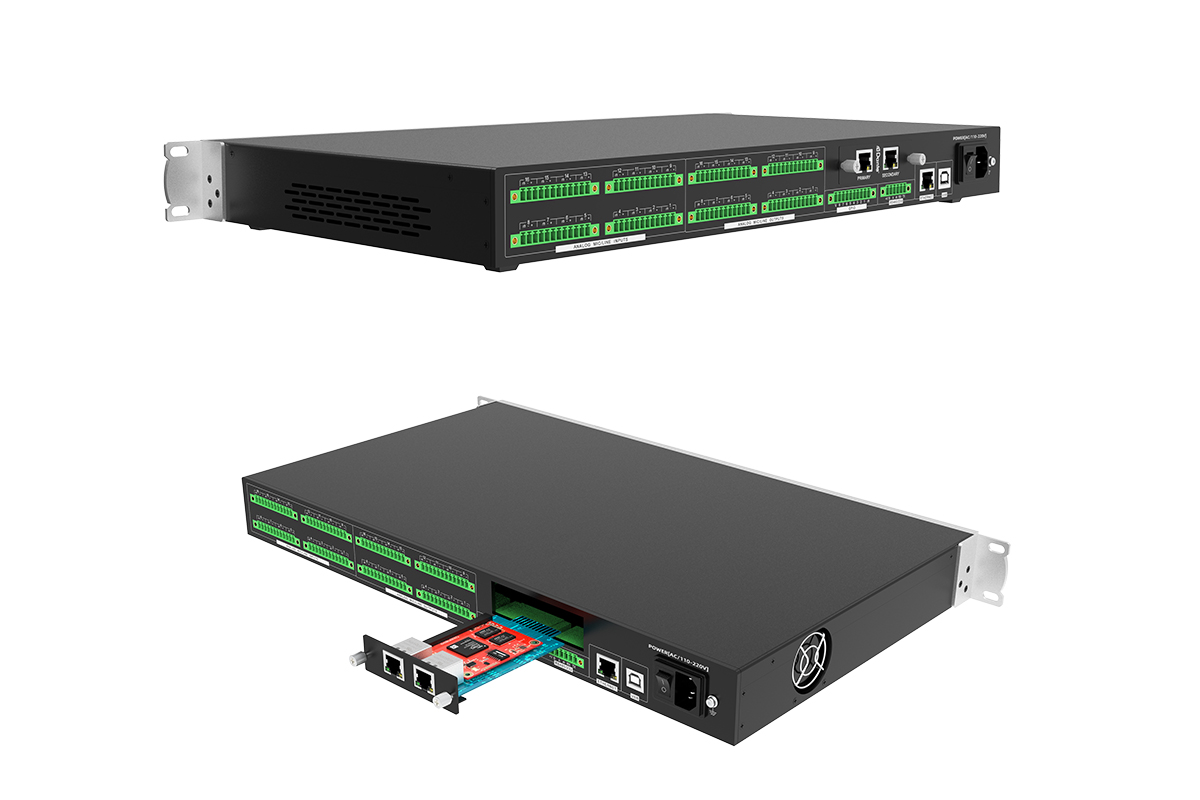

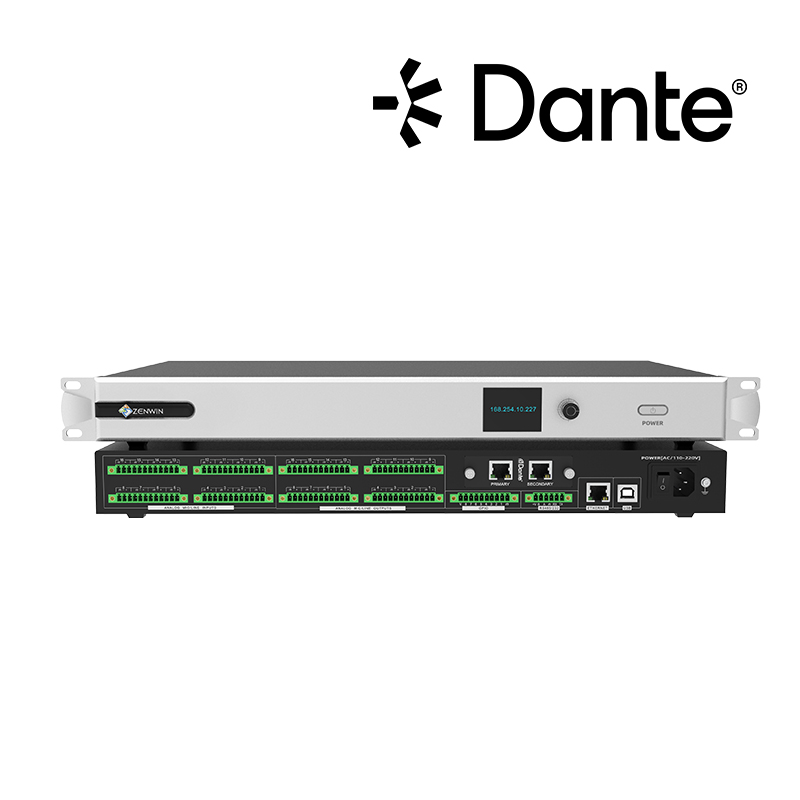

Dante Digital Processor TD-1616D
sketch：
The TD-1616D digital audio media matrix is a digital audio matrix with (16 channels of DANTE/16 channels of analog) audio. It adopts the industry-leading ADI DSP SHARC21489, with a maximum operating frequency of 450 MHz. The input and output modules of the DSP can be customized according to the on-site situation. Each channel has independent processing modules such as AFC, AEC, ANS, AGC, flare gain sharing, automatic mixing, threshold automatic mixing, etc., which can meet the needs of audio processors and transmission in various venues. At the same time, the front panel has a high-resolution graphic OLED display screen for displaying system status, controlling basic audio functions or complex logical events. Volume size/mute, preset selection, room combination, etc., are suitable for meeting rooms, multi-function halls, conference center auditoriums, administrative centers, etc.
overview Function and characteristic Technical Parameter
The TD-1616D digital audio media matrix is a digital audio matrix with (16 channels of DANTE/16 channels of analog) audio. It adopts the industry-leading ADI DSP SHARC21489, with a maximum operating frequency of 450 MHz. The input and output modules of the DSP can be customized according to the on-site situation. Each channel has independent processing modules such as AFC, AEC, ANS, AGC, flare gain sharing, automatic mixing, threshold automatic mixing, etc., which can meet the needs of audio processors and transmission in various venues. At the same time, the front panel has a high-resolution graphic OLED display screen for displaying system status, controlling basic audio functions or complex logical events. Volume size/mute, preset selection, room combination, etc., are suitable for meeting rooms, multi-function halls, conference center auditoriums, administrative centers, etc.
Function and characteristic


Technical Parameter
Analog/Digital Dynamic Range (A-weighting)
113 dB；
Digital/Analog Dynamic Range (A-weighting)
115 dB；
Input Gain
0/10/20/30/40/43 dB；
Output Level
0/-6 dB；
Sampling Rate/Quantization Bit
48K , 24-bit ；
Inputs
5/8/12 sections (optional) PEQ/AFC/AEC/ANS/AGC/Auto Mixer；
Outputs
Filter; 5/8/12 sections PEQ, Delayer; Limiter；
Frequency Response
20 - 20 kHz (±0.2 dB)；
Common Mode Suppression
@ 60 Hz 80 dBu；
Maximum Level
+24 dBu；
Total Harmonic Distortion
0.003% @ 4 dBu；
Background Noise (A-weighting - Analog)
-89 dBu；
Background Noise (A-weighting - Dante)
-91 dBu；
Interfaces
Common 8 GPIO、inputs and outputs; 1 RS232/RS485; 1 RJ45 control interface; 1 USB interface；
Balanced Input/Output
16 inputs, 16 outputs (Phoenix connector)；
DANTE Port
2；
Input Impedance (Balanced Connection)
9.4 KΩ；
Input Impedance (Balanced Connection)
102 Ω；
Phantom Power
48 V；
Operating Power
AC 110 - 240 V, 50 Hz/60 Hz；
